Pipe Fusion Machine V1200

Model: V1200

Item specifics

Welding Range in mm: 630-1200mm

Welding Range in inch: 24" - 48" IPS

Power Supply: 380V±10%, 50/60 HZ

Standard Applied: ISO21307, DVS2207/1, ASTM F2620 etc.

Certificate: CE, ISO9001

Tempreture Range: MAX. 320 ºC

Working Pressure Range: 0 - 160 BAR

Review

Description

Detail Information

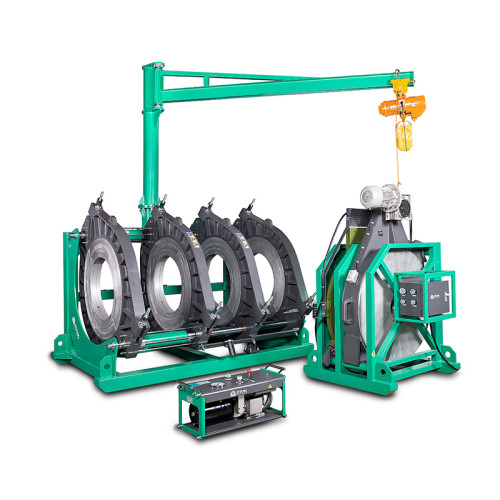

Pipe Fusion Machine V1200 Introduction

The RIYANG V1200 Butt Fusion Welding Machine offers precise, reliable performance across a wide range of demanding applications. It is ideal for water supply systems, gas distribution networks, industrial pipelines, and mining operations, ensuring strong, leak-free joints. With its robust design and consistent welding quality, the V1200 is built to perform in tough environments and meet the highest standards of reliability and efficiency.

Pipe Fusion Machine V1200 Features

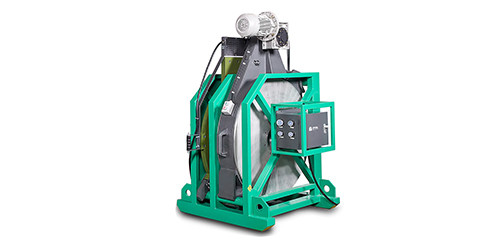

Reliable Heating Plate & Efficient Trimmer

The Teflon-coated heating plate minimizes plastic adhesion and keeps temperature variation under 7°C. Its stainless steel junction box resists corrosion. With a powerful electric drill and ergonomic handle, the trimmer provides efficient and comfortable pipe milling.

Enhanced Chassis Strength

The robust and compact chassis resists deformation and oil leaks, even under the stress of handling thick pipes in challenging environments. It features high-quality hydraulic parts sourced from top suppliers in Germany, Italy, and Japan, guaranteeing superior performance.

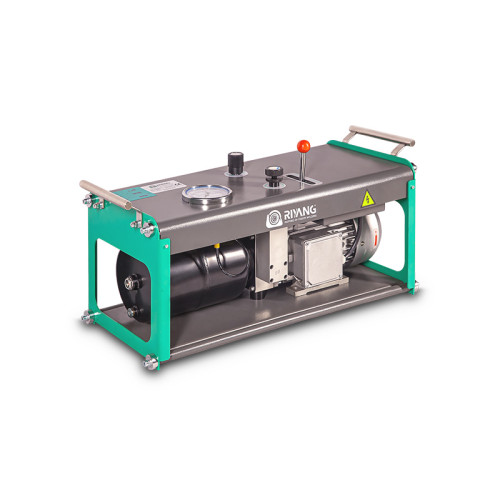

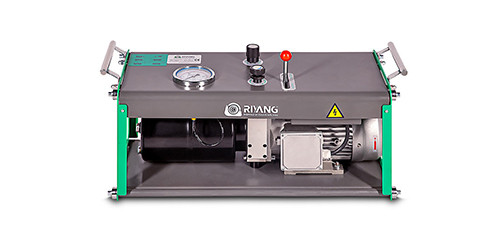

High-Efficiency Power System

The power station delivers powerful hydraulic pressure up to 120 bar and features cartridge valves for easy maintenance. Its durable, compact design offers accurate temperature control and a quick-release mechanism for convenient servicing and dependable performance.

Pipe Fusion Machine V1200 Technical Parameters

Product model	V1200
Welding Range O.D.	630-1200mm
Welding Range Inch	24" - 48" IPS
Heater Power	21.5 KW
Trimmer Power	4.0 KW
Pump Power	2.2 KW
Working Pressure Range	0 - 160 BAR

Power supply	380V±10%, 50/60 HZ
Gross Weight	3295 KGS
Packing Material	Plywood Box
Max. HeatingTemperature	320°C

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
