Pipe Fusion Machine V630

Model: V630

Item specifics

Welding Range in mm: 315-630mm

Welding Range in inch: 12" - 24" IPS

Power Supply: 380V±10%, 50/60 HZ

Standard Applied: ISO21307, DVS2207/1, ASTM F2620 etc.

Certificate: CE, ISO9001

Tempreture Range: MAX. 320 ºC

Working Pressure Range: 0 - 120 BAR

Review

Description

Detail Information

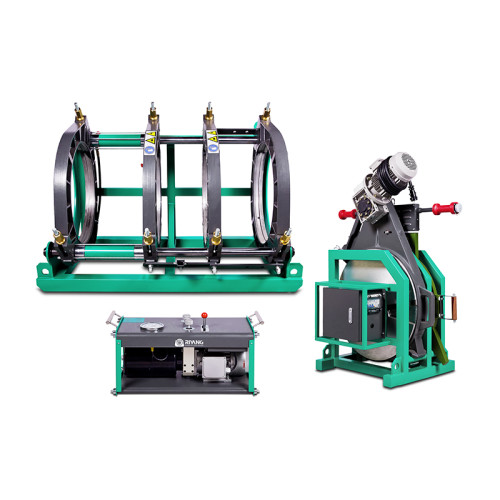

Pipe Fusion Machine V630 Introduction

The V630 Butt Fusion Welding Machine from RIYANG is engineered for precise and reliable welding across demanding sectors, including water supply, gas distribution, industrial pipelines, and mining, delivering secure, leak-free, and durable thermoplastic pipe connections essential for critical infrastructure.

Pipe Fusion Machine V630 Features

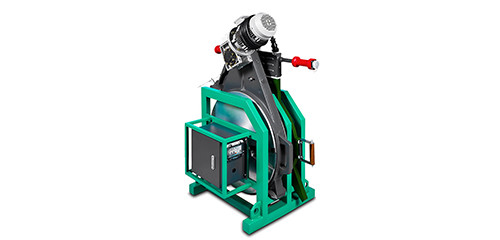

Precision Heating & Trimming

The heating plate features premium Teflon coating for minimal plastic adhesion and long service life, with temperature variation kept under 5°C. A corrosion-resistant stainless steel junction box, powerful electric trimmer, and ergonomic handle ensure reliable, safe, and efficient operation.

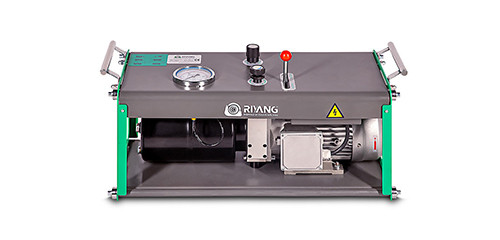

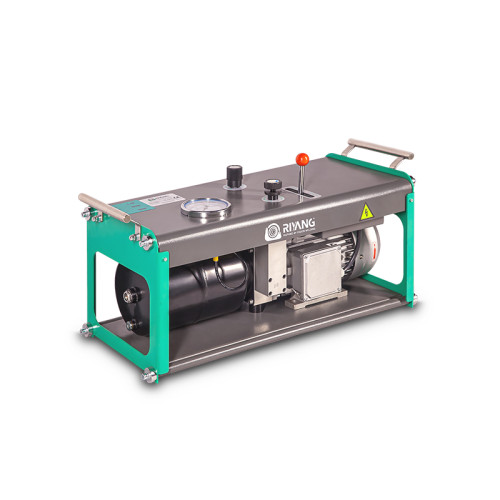

High-Performance Power Station

The power station delivers strong hydraulic output up to 120 bar, with cartridge valves for easy maintenance. Its precise temperature control ensures welding accuracy, while the compact, durable frame and quick-detach design support stability and fast servicing.

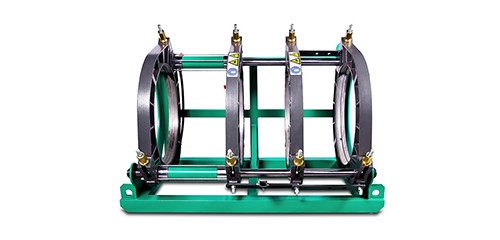

Durable Machine Chassis

The compact and robust chassis is built to resist deformation and oil leakage under extreme pipe-handling conditions, with core hydraulic components sourced from top suppliers in Germany, Italy, and Japan for reliable performance.

Pipe Fusion Machine V630 Technical Parameters

Product model	V630
Welding Range O.D.	315-630mm
Welding Range Inch	12" - 24" IPS
Heater Power	9.3 KW
Trimmer Power	1.5 KW
Pump Power	1.5KW
Working Pressure Range	0 - 120 BAR

Power supply	380V±10%, 50/60 HZ
Gross Weight	739 KGS
Packing Material	Plywood Box
Max. HeatingTemperature	320°C

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
