Pipe Fusion Machine V500

Model: V500

Item specifics

Welding Range in mm: 200-500mm

Welding Range in inch: 8" - 20" IPS

Power Supply: 380V±10%, 50/60 HZ

Standard Applied: ISO21307, DVS2207/1, ASTM F2620 etc.

Certificate: CE, ISO9001

Tempreture Range: MAX. 320 ºC

Working Pressure Range: 0 - 120 BAR

Review

Description

Detail Information

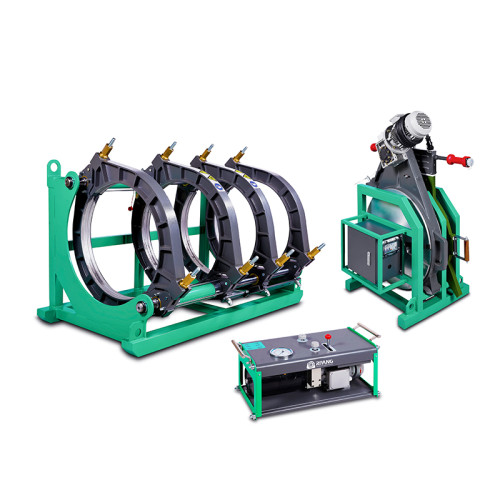

Pipe Fusion Machine V500 Introduction

The RIYANG V500 Butt Fusion Welding Machine is built to deliver precise, consistent fusion welding for a wide range of demanding applications. From water supply and gas distribution to industrial pipelines and mining operations, it ensures secure, durable, and leak-free joints for various thermoplastic pipes, even under the toughest conditions.

Pipe Fusion Machine V500 Features

Precision Heating & Trimming

The heating plate features premium Teflon coating for minimal plastic adhesion and consistent temperature control within 5°C. A corrosion-resistant stainless steel junction box, powerful electric trimmer, and ergonomic handle ensure efficient, safe, and long-lasting operation.

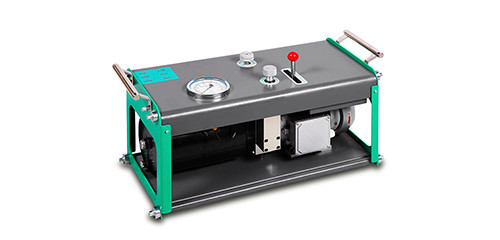

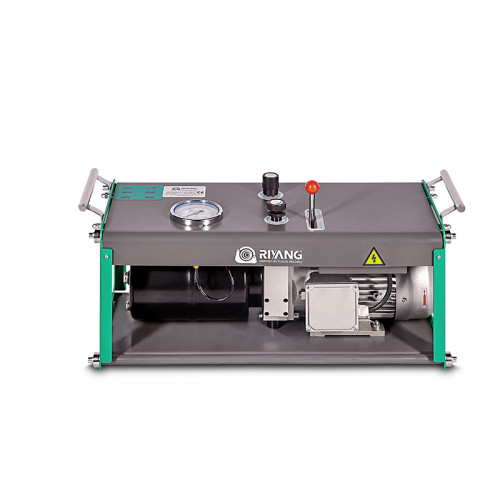

High-Performance Power Station

The power station delivers strong hydraulic pressure up to 120 bar, with cartridge valves for easy maintenance, precise temperature control for consistent welding quality, and a compact, durable frame designed for quick servicing and resistance to deformation.

Reinforced Chassis Design

The compact and durable machine chassis is engineered to withstand deformation and prevent oil leakage under extreme pipe-handling conditions, with high-quality hydraulic components sourced from top suppliers in Germany, Italy, and Japan.

Pipe Fusion Machine V500 Technical Parameters

Product model	V500
Welding Range O.D.	200-500mm
Welding Range Inch	8" - 20" IPS
Heater Power	7.3 KW
Trimmer Power	1.5 KW
Pump Power	1.5KW
Working Pressure Range	0 - 120 BAR

Power supply	380V±10%, 50/60 HZ
Gross Weight	611 KGS
Packing Material	Plywood Box
Max. HeatingTemperature	320°C

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
