Pipe Fusion Machine V200

Model: V200

Item specifics

Welding Range in mm: 63-200mm

Welding Range in inch: 2" - 6" IPS

Power Supply: 220V±10%, 50/60HZ

Standard Applied: ISO21307, DVS2207/1, ASTM F2620 etc.

Certificate: CE, ISO9001

Tempreture Range: MAX. 320 ºC

Working Pressure Range: 0 - 80 BAR

Review

Description

Detail Information

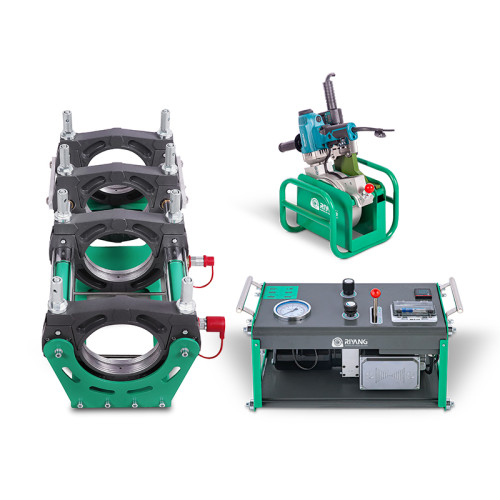

Pipe Fusion Machine V200 Introduction

The RIYANG V200 butt fusion welding machine is engineered for high-performance and precision across a wide range of applications. From water supply and gas distribution to industrial and mining pipelines, it ensures strong, leak-free joints in thermoplastic piping systems. Its durability and reliability make it an ideal choice for demanding environments where secure connections are critical.

Pipe Fusion Machine V200 Features

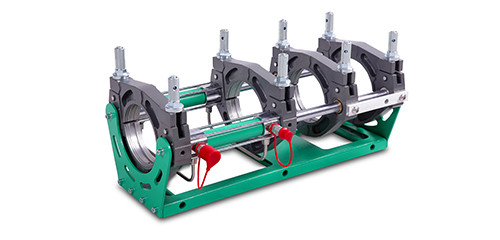

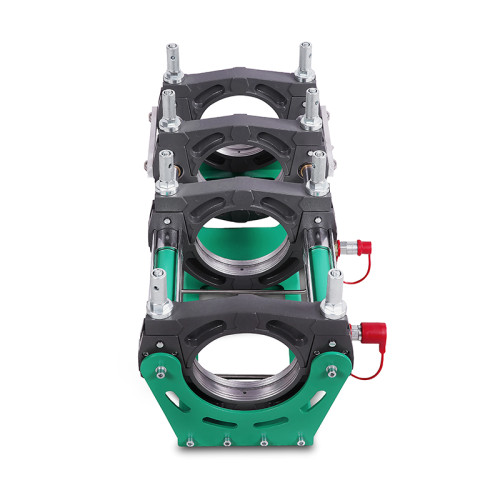

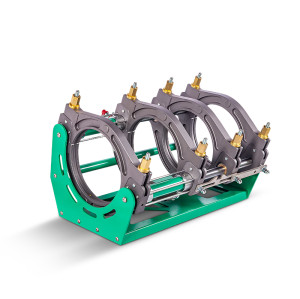

Durable & Service-Friendly Chassis

The compact, reinforced frame resists deformation and leakage under heavy loads. Its quick-detach design allows fast maintenance, while key hydraulics from Germany, Italy, and Japan ensure reliability.

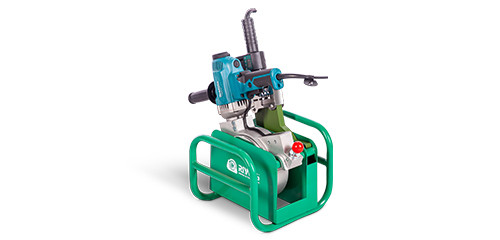

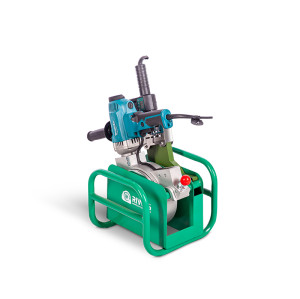

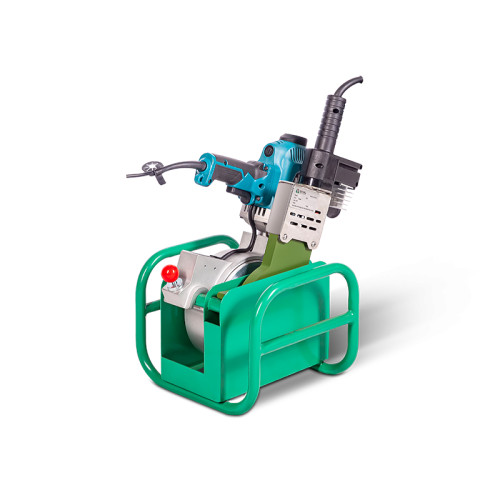

Reliable Heating & Trimming

Teflon-coated heating plate ensures low adhesion and stable heat (<3°C deviation). Stainless steel junction box resists corrosion. Powerful trimmer with ergonomic handle offers efficient, long-lasting performance.

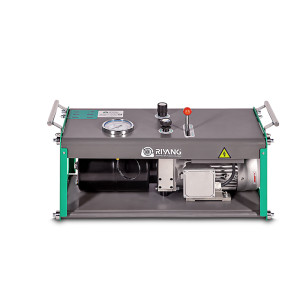

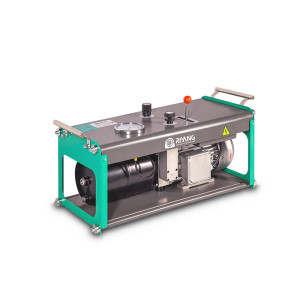

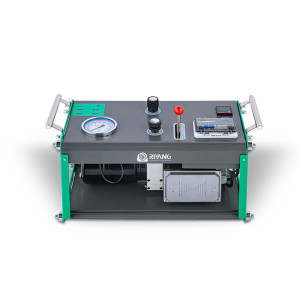

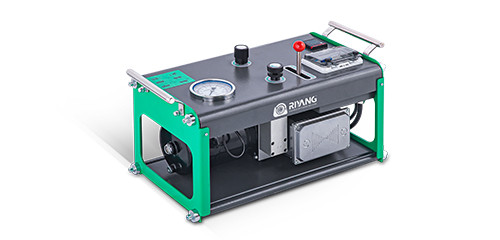

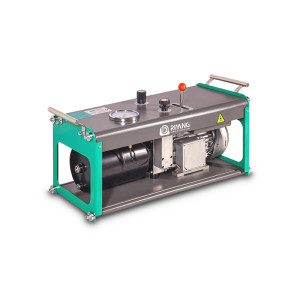

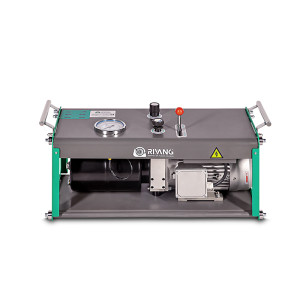

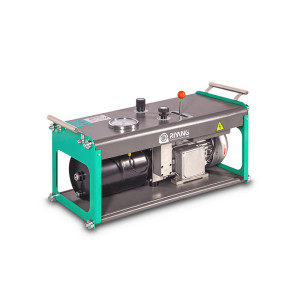

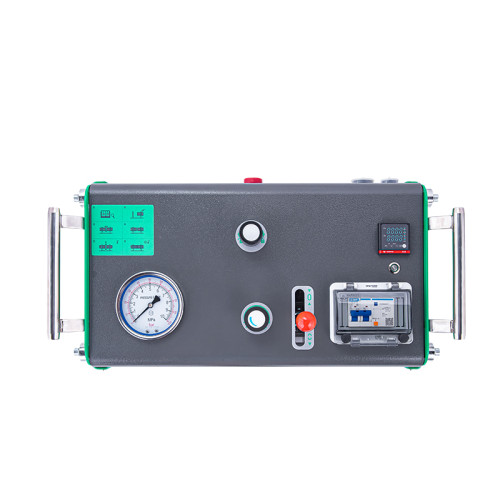

Powerful & Precise Station

Delivers up to 80 bar hydraulic pressure with easy-to-maintain cartridge valves. Precise temperature control ensures weld quality, while the compact, durable frame allows quick servicing and resists deformation.

Pipe Fusion Machine V200 Technical Parameters

Product model	V200
Welding Range O.D.	63-200mm
Welding Range Inch	2" - 6" IPS
Heater Power	1.5 KW
Trimmer Power	0.75 KW
Pump Power	1.1 KW
Working Pressure Range	0 - 80 BAR

Power supply	220V±10%, 50/60HZ
Gross Weight	156 KGS
Packing Material	Plywood Box
Max. HeatingTemperature	320°C

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
