Pipe Fusion Machine V160

Model: V160

Item specifics

Welding Range in mm: 50-160mm

Welding Range in inch: 2" - 6" IPS

Power Supply: 220V±10%, 50/60HZ

Standard Applied: ISO21307, DVS2207/1, ASTM F2620 etc.

Certificate: CE, ISO9001

Tempreture Range: MAX. 280 ºC

Working Pressure Range: 0 - 80 BAR

Review

Description

Detail Information

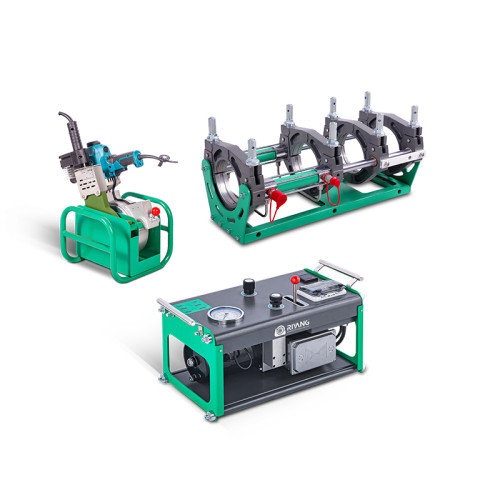

Pipe Fusion Machine V160 Introduction

The RIYANG V160 Butt Fusion Welding Machine offers high-precision, reliable welding for thermoplastic pipes across diverse applications—including water supply, gas distribution, industrial systems, and mining—ensuring strong, leak-free, and long-lasting joints even in the most demanding environments.

Pipe Fusion Machine V160 Features

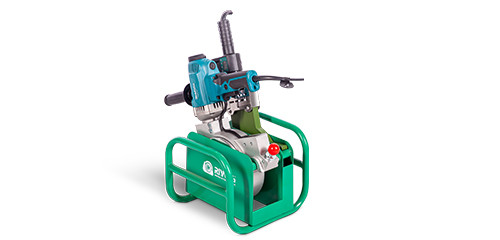

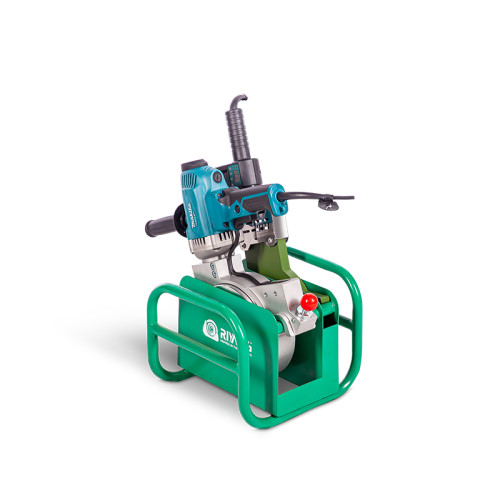

Durable Heating & Trimming Unit

Teflon coating minimizes adhesion and ensures even heating (<3°C variance). A stainless steel junction box resists corrosion, while a high-power drill provides efficient milling. The ergonomic handle adds comfort during operation.

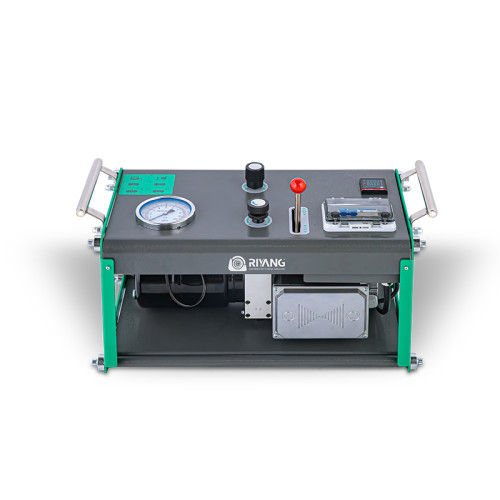

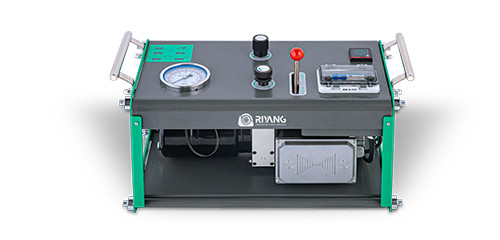

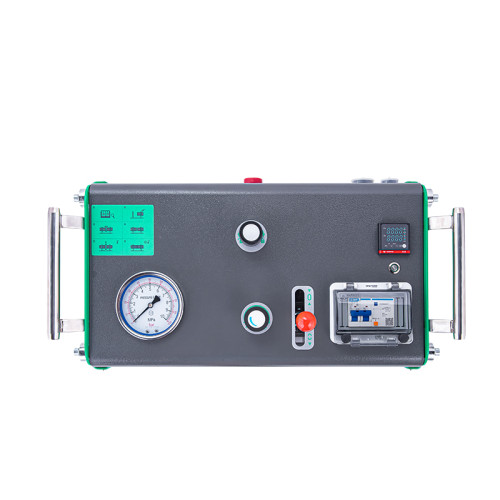

Compact & Reliable Power Unit

Provides up to 80 bar pressure with cartridge valves for easy maintenance, accurate temperature control, and a robust frame for lasting performance and quick servicing.

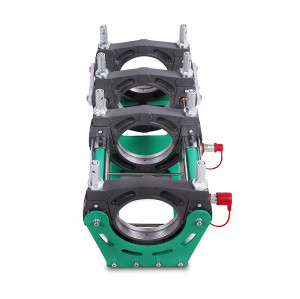

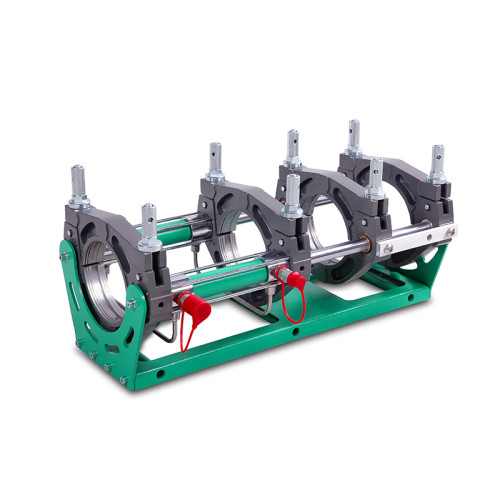

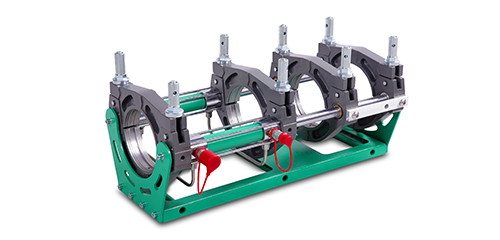

Durable Frame with Easy Maintenance

The compact, durable frame resists deformation and oil leaks under heavy loads. Its quick-detach design enables fast servicing, with key hydraulics sourced from top German, Italian, and Japanese brands.

Pipe Fusion Machine V160 Technical Parameters

Product model	V160
Welding Range O.D.	50-160mm
Welding Range Inch	2" - 6" IPS
Heater Power	1.0 KW
Trimmer Power	0.75 KW
Pump Power	1.1 KW
Working Pressure Range	0 - 80 BAR

Power supply	220V±10%, 50/60HZ
Gross Weight	133 KGS
Packing Material	Plywood Box
Max. HeatingTemperature	280°C

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
