Pipe Fusion Machine V800

Model: V800

Item specifics

Welding Range in mm: 500-800mm

Welding Range in inch: 20" - 30" IPS

Power Supply: 380V±10%, 50/60 HZ

Standard Applied: ISO21307, DVS2207/1, ASTM F2620 etc.

Certificate: CE, ISO9001

Tempreture Range: MAX. 320 ºC

Working Pressure Range: 0 - 120 BAR

Review

Description

Detail Information

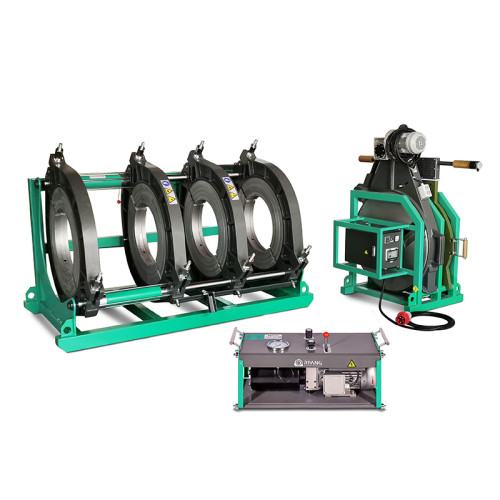

Pipe Fusion Machine V800 Introduction

The V800 Butt Fusion Welding Machine from RIYANG offers precise and reliable fusion welding, meeting the demanding needs of diverse industries. It is ideal for securely joining thermoplastic pipes in water infrastructure, gas distribution, industrial pipelines, and mining applications, ensuring durable, leak-free connections that withstand harsh conditions and long-term use.

Pipe Fusion Machine V800 Features

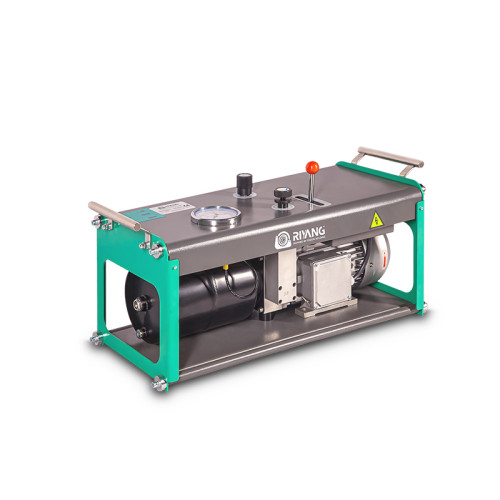

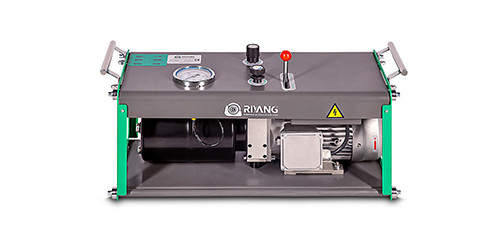

High-Performance Power Station

The power station delivers robust hydraulic pressure up to 120 bar with cartridge valves for easy maintenance. It ensures precise temperature control and features a compact, durable frame with a quick-release design for efficient upkeep.

Chassis Strength Redefined

The compact, robust chassis resists deformation and oil leakage even when handling thick pipes under extreme conditions. It features key hydraulic components sourced from top suppliers in Germany, Italy, and Japan for superior performance.

Heating Plate & Trimmer

The heating plate features durable Teflon coating with temperature variation under 7°C and a corrosion-resistant stainless steel junction box. Equipped with a powerful electric drill and ergonomic handle for efficient, comfortable pipe milling.

Pipe Fusion Machine V800 Technical Parameters

Product model	V800
Welding Range O.D.	500-800mm
Welding Range Inch	20" - 30" IPS
Heater Power	12.5 KW
Trimmer Power	2.2 KW
Pump Power	2.2 KW
Working Pressure Range	0 - 120 BAR

Power supply	380V±10%, 50/60 HZ
Gross Weight	1290 KGS
Packing Material	Plywood Box
Max. HeatingTemperature	320°C

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
