Pipe Fusion Machine V1000

Model: V1000

Item specifics

Welding Range in mm: 630-1000mm

Welding Range in inch: 24" - 42" IPS

Power Supply: 380V±10%, 50/60 HZ

Standard Applied: ISO21307, DVS2207/1, ASTM F2620 etc.

Certificate: CE, ISO9001

Tempreture Range: MAX. 320 ºC

Working Pressure Range: 0 - 140 BAR

Review

Description

Detail Information

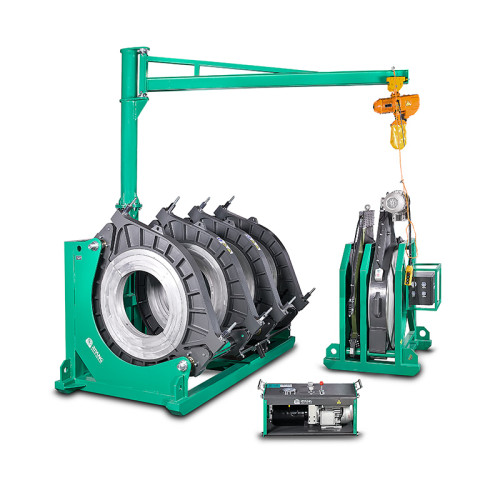

Pipe Fusion Machine V1000 Introduction

The RIYANG V1000 Butt Fusion Welding Machine delivers precise and reliable performance across key applications, including water supply, gas distribution, industrial pipelines, and mining. It ensures strong, leak-free joints for various thermoplastic piping systems, meeting the demands of tough working environments.

Pipe Fusion Machine V1000 Features

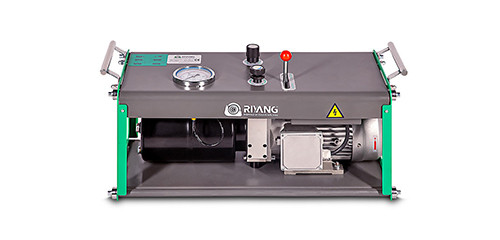

Advanced Hydraulic Power Unit

The power station provides strong hydraulic pressure up to 120 bar and uses cartridge valves for simplified maintenance. Its compact, rugged design includes precise temperature control and a quick-release structure for easy servicing and reliable operation.

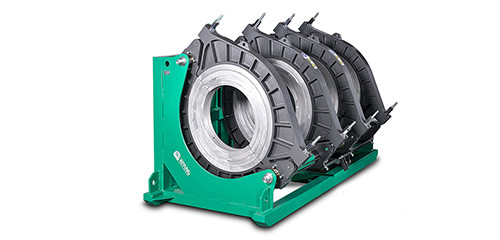

Reinforced Chassis Design

The sturdy, compact chassis is built to withstand deformation and prevent oil leakage, even when working with thick pipes under harsh conditions. It incorporates premium hydraulic components from leading manufacturers in Germany, Italy, and Japan to ensure exceptional performance.

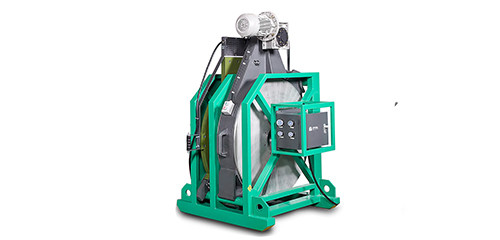

Heating Plate & Trimmer

The heating plate is coated with durable Teflon, maintaining temperature fluctuations within 7°C, and includes a corrosion-resistant stainless steel junction box. A high-performance electric drill and ergonomic handle ensure efficient and comfortable pipe milling.

Pipe Fusion Machine V1000 Technical Parameters

Product model	V1000
Welding Range O.D.	630-1000mm
Welding Range Inch	24" - 42" IPS
Heater Power	17.5 KW
Trimmer Power	3.0 KW
Pump Power	2.2 KW
Working Pressure Range	0 - 140 BAR

Power supply	380V±10%, 50/60 HZ
Gross Weight	2318 KGS
Packing Material	Plywood Box
Max. HeatingTemperature	320°C

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
