Pipe Fusion Machine V315

Model: V315

Item specifics

Welding Range in mm: 90-315mm

Welding Range in inch: 3" - 12" IPS

Power Supply: 220V±10%, 50/60HZ

Standard Applied: ISO21307, DVS2207/1, ASTM F2620 etc.

Certificate: CE, ISO9001

Tempreture Range: MAX. 320 ºC

Working Pressure Range: 0 - 80 BAR

Review

Description

Detail Information

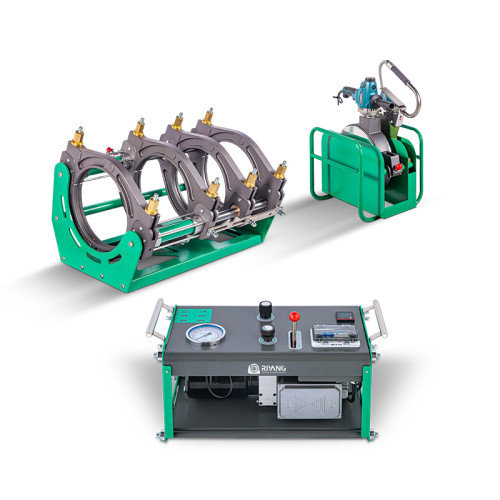

Pipe Fusion Machine V315 Introduction

The RIYANG V315 Butt Fusion Welding Machine is engineered to provide precise and dependable fusion welding for a wide range of demanding applications. It is ideal for water infrastructure, gas distribution, industrial pipelines, and mining operations, ensuring secure, leak-free, and durable joints for thermoplastic pipes. Its robust performance makes it a trusted choice for critical pipeline systems handling water, gas, chemicals, and other essential resources.

Pipe Fusion Machine V315 Features

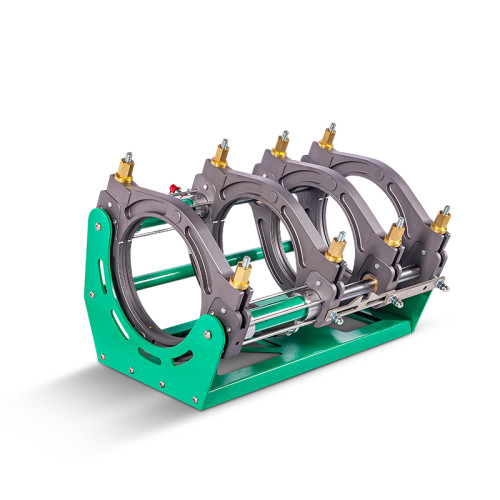

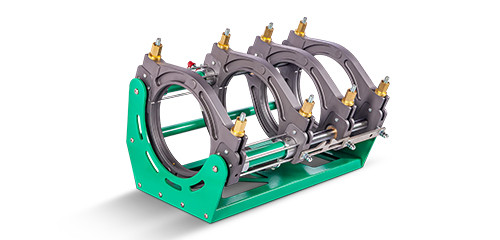

Robust & Serviceable Chassis

The chassis features a compact, detachable frame for easy maintenance, resists deformation under heavy loads, and uses premium hydraulic components from Germany, Italy, and Japan for reliable performance.

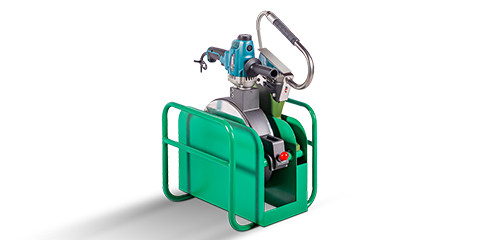

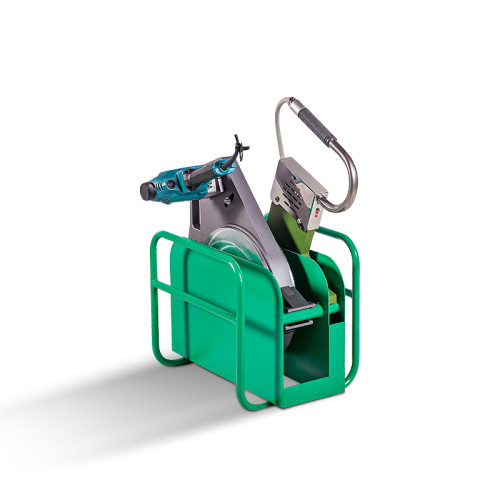

Efficient Heating & Trimming

The heating plate uses high-quality Teflon for low adhesion and stable temperature (≤3°C), paired with a corrosion-resistant stainless steel junction box. The trimmer features a powerful motor and ergonomic handle for smooth, long-lasting pipe milling.

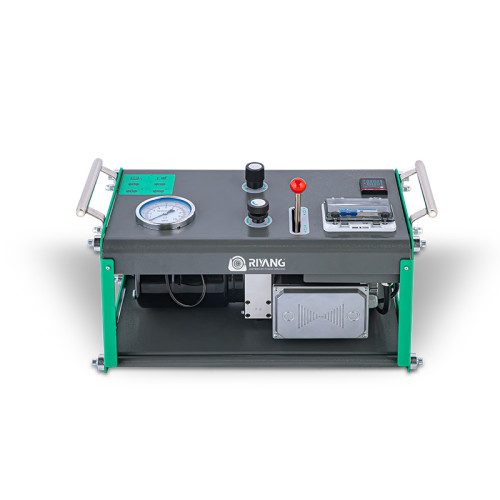

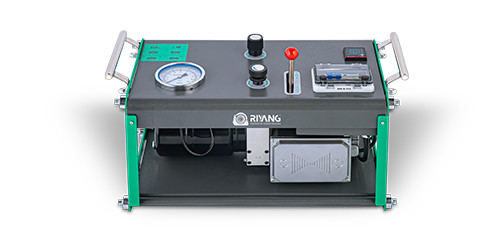

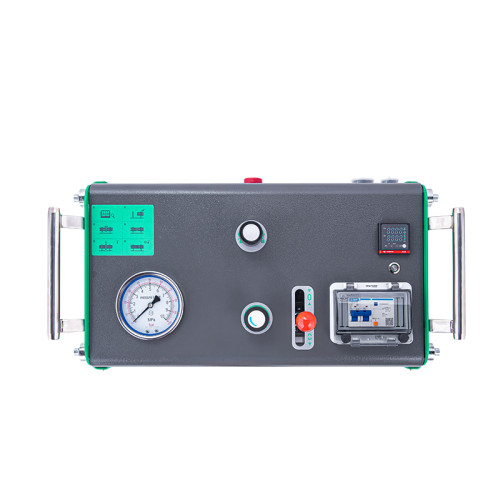

Powerful & Precise Power Unit

The power station delivers up to 80 bar hydraulic pressure, features cartridge valves for easy maintenance, precise temperature control for welding accuracy, and a compact, durable frame with quick-detach design for reliable, efficient operation.

Pipe Fusion Machine V315 Technical Parameters

Product model	V315
Welding Range O.D.	90-315mm
Welding Range Inch	3" - 12" IPS
Heater Power	3 KW
Trimmer Power	1.5 KW
Pump Power	1.1 KW
Working Pressure Range	0 - 80 BAR

Power supply	220V±10%, 50/60HZ
Gross Weight	241 KGS
Packing Material	Plywood Box
Max. HeatingTemperature	320°C

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
