Pipe Fusion Machine V250

Model: V250

Item specifics

Welding Range in mm: (63）90-250mm

Welding Range in inch: 2" - 8" IPS

Power Supply: 220V±10%, 50/60HZ

Standard Applied: ISO21307, DVS2207/1, ASTM F2620 etc.

Certificate: CE, ISO9001

Tempreture Range: MAX. 320 ºC

Working Pressure Range: 0 - 80 BAR

Review

Description

Detail Information

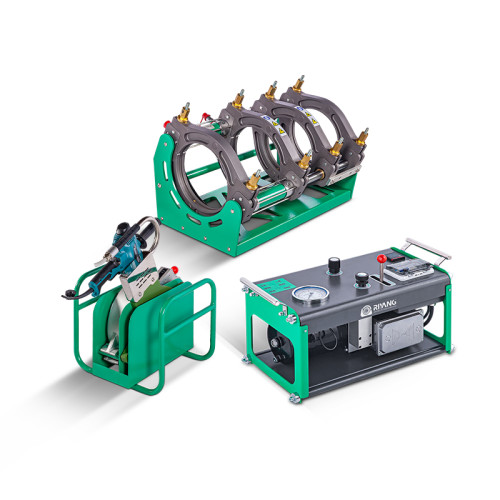

Pipe Fusion Machine V250 Introduction

The RIYANG V250 Butt Fusion Welding Machine is engineered for high-precision and dependable performance across a wide range of demanding applications. It is ideal for water infrastructure, gas distribution, industrial pipelines, and mining operations, providing strong, leak-free joints for thermoplastic pipes. Its versatility and reliability make it a trusted solution for critical pipeline systems handling water, gas, chemicals, and other industrial fluids.

Pipe Fusion Machine V250 Features

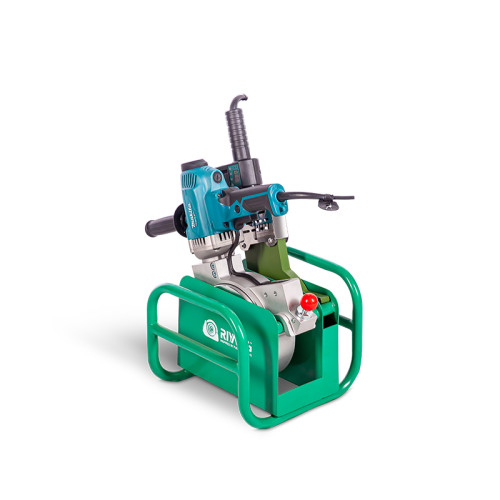

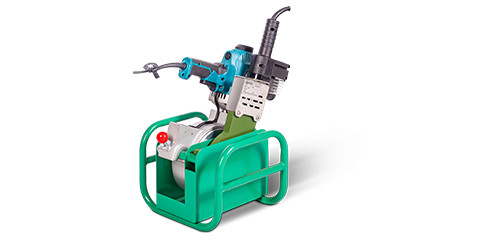

Reliable Heating & Trimming

The Teflon-coated heating plate ensures low adhesion and stable temperature (<3°C). A corrosion-resistant junction box and powerful trimmer with ergonomic handle provide efficient, long-lasting performance.

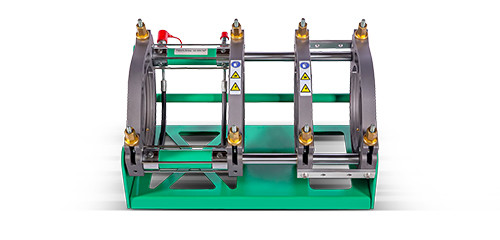

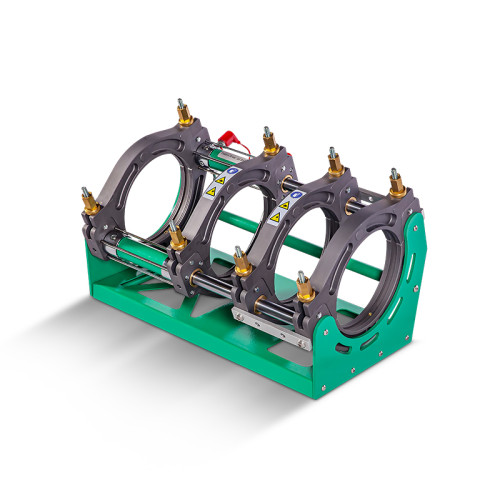

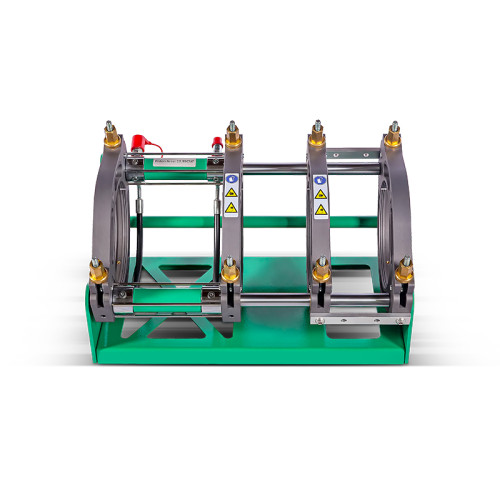

Strong & Service-Friendly Chassis

Compact and durable, the chassis resists deformation under heavy loads and allows quick maintenance. Key hydraulic parts come from top suppliers in Germany, Italy, and Japan.

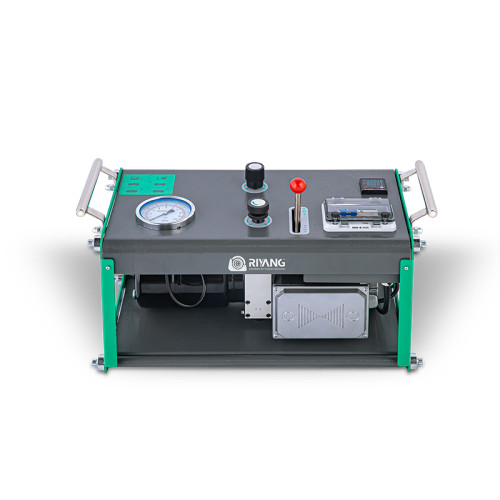

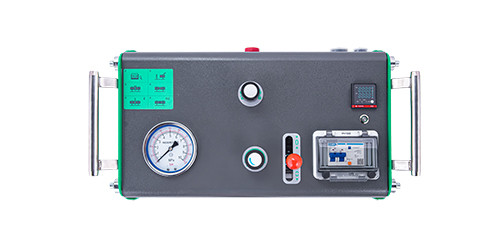

Compact & Precise Power Station

With up to 80 bar pressure, this unit offers accurate temperature control, easy-maintenance cartridge valves, and a durable, quick-detach frame that resists deformation.

Pipe Fusion Machine V250 Technical Parameters

Product model	V250
Welding Range O.D.	(63）90-250mm
Welding Range Inch	2" - 8" IPS
Heater Power	2 KW
Trimmer Power	1.5 KW
Pump Power	1.1 KW
Working Pressure Range	0 - 80 BAR

Power supply	220V±10%, 50/60HZ
Gross Weight	192 KGS
Packing Material	Plywood Box
Max. HeatingTemperature	320°C

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
