Plastic Sheet Welder RPH6000
- Model
- RPH6000
Item specifics
- Maximum Welding Width
- 6000 mm
- Maximum Welding Thickness
- 30 mm
- Standard Applied
- DVS2207
- Weldable Materials
- PE, PP, PVDF, PVC, ABS etc
- Welding Type
- Plastic Sheet Butt Welding
- Certificate
- CE
Review
Description
Detail Information

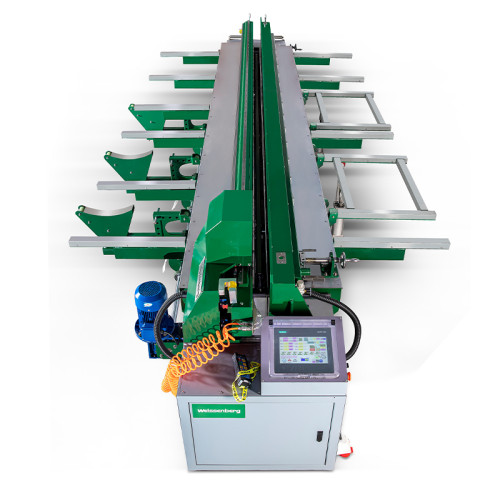

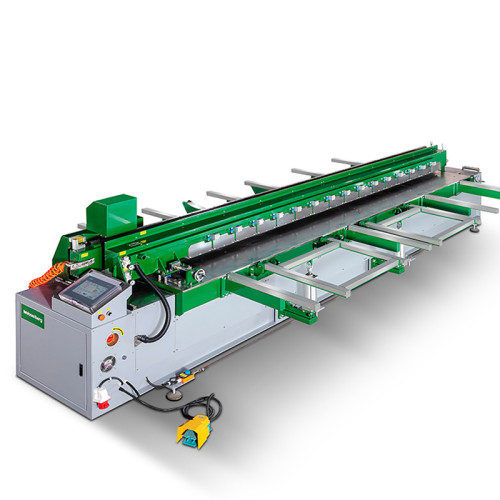

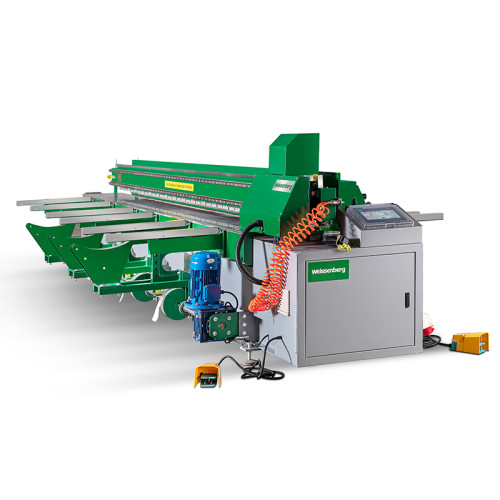

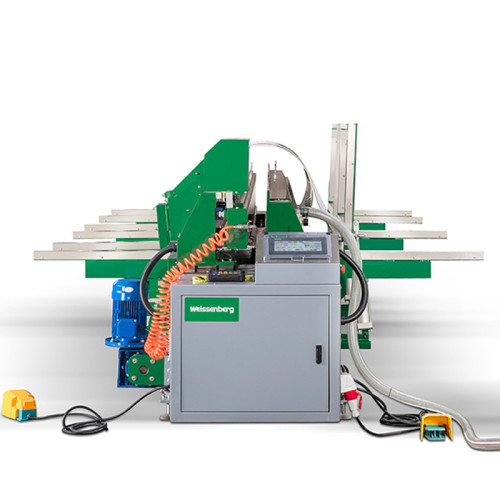

Plastic Sheet Welder RPH6000 Introduction
The Weissenberg RPH6000 is built for large plastic sheet welding up to 6000mm wide. It supports PP, PE, and other thermoplastics with precise temperature and pressure control. Featuring a sturdy frame and high-density clamps, it ensures stable, consistent welds. Key parts come from top international brands for durability and performance, ideal for chemical, environmental, and electroplating industries.
Plastic Sheet Welder RPH5000 Features
Plastic Sheet Welder RPH3000 Technical Parameters
| Product model | RPH6000 |
| Maximum Working width | 6,000mm |
Machine Length | 7,750mm |
Machine width | 2,300mm |
Machine height | 1,200mm |
PE (0.15 N/mm²) | 3-30 |
PP (0.10 N/mm²) | 3-30 |
| PVDF (0.10 N/mm²) | 3-30 |
| Power supply | 230/400V 3/N/PE,50/60 Hz |
| Power consumption | 11KW |
Compressed Air Connection | 4-8bar |
Max. HeatingTemperature | 260°C |
| Optional Auxiliary Tools | 90° degree angle device Rolling auxiliary device |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
