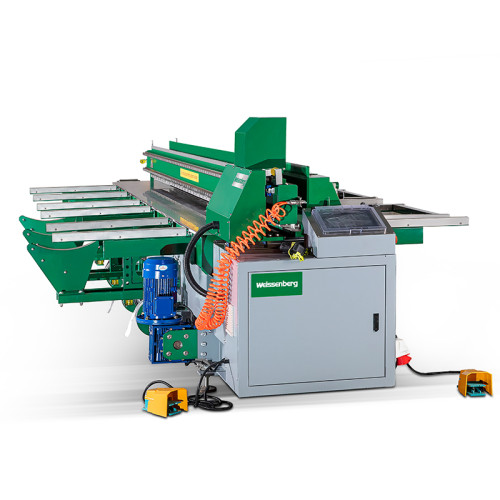

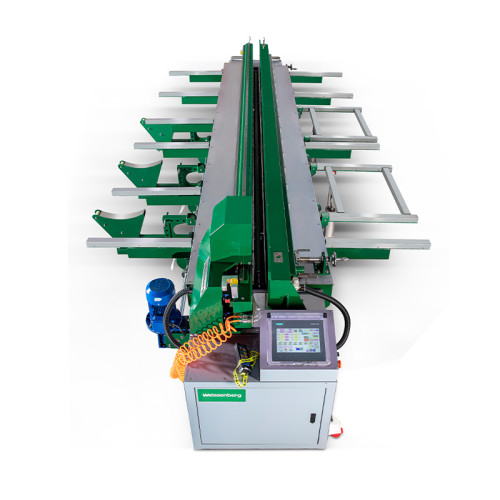

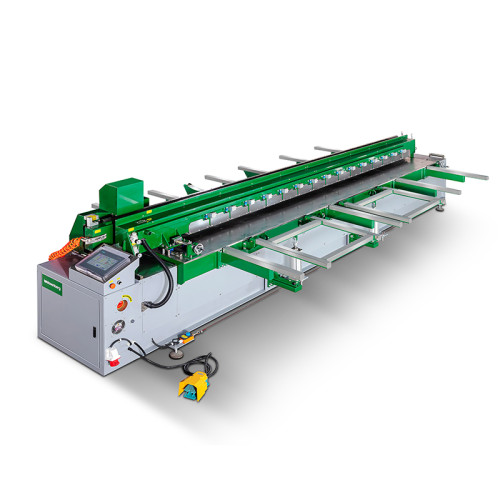

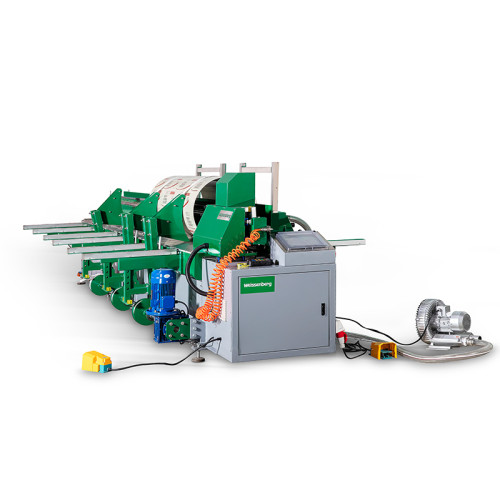

Plastic Sheet Welder RPH4000
- Model
- RPH4000
Item specifics
- Maximum Welding Width
- 4000 mm
- Maximum Welding Thickness
- 30 mm
- Standard Applied
- DVS2207
- Weldable Materials
- PE, PP, PVDF, PVC, ABS etc
- Welding Type
- Plastic Sheet Butt Welding
- Certificate
- CE
Review
Description
Detail Information
Plastic Sheet Welder RPH4000 Introduction
The Weissenberg RPH4000 is a heavy-duty butt welding machine for thermoplastic sheets 3 to 30 mm thick, with a maximum welding width of 4000 mm. Built for industrial sectors including chemical processing, ventilation systems, and wastewater treatment, it delivers consistent, high-quality welds on large-scale sheets.
Plastic Sheet Welder RPH4000 Features
Plastic Sheet Welder RPH4000 Technical Parameters
| Product model | RPH4000 |
| Maximum Working width | 4,000mm |
Machine Length | 5,750mm |
Machine width | 2,300mm |
Machine height | 1,200mm |
PE (0.15 N/mm²) | 3-30 |
PP (0.10 N/mm²) | 3-30 |
| PVDF (0.10 N/mm²) | 3-30 |
| Power supply | 230/400V 3/N/PE,50/60 Hz |
| Power consumption | 7KW |
Compressed Air Connection | 4-8bar |
Max. HeatingTemperature | 260°C |
| Optional Auxiliary Tools | 90° degree angle device Rolling auxiliary device |
* Parameters are measured under standard operating conditions and may vary in actual use.
