Plastic Sheet Welder RPH1500
- Model
- RPH1500
Item specifics
- Maximum Welding Width
- 1500 mm
- Maximum Welding Thickness
- 15 mm
- Standard Applied
- DVS2207
- Weldable Materials
- PE, PP, PVDF, PVC, ABS etc
- Welding Type
- Plastic Sheet Butt Welding
- Certificate
- CE
Review
Description
Detail Information

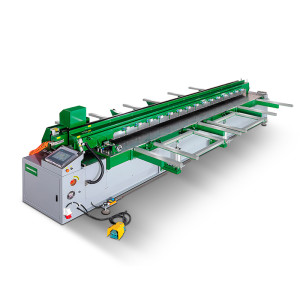

Plastic Sheet Welder RPH1500 Introduction
The Weissenberg RPH1500 is a high-performance butt welding solution engineered for precise joining of thermoplastic sheets ranging from 3–15 mm in thickness. It supports the production of tanks, pipelines, ventilation systems, and plastic apparatus. Its robust build and consistent heating system ensure reliable welds across industrial applications, including chemical storage, water treatment, and utility infrastructure.
Plastic Sheet Welder RPH1500 Features
Plastic Sheet Welder RPH1500 Technical Parameters
| Product model | RPH1500 |
| Maximum Working width | 1550mm |
Machine Length | 2150mm |
Machine width | 600mm |
Machine height | 1200mm |
PE (0.15 N/mm²) | 3-15 |
PP (0.10 N/mm²) | 3-15 |
| PVDF (0.10 N/mm²) | 3-15 |
| Power supply | 230V， 50/60 Hz |
| Power consumption | 3KW |
Compressed Air Connection | 4-8bar |
Max. HeatingTemperature | 260°C |
| Optional Auxiliary Tools | 90° degree angle device Rolling auxiliary device |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
