Socket Fusion Machine RRQ-125D
- Model
- RRQ-125D
Item specifics
- Model
- RRQ-125D
- Welding Range（mm）
- 20-125
- Certificate
- CE, ISO9001
- Working Tempreture
- 260° ± 10° C on socket
- Weldable Materials
- PP-R, PE, PP, PB, PVDF
Review
Description
Detail Information

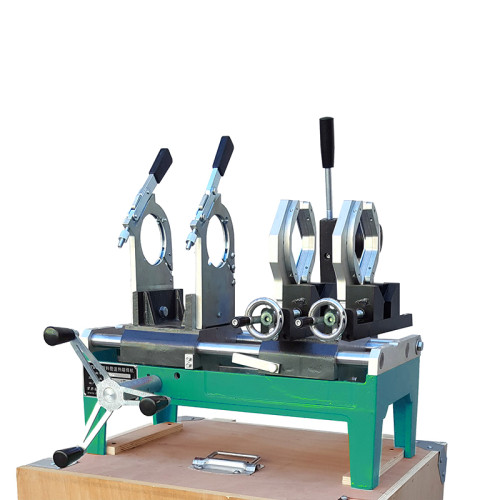

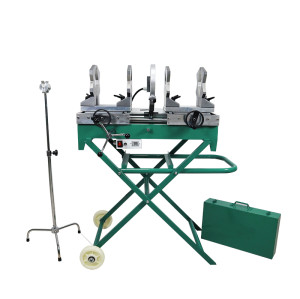

Socket Fusion Machine RRQ-125D Introduction
The RRQ-125D is a robust and versatile socket fusion welding machine designed for use in workshops or construction sites. It is engineered for the welding of pipes and fittings from Ø20 mm to Ø125 mm (½” to 4”) in compliance with international socket fusion standards, including Type B sockets and spigots. Ideal for thermoplastic materials such as HDPE, PP, PPR, and PVDF, the RRQ-125D delivers precise and repeatable fusion welds, making it a reliable solution for plumbing, heating, and fluid transport applications.
Socket Fusion Machine RRQ-125D Technical Parameters
| Product model | RRQ-125D |
| Working Tempreture | 260° ± 10° C on socket |
Net Weight | 33 kg |
Carton Size（mm） | 600 * 700 * 570 mm |
| Power | 1400 W |
Environment Temperature | -5℃ ~ 45℃ |
Rated Voltage | 110 V or 230 V, 50/60 Hz |
Key Features:
· Welding Range: Suitable for pipe diameters from Ø20 mm to Ø125 mm
· Diameter Selector: Integrated selector dial for setting correct welding depth by pipe size
· Self-Centering Clamps: Includes four steel clamps for secure and precise alignment of pipes and fittings from various manufacturers
· Electronic Socket Welder: Equipped with electronic temperature control for stable, accurate heating
· Heating Depth Limiter: Prevents overheating or over-insertion, ensuring consistent weld quality
Applications:
· Ideal for use in:
· Water supply and drainage systems
· Industrial fluid handling
· HVAC pipe networks
· On-site plumbing and retrofits
File Downloads
For more product related parameter files, please contact us.
