Socket Fusion Machine DRRQ-63
- Model
- DRRQ-63
Item specifics
- Model
- DRRQ-63
- Welding Range（mm）
- 20-63
- Certificate
- CE, ISO9001
- Working Tempreture
- 260 ℃ ±30%
- Weldable Materials
- PP-R, PE, PP, PB, PVDF
Review
Description
Detail Information
Socket Fusion Machine DRRQ-63 Introduction

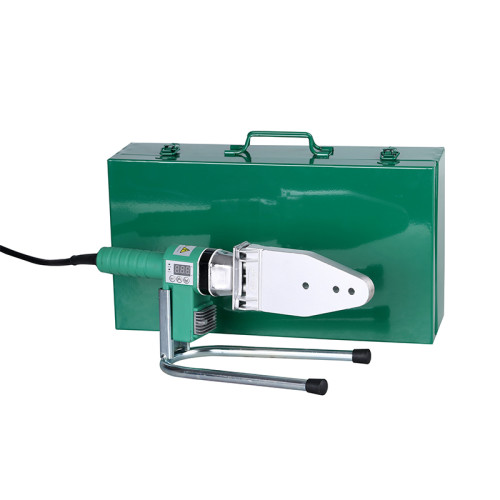

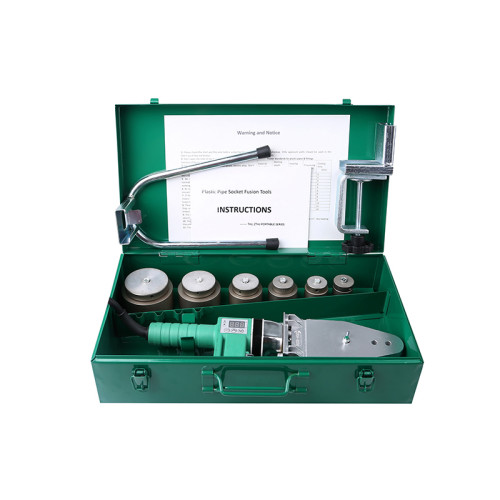

The Weissenberg DRRQ-63 is a portable socket fusion tool designed for welding plastic pipes up to 63mm. It comes with a Teflon-coated heating plate, a stable support frame, and an electronic thermostat for consistent temperature control. Lightweight and easy to handle, it’s perfect for on-site jobs. The heat-protected grip and coated welding sockets deliver safe, strong, and long-lasting joints.
Socket Fusion Machine DRRQ-63 Technical Parameters
| Product model | DRRQ-63 |
| Working Tempreture | 260℃±30% |
Net Weight | 1.8KG |
Carton Size（mm） | 460x265x265 |
Weight/Carton | 16.5KG |
| Power | 800/870W |
Environment Temperature | -5℃~ 45℃ |
Rated Voltage | A.C 220/230V, 50/60HZ |
PCS/Carton | 2 |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
