Socket Fusion Machine HOVER 125
- Model
- HOVER 125
Item specifics
- Model
- HOVER 125
- Welding Range（mm）
- 25-125
- Certificate
- CE, ISO9001
- Working Tempreture
- 260° ± 10° C on socket
- Weldable Materials
- PP-R, PE, PP, PB, PVDF
Review
Description
Detail Information

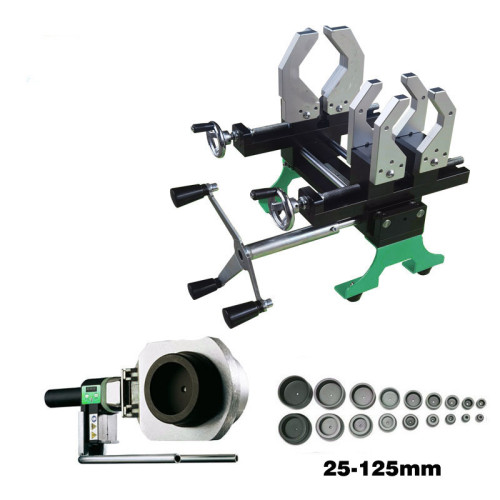

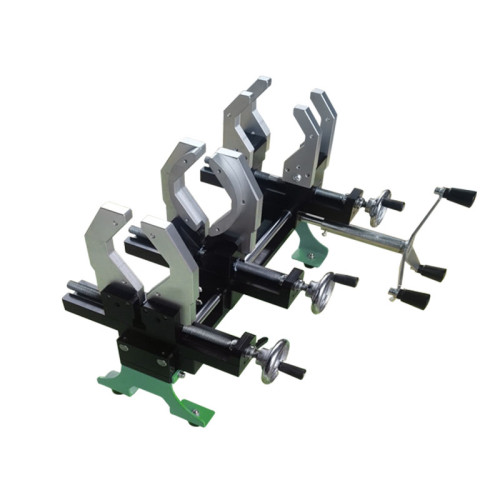

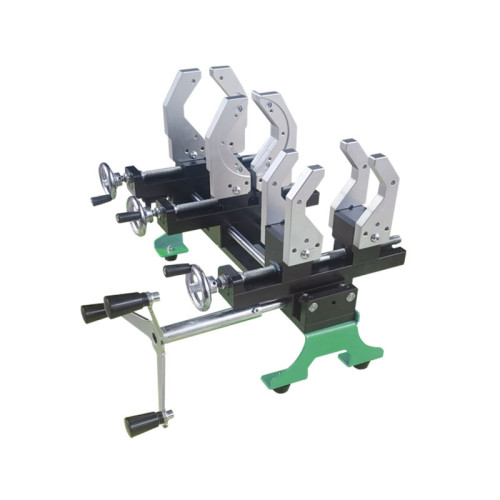

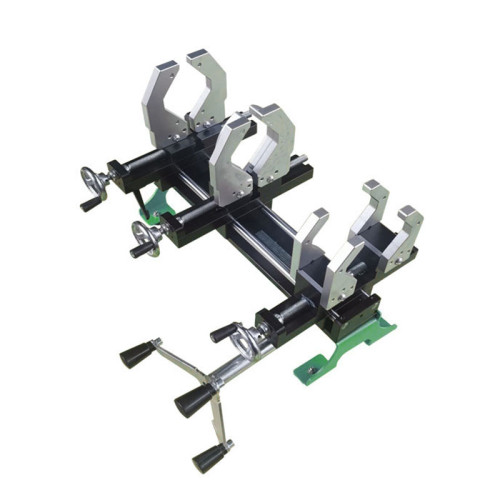

Socket Fusion Machine HOVER 125 Introduction
The HOVER 125 is a compact and high-precision socket fusion welding machine, specifically designed for thermoplastic pipe systems including HDPE, PP, PP-R, PVDF, and PB. It supports pipe sizes from Ø25mm to Ø125mm, making it ideal for plumbing, heating, and industrial piping installations.
Built with a durable steel frame, the machine ensures reliable alignment and structural stability during welding. Its space-saving design allows efficient operation in confined or hard-to-reach areas, with a quick-release mechanism that detaches the frame when needed, enhancing on-site flexibility.
The HOVER 125 features two robust trolleys—one fixed and one movable—each equipped with user-friendly handwheels for smooth manual control. It includes four high-performance aluminum auto-centering clamps that ensure accurate and secure positioning of pipes and fittings during the welding process. The dedicated fitting clamp is mounted on the fixed trolley, while the paired clamps secure the pipe on the movable side, ensuring perfect alignment.
Designed for socket and spigot welding, the HOVER 125 is available in Type B configuration, complying with common international socket welding standards.
Socket Fusion Machine HOVER 125 Technical Parameters
| Product model | HOVER 125 |
| Working Tempreture | 260° ± 10° C on socket |
Net Weight | 9 kg |
Carton Size（mm） | 600 * 437 * 300 |
| Power | 1400 W |
Environment Temperature | -5℃ ~ 45℃ |
Rated Voltage | 110 V or 230 V, 50/60 Hz |
Key Features:
· Suitable for HDPE, PP, PP-R, PVDF, PB pipes
· Welds OD 25mm to 125mm
· Compact and ergonomic for tight space operations
· Steel frame and trolleys ensure durability and precision
· Auto-centering clamps provide strong and accurate alignment
· Quick clamp change for different pipe/fitting configurations
· Compatible with Type B sockets and spigots
Applications:
· Ideal for use in:
· Water supply and drainage systems
· Industrial fluid handling
· HVAC pipe networks
· On-site plumbing and retrofits
