Energy HT1600 Shrink Kit
- Model
- Energy HT1600 Shrink Kit
Item specifics
- Article
- 125.015
- Voltage & Frequency
- 120/230 V, 50/60 Hz
- Power
- 1600 W
- Temperature
- 40 - 700 °C
- Nozzle connection ø
- 31.5 mm / 1.25 in
- Weight
- 0.99 kg
- Approvals
- CE
Review
Description
Detail Information
Energy HT1600 Shrink Kit Introduction
This kit combines the HT1600 heat gun with specialized nozzles designed for efficient overlap welding. It enhances weld seam strength and speeds up the welding process. The easy-to-change nozzles make it versatile for various applications, improving workflow efficiency in both repair and production settings.
Energy HT1600 Shrink Kit Features

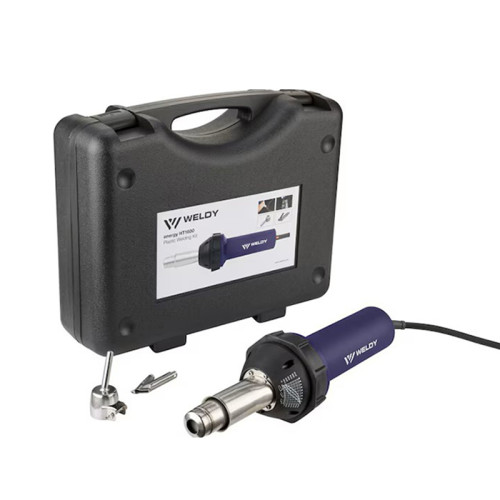

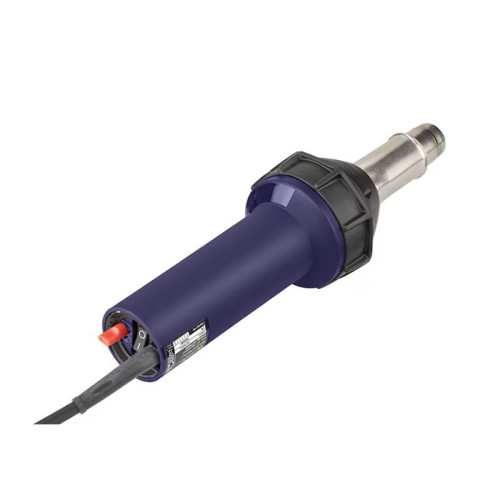

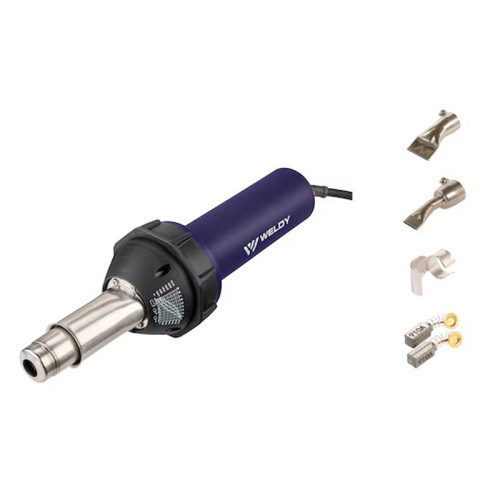

The energy HT1600 shrink kit from Weldy contains the right tool and accessories for shrinking cables and foils made of thermoplastic materials. In addition to the robustWeldy energy HT1600 heat gun, this kit includes three nozzles and a pair of replacement carbon brushes for the blower motor. The energy HT1600 heat gun is characterized by its stepless temperature adjustment from 40 °C to 700 °C and is easy to use.

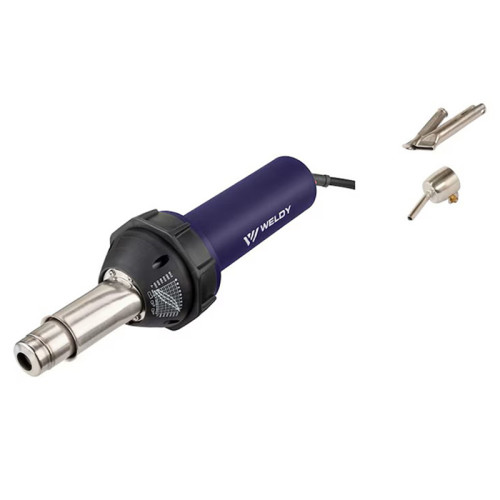

Users will find all the nozzles they need for shrinking cables and foils with Weldy's HT1600 shrink kit: Wide slot nozzle 40 mm (article no. 124.777), wide slot nozzle 20 mm (article no. 124.772), and reflector nozzle (article no. 119.344). In the automotive industry, Weldy's HT1600 shrink kit is often used to shrink wire harnesses. Another possible application is film shrinking in the packaging industry.
Energy HT1600 Shrink Kit Technical Parameters
| Article | 125.015 |
| Voltage & Frequency | 120/230 V, 50/60 Hz |
Power | 1600 W |
Temperature | 40 - 700 °C |
Temperature setting stepless | Yes |
Airflow (20°C) | 240 l/min |
Stepless air volume adjustment | No |
| Static pressure | 2600 Pa |
| Eco-Mode | No |
Weight | 0.99 kg |
Plug | EU, 2 poles, 16A |
Approvals | CE |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
