Energy HT1600
- Model
- Energy HT1600
Item specifics
- Article
- 120.881
- Voltage & Frequency
- 120/230 V, 50/60 Hz
- Power
- 1600 W
- Temperature
- 40 - 700 °C
- Nozzle connection ø
- 31.5 mm / 1.25 in
- Weight
- 0.99 kg
- Approvals
- CE
Review
Description
Detail Information

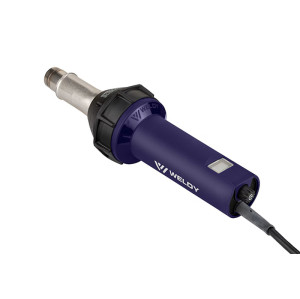

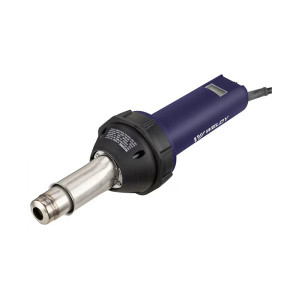

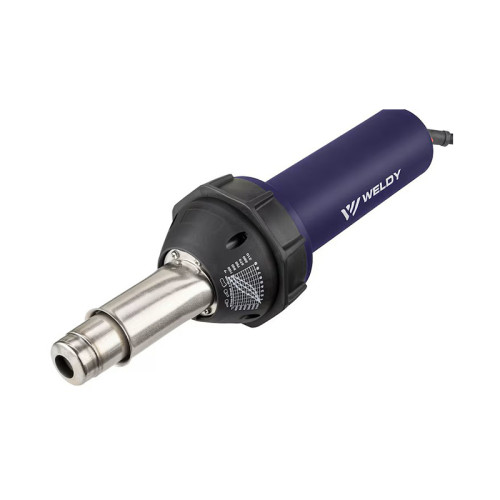

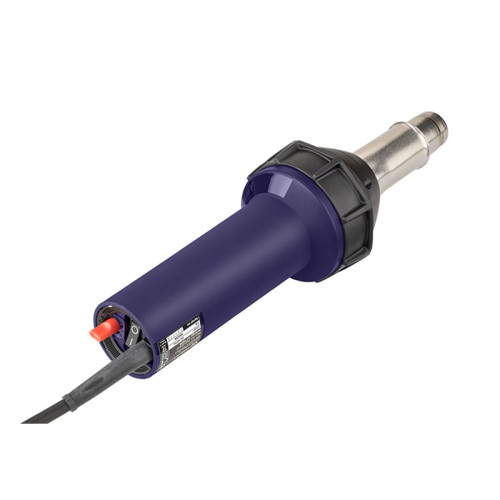

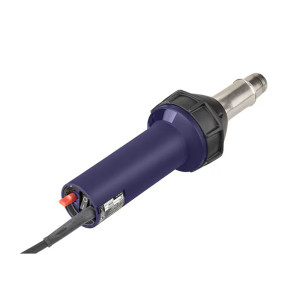

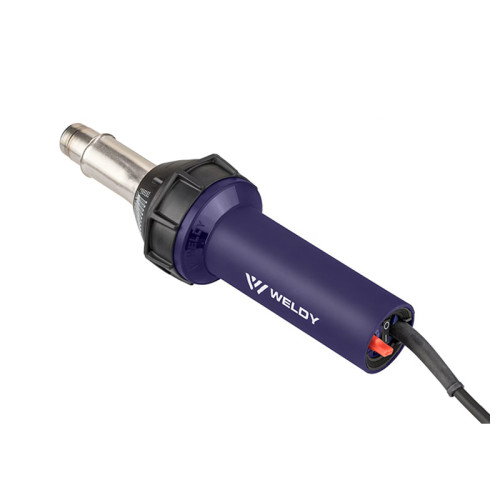

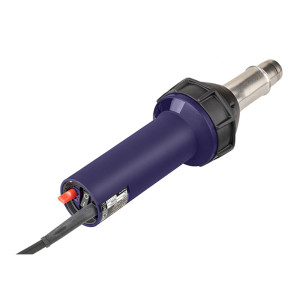

Energy HT1600 Introduction

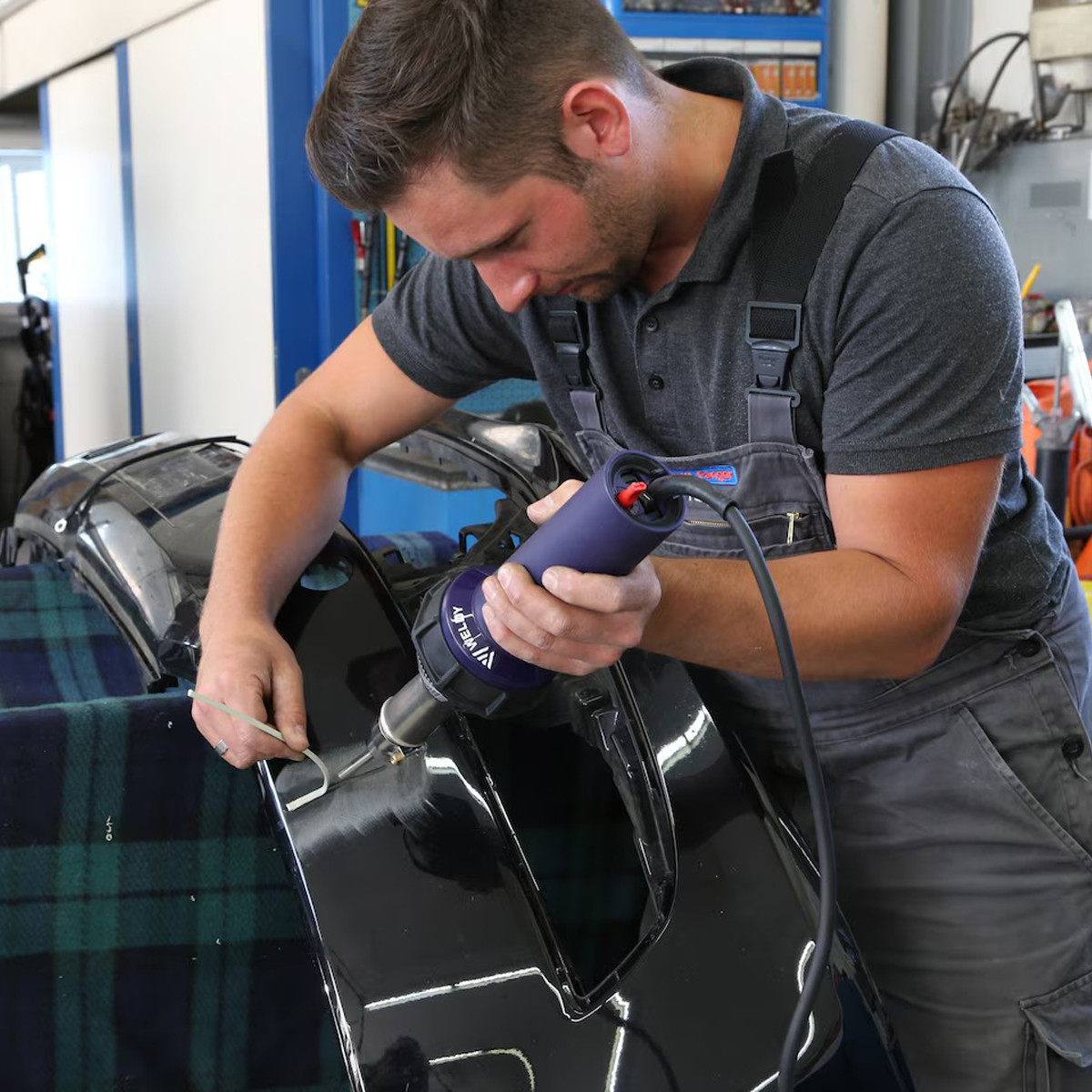

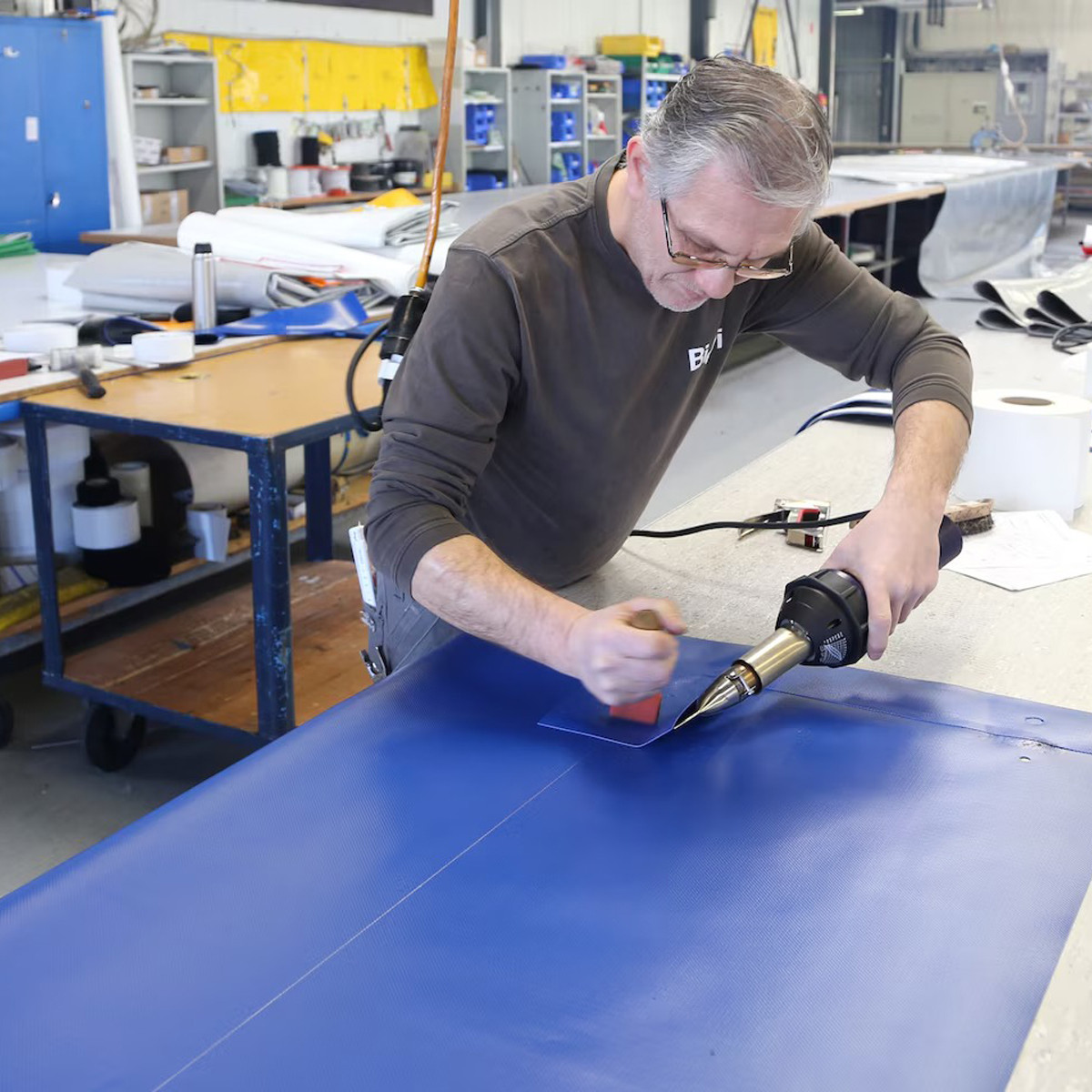

Energy HT1600 features advanced digital temperature control and stable airflow, delivering consistent and durable plastic welds. Its ergonomic design ensures comfortable operation for extended use. Suitable for a wide range of thermoplastic materials, it is ideal for repair work and small to medium production runs.
Energy HT1600 Features

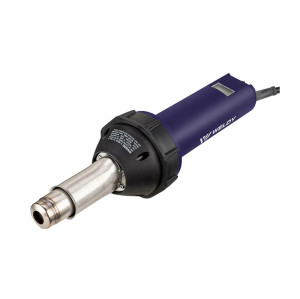

The energy HT1600 heat gun from Weldy is very powerful. It is equipped with a stepless temperature control up to 700 °C / 1292 °F and a robust brush motor with a ceramic heating element. The plastic welding device is suitable for a variety of professional and handyman tasks. Weighing only 1 kg / 2.2 lbs, the energy HT1600 heat gun makes work extremely easy. Various accessories available from Leister include nozzles and welding rods to quarter moon knives, enabling a multitude of applications.

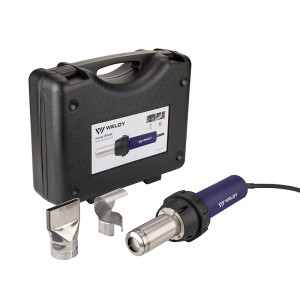

The Weldy HT 1600 heat gun can also be purchased in three other editions as a complete set. The "plastic kit" variant, including a 5 mm / 0.19 inch tube nozzle and a 4 mm / 0.16 inch quick welding nozzle; the variant "overlap kit" has two overlap nozzles, each 40 mm and 20 mm / 0.8 inch, and a silicone pressure roller. Last, but not least, the "shrinkage kit" is equipped with two overlap nozzles, 40 mm / 0.16 inch and 20 mm / 0.8 inch, and a reflector nozzle. The Weldy manual welding kits are supplied with operating instructions in 28 languages and a durable plastic tool case. In the standard design, Weldy HT1600 has cardboard packaging.
Energy HT1600 Technical Parameters
| Article | 120.881 |
| Voltage & Frequency | 120/230 V, 50/60 Hz |
Power | 1600 W |
Temperature | 40 - 700 °C |
Temperature setting stepless | Yes |
Airflow (20°C) | 240 l/min |
Stepless air volume adjustment | No |
| Static pressure | 2600 Pa |
| Eco-Mode | No |
Weight | 0.99 kg |
Plug | EU, 2 poles, 16A |
Approvals | CE |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
