Energy HT1600 Overlap Welding Kit
- Model
- Energy HT1600 Overlap Welding Kit
Item specifics
- Article
- 120.888
- Voltage & Frequency
- 120/230 V, 50/60 Hz
- Power
- 1600 W
- Temperature
- 40 - 700 °C
- Nozzle connection ø
- 31.5 mm / 1.25 in
- Weight
- 0.99 kg
- Approvals
- CE
Review
Description
Detail Information
Energy HT1600 Overlap Welding Kit Introduction
This kit combines the HT1600 heat gun with specialized nozzles designed for efficient overlap welding. It enhances weld seam strength and speeds up the welding process. The easy-to-change nozzles make it versatile for various applications, improving workflow efficiency in both repair and production settings.
Energy HT1600 Overlap Welding Kit Features

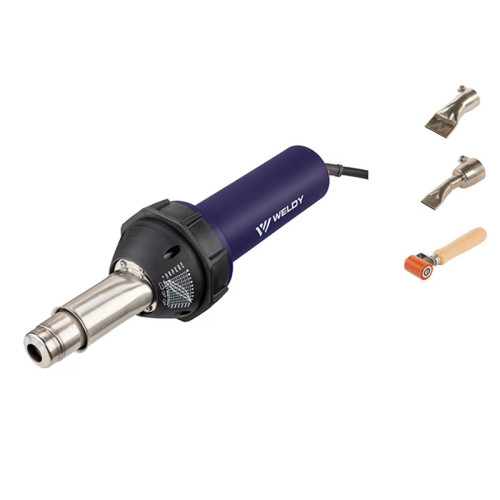

The energy HT1600 overlap welding kit includes a heat gun and important accessories for overlap welding thermoplastic membranes and technical textiles made of PVC (vinyl) and TPO. The kit, which is suitable for both professionals and beginners, includes two wide-slit nozzles (40 mm wide-slot nozzle - article no. 124.777 and 20 mm wide-slot nozzle - article no. 124.772), a 40 mm pressure roller (article no. 130.611), and spare carbon brushes (article no. 125.810).

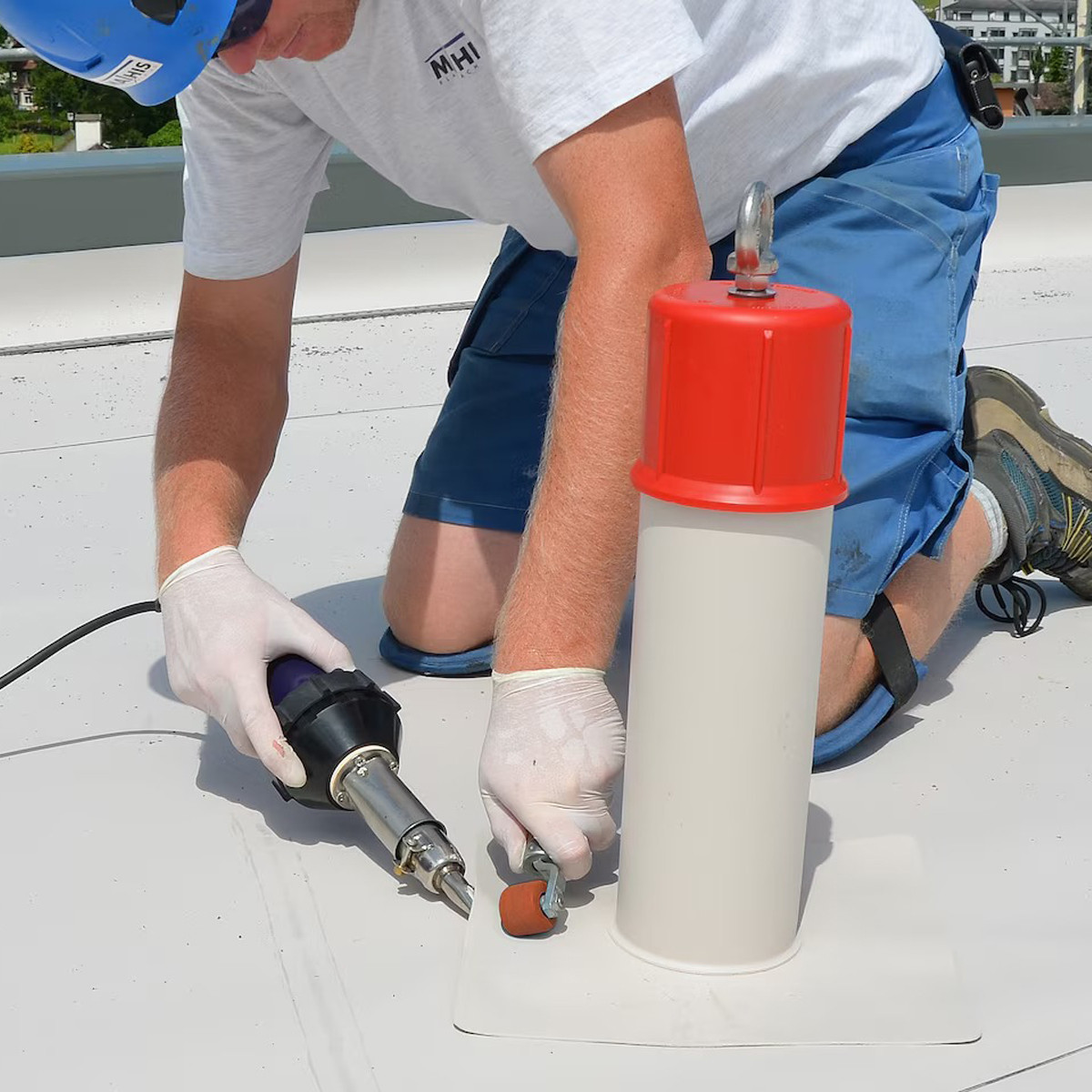

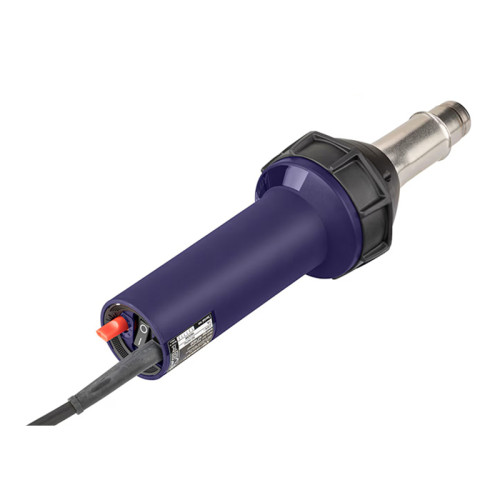

The Weldy HT1600 heat gun is characterized by its stepless temperature adjustment from 40°C (104°F) to 700°C (1290°F). Weldy's five-piece energy HT1600 overlap welding kit is ideal for welding roofing membranes, technical textiles and other thermoplastics such as PVC (vinyl) and TPO in construction, commercial and DIY applications.
Energy HT1600 Overlap Welding Kit Technical Parameters
| Article | 120.888 |
| Voltage & Frequency | 120/230 V, 50/60 Hz |
Power | 1600 W |
Temperature | 40 - 700 °C |
Temperature setting stepless | Yes |
Airflow (20°C) | 240 l/min |
Stepless air volume adjustment | No |
| Static pressure | 2600 Pa |
| Eco-Mode | No |
Weight | 0.99 kg |
Plug | EU, 2 poles, 16A |
Approvals | CE |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
