Fitting Fabrication Machine ATLA450
- Model
- ATLA450
Item specifics
- Welding Range in mm
- 90- 450 mm
- Elbows
- OD 90mm - 450mm ( 0º - 90º )
- Wyes ( *Option )
- OD 90mm - 315mm ( 45º - 60º )
- Tees & Crosses
- OD 90mm - 450mm
- Certificate
- CE, ISO9001
- Materials
- HDPE - PP - PPR - PVDF
Review
Description
Detail Information

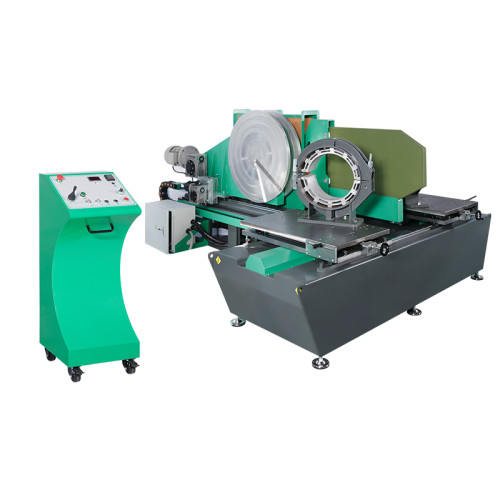

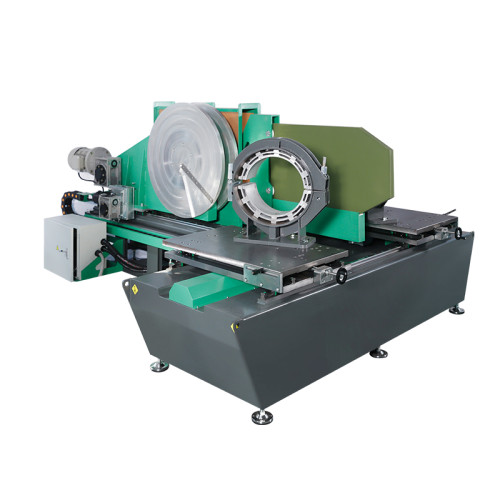

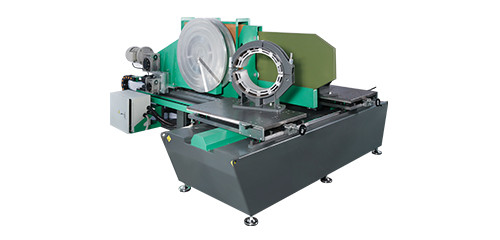

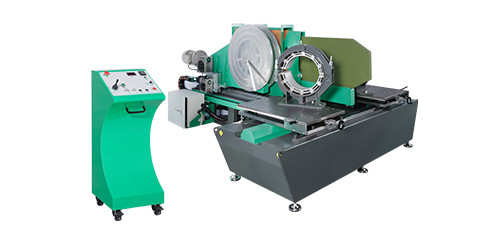

Fitting Fabrication Machine ATLA450 Introduction

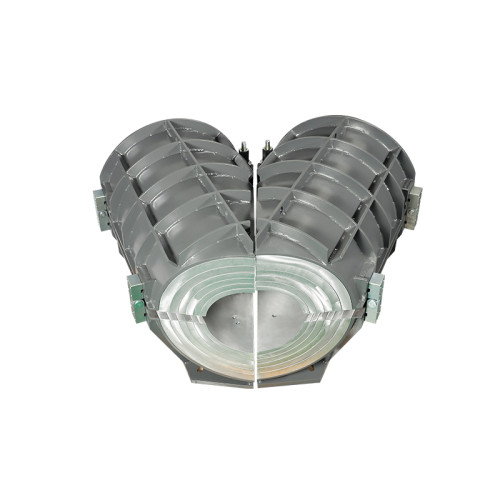

The ATLA450 is a versatile workshop machine for fabricating plastic fittings like elbows, tees, crosses (up to 450mm), and wyes (up to 315mm). Suitable for HDPE, PP, and PVDF, it features interchangeable jaws to handle different sizes with precision. Built for dependable performance, it’s an excellent solution for diverse piping fabrication needs.
Fitting Fabrication Machine ATLA450 Features
Fitting Fabrication Machine ATLA450 Technical Parameters
| Product model | ATLA450 |
| Welding Range O.D. | 90-450mm |
Elbows | OD 90mm - 450mm ( 0º - 90º ) |
Wyes ( *Option ) | OD 90mm - 315mm ( 45º - 60º ) |
Tees & Crosses | OD 90mm - 450mm |
Power Supply | 12.3KW |
Pistion Area | 10.9 CM² |
| Power supply | 380VAC, 3 PHASE, 50/60HZ |
| Gross Weight | 1744 KGS |
Packing Material | Plywood Box |
Machine Dimension | 1350*1350*1370mm |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
