Fitting Fabrication Machine ATLA630 CNC
- Model
- ATLA630 CNC
Item specifics
- Welding Range in mm
- 315- 630 mm
- Elbows
- OD 315mm - 630mm ( 0º - 90º )
- Wyes ( *Option )
- OD 315mm - 630mm ( 45º - 60º )
- Tees & Crosses
- OD 315mm - 630mm
- Certificate
- CE, ISO9001
- Materials
- HDPE - PP - PPR - PVDF
Review
Description
Detail Information
Fitting Fabrication Machine ATLA630 Introduction

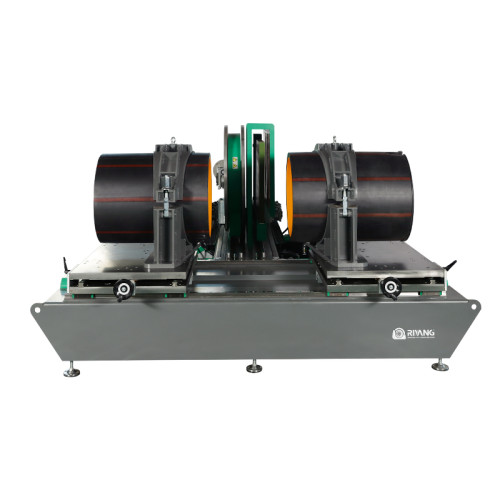

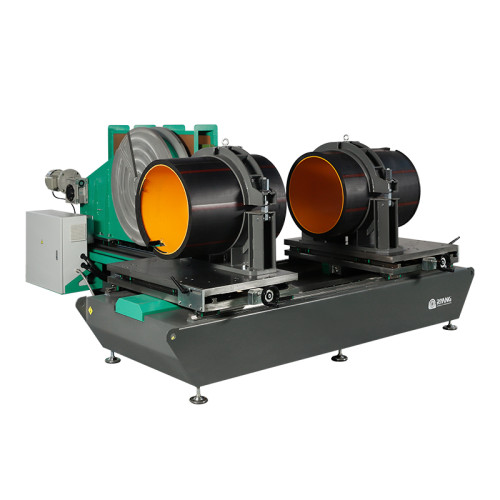

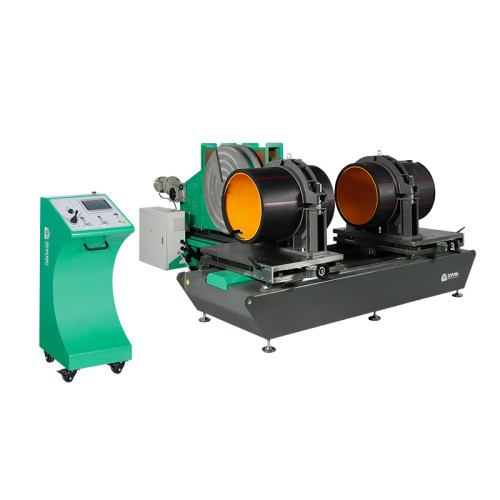

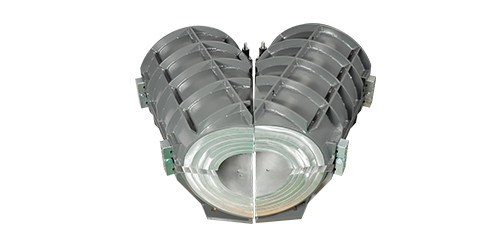

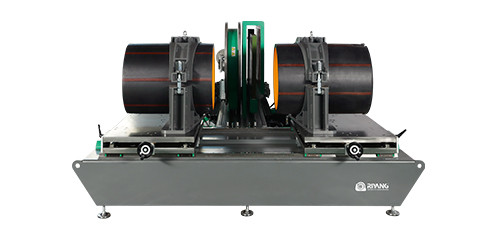

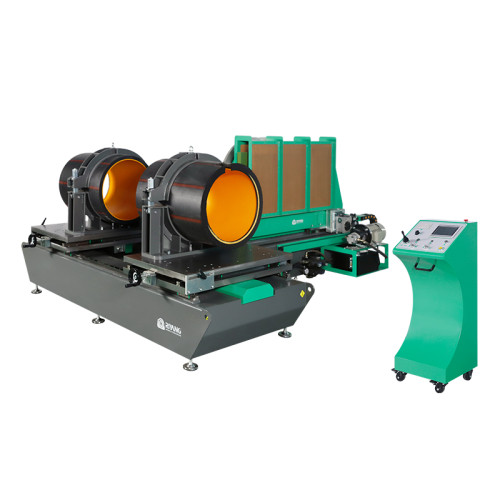

The ATLA630CNC is a versatile fitting fabrication machine designed for producing large-diameter plastic fittings, including elbows, tees, crosses, and wyes up to 630mm. It supports a wide range of thermoplastic materials such as HDPE, PP, and PVDF. With its interchangeable jaws, the machine can easily adapt to different fitting sizes, making it ideal for workshop and industrial applications that require precision and flexibility.
Fitting Fabrication Machine ATLA630 Features
Fitting Fabrication Machine ATLA630 Technical Parameters
| Product model | ATLA630 |
| Welding Range O.D. | 315-630mm |
Elbows | OD 315mm - 630mm ( 0º - 90º ) |
Wyes ( *Option ) | OD 315mm - 630mm ( 45º - 60º ) |
Tees & Crosses | OD 315mm - 630mm |
Power Supply | 34.2KW |
| Power supply | 380VAC, 3 PHASE, 50/60HZ |
Packing Material | Plywood Box |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
