Fitting Fabrication Machine ATLA400
- Model
- ATLA400
Item specifics
- Welding Range in mm
- 90- 400 mm
- Elbows
- OD 90mm - 400mm ( 0º - 90º )
- Wyes ( *Option )
- OD 90mm - 315mm ( 45º - 60º )
- Tees & Crosses
- OD 90mm - 400mm
- Certificate
- CE, ISO9001
- Materials
- HDPE - PP - PPR - PVDF
Review
Description
Detail Information

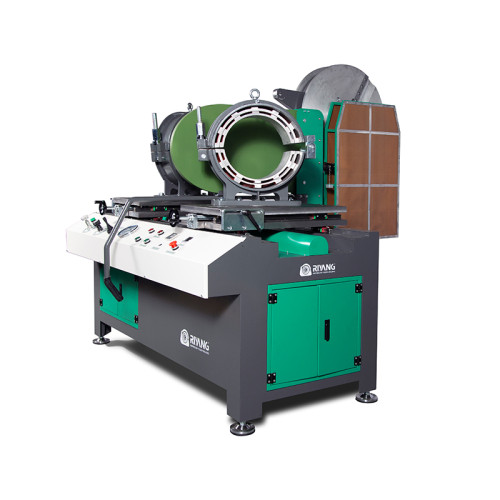

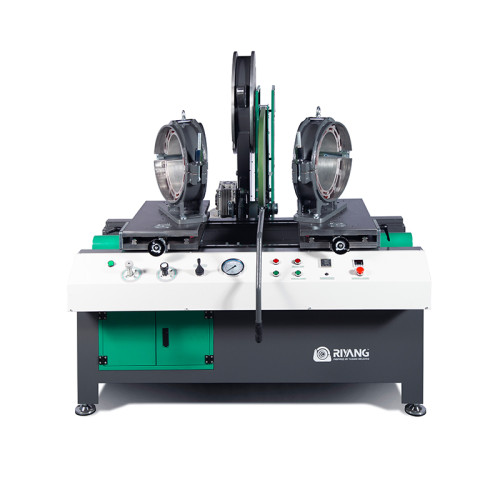

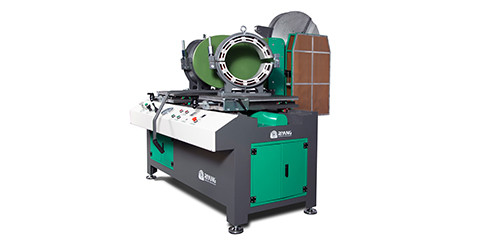

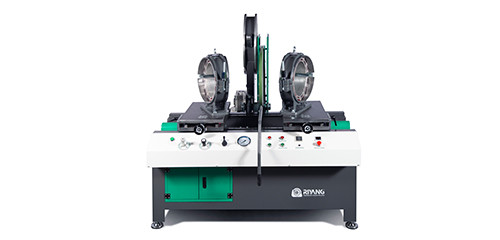

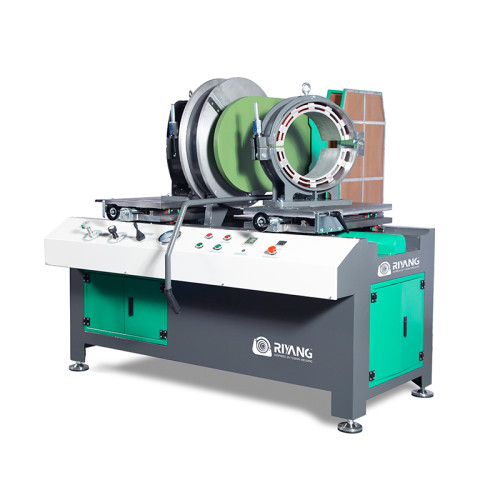

Fitting Fabrication Machine ATLA400 Introduction

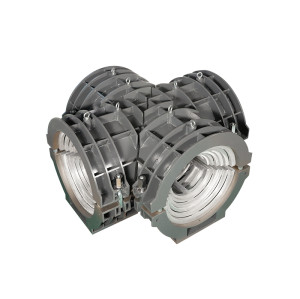

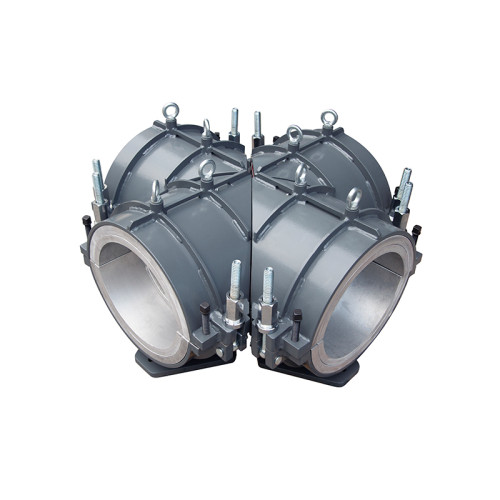

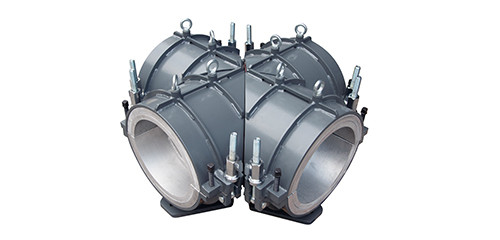

The ATLA400 is a versatile fitting fabrication machine designed for producing high-quality plastic fittings, including elbows, tees, crosses up to 400mm, and wyes up to 315mm. Compatible with materials such as HDPE, PP, and PVDF, it utilizes interchangeable jaws to accommodate various sizes, ensuring flexibility and precision in fabrication. Ideal for workshop use, the ATLA400 offers reliable performance for a wide range of piping applications.
Fitting Fabrication Machine ATLA400 Features
Fitting Fabrication Machine ATLA400 Technical Parameters
| Product model | ATLA400 |
| Welding Range O.D. | 90-400mm |
Elbows | OD 90mm - 400mm ( 0º - 90º ) |
Wyes ( *Option ) | OD 90mm - 315mm ( 45º - 60º ) |
Tees & Crosses | OD 90mm - 400mm |
Power Supply | 12.3KW |
Pistion Area | 10.9 CM² |
| Power supply | 380VAC, 3 PHASE, 50/60HZ |
| Gross Weight | 1744 KGS |
Packing Material | Plywood Box |
Machine Dimension | 1350*1350*1370mm |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
