Plastic Sheet Welding& Bending Machine RPZ2000
- Model
- RPZ2000
Item specifics
- Maximum Working Width
- 2000 mm
- Welding Thickness
- 3-20 mm
- Bending Thickness
- 3-20 mm
- Bending Angle:
- 0-95°
- Standard Applied
- DVS2207
- Weldable Materials
- PE, PP, PVDF, PVC, ABS etc
- Certificate
- CE
Review
Description
Detail Information

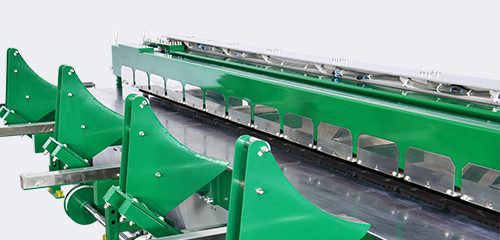

Plastic Sheet Welding&Bending Machine RPZ2000 Introduction
RPZ2000 supports wider sheets up to 2000 mm, offering enhanced capacity for mid-sized fabrication needs. With integrated flat welding, angle bending, and round forming capabilities, it enables multi-step processing on one platform. Featuring SMC pneumatics, precise alignment guides, and optional cooling systems, RPZ2000 boosts productivity and accuracy in chemical and environmental industries.
Plastic Sheet Welding&Bending Machine RPZ2000 Features
Plastic Sheet Welding&Bending Machine RPZ2000 Technical Parameters
| Product model | RPZ2000 |
| Maximum Working width | 2,000mm |
Machine Length | 3,700mm |
Machine width | 3,100mm |
Machine height | 1,220mm |
Welding Thickness | 3-20mm |
Bending Thickness | 3-20mm |
Bending Angle | 0-95° |
| Power supply | 230/400V 3/N/PE,50/60 Hz |
| Power consumption | 3.5+2.5*2KW |
Compressed Air Connection | 4-8bar |
Max. HeatingTemperature | 260°C |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
