Plastic Sheet Welding& Bending Machine RPZ1500
- Model
- RPZ1500
Item specifics
- Maximum Working Width
- 1500 mm
- Welding Thickness
- 3-15 mm
- Bending Thickness
- 3-15 mm
- Bending Angle:
- 0-95°
- Standard Applied
- DVS2207
- Weldable Materials
- PE, PP, PVDF, PVC, ABS etc
- Certificate
- CE
Review
Description
Detail Information

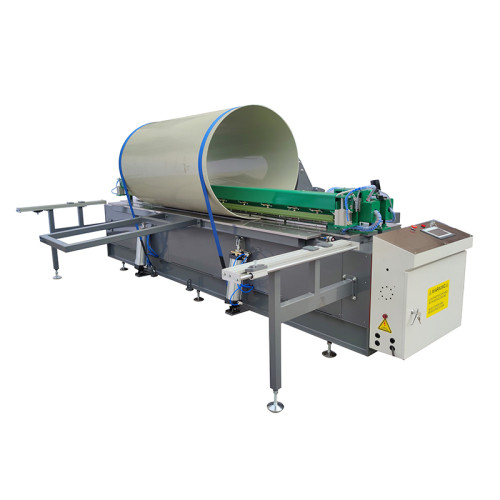

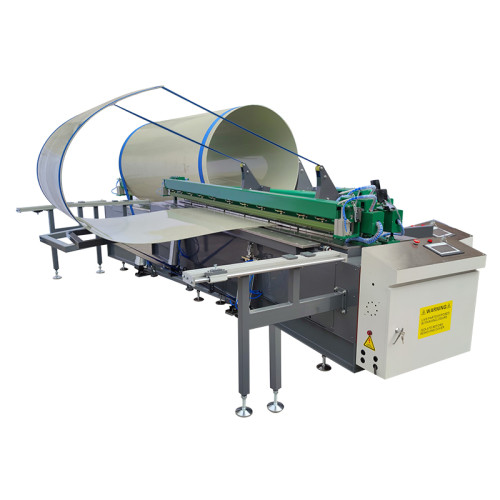

Plastic Sheet Welding&Bending Machine RPZ1500 Introduction
RPZ1500 is designed for precise and efficient fabrication of thermoplastic sheets up to 1500 mm wide. Combining flat welding, 0–95° bending, and roll bending in a single system, it is ideal for producing tanks, ducts, and structural components in compact spaces. Equipped with Mitsubishi PLC and digital temperature control, it ensures smooth operation and consistent results for PP, PE, and PVDF materials.
Plastic Sheet Welding&Bending Machine RPZ1500 Features
Plastic Sheet Welding&Bending Machine RPZ1500 Technical Parameters
| Product model | RPZ1500 |
| Maximum Working width | 1,500mm |
Machine Length | 3,200mm |
Machine width | 3,100mm |
Machine height | 1,220mm |
Welding Thickness | 3-15mm |
Bending Thickness | 3-15mm |
Bending Angle | 0-95° |
| Power supply | 230V 50/60 Hz |
| Power consumption | 3+2.5*2KW |
Compressed Air Connection | 4-8bar |
Max. HeatingTemperature | 260°C |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
