Pipe Fusion Machine V630 CNC20

Model: V630 CNC20

Item specifics

Welding Range in mm: 315-630mm

Welding Range in inch: 12" - 24" IPS

Power Supply: 380V±10%, 50/60HZ

Standard Applied: ISO21307, DVS2207 etc

Certificate: CE, ISO9001

Temperature Range: MAX. 280 ºC

Working Pressure Range: 0 - 120 BAR

Manufacturer & Logo: Riyang

Review

Description

Detail Information

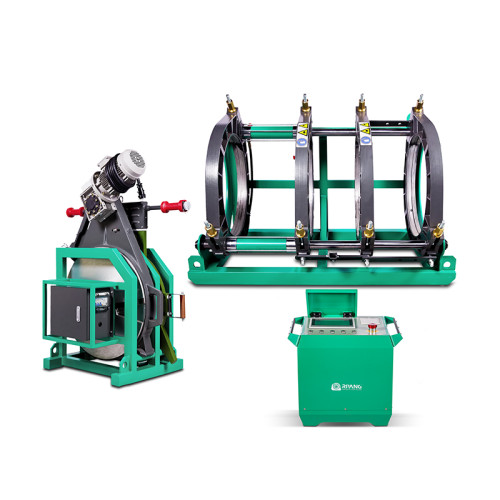

Pipe Fusion Machine V630 CNC20 Introduction

Designed for large-diameter pipe welding, the RIYANG CNC2.0 combines Siemens PLC precision with robust construction for 315–630mm applications. Meeting ISO 12176-1 and EU Machinery Directive 2006/42/EC requirements, it supports DVS, ISO, and ASTM standards with flexible parameter settings. The onboard data system records up to 10,000 joint histories, while real-time voltage, temperature, and pressure alerts maintain weld integrity across demanding conditions. All parameters adapt to pipe material and field environment, and complete weld reports are available via USB export or direct printing for project traceability. Includes a 2-year industry-leading warranty.

Pipe Fusion Machine V630 CNC Features

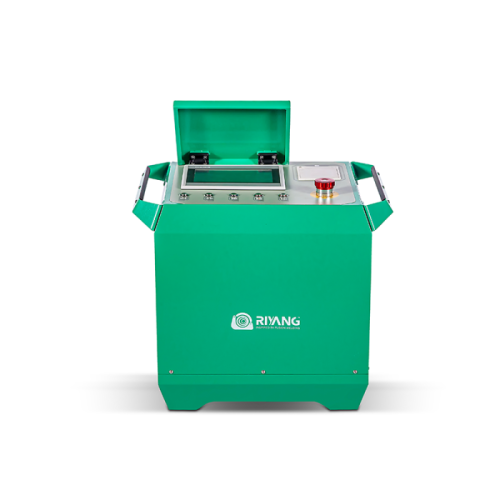

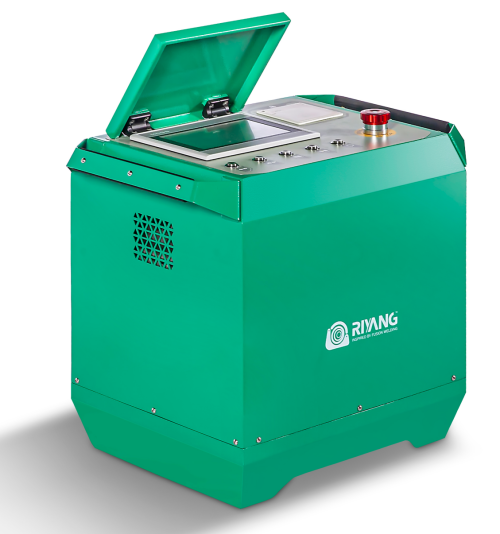

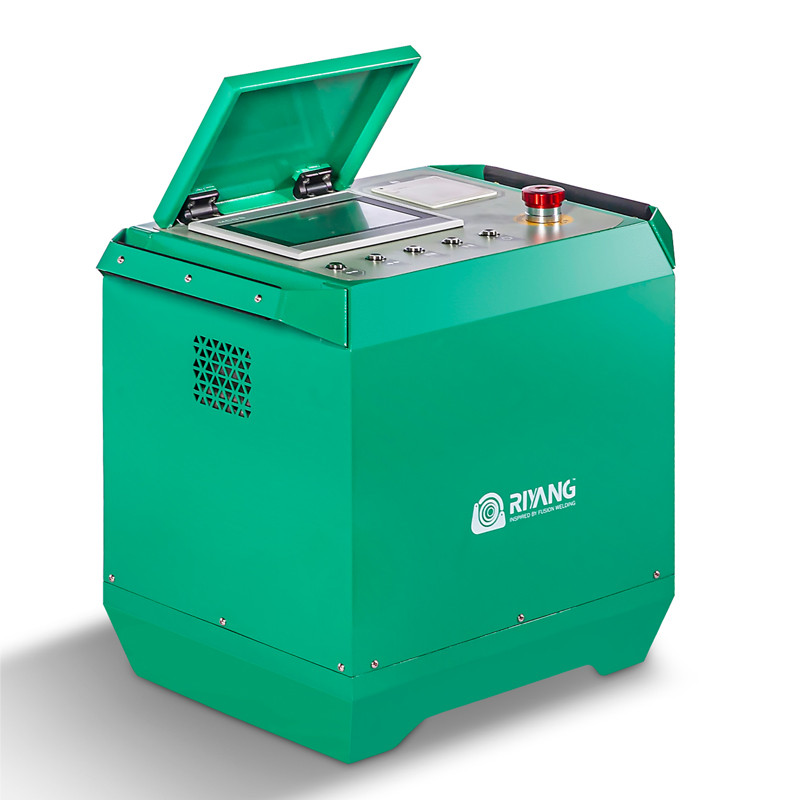

Versatile Control Box

One control box is compatible with machine models 450,500 and 630, enabling significant cost savings for users. It also allows for easy upgrades from manual to automatic configurations.

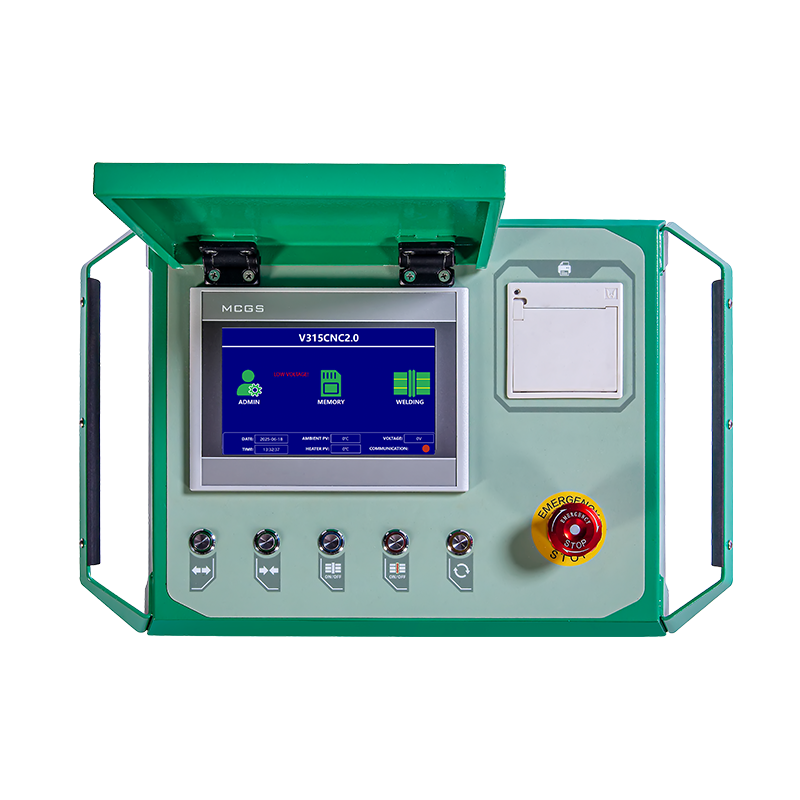

Integrated User Interface

Features a unified control panel with push-buttons and a touch screen for efficient operation and clear status monitoring.

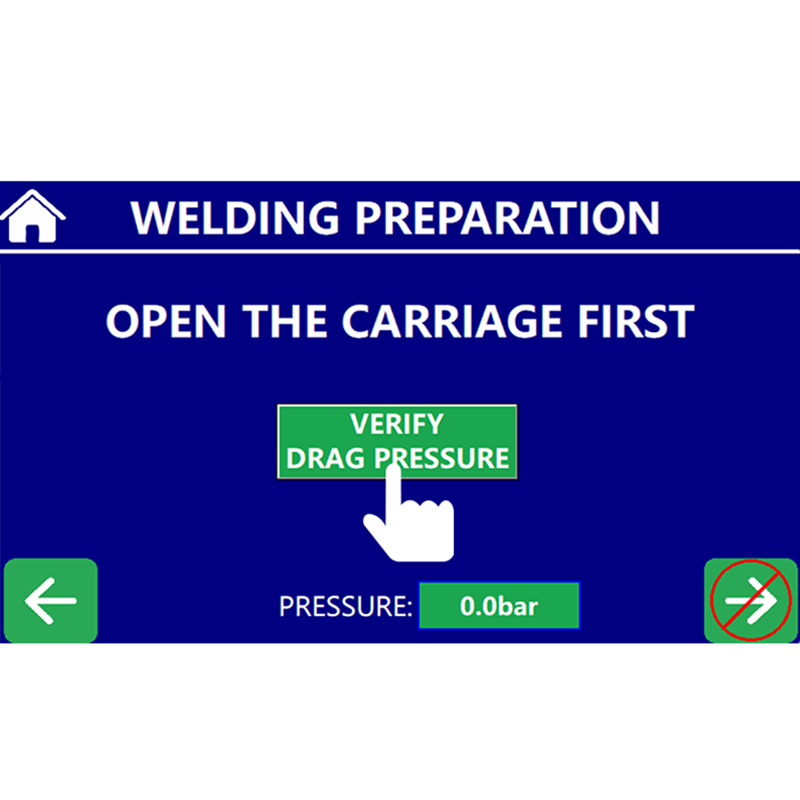

Obtain Drag Pressure with One Click

Achieve precise drag pressure effortlessly with a single click, streamlining the welding process and improving operational efficiency.
