Pipe Fusion Machine V500 CNC20
- Model
- V500 CNC20
Item specifics
- Welding Range in mm
- 200-500mm
- Welding Range in inch
- 8" - 20" IPS
- Power Supply
- 380V±10%, 50/60HZ
- Standard Applied
- ISO21307, DVS2207 etc
- Certificate
- CE, ISO9001
- Temperature Range
- MAX. 280 ºC
- Working Pressure Range
- 0 - 120 BAR
- Manufacturer & Logo
- Riyang
Review
Description
Detail Information

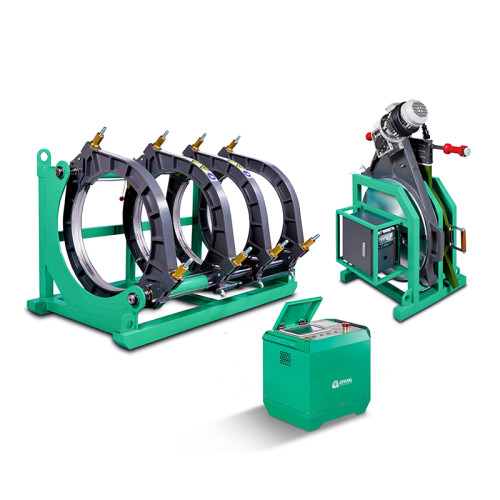

Pipe Fusion Machine V500 CNC20 Introduction
The RIYANG CNC2.0 automatic butt fusion machine delivers precision welding powered by Siemens PLC control. Compliant with ISO 12176-1 and the EU Machinery Directive 2006/42/EC, it accommodates major welding standards including DVS, ISO, and ASTM with fully adjustable parameters. The system logs up to 10,000 weld records and provides real-time monitoring of voltage, temperature, and pressure to safeguard weld quality. Settings can be fine-tuned per material and site conditions, and data exports via USB or printed labels give full traceability. Covered by a 2-year industry-leading warranty.
Pipe Fusion Machine V500 CNC Features

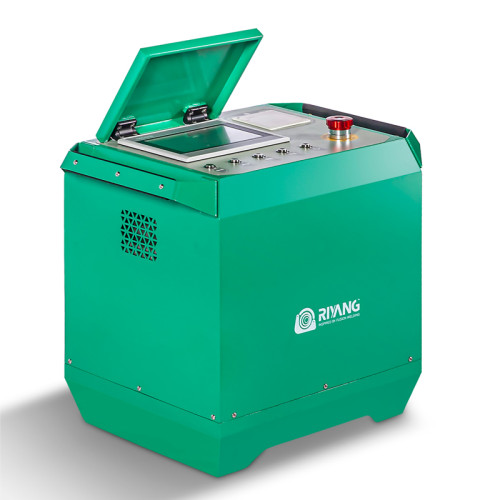

Versatile Control Box
One control box is compatible with machine models 450,500 and 630, enabling significant cost savings for users. It also allows for easy upgrades from manual to automatic configurations.
Integrated User Interface
Features a unified control panel with push-buttons and a touch screen for efficient operation and clear status monitoring.
Obtain Drag Pressure by One Click
Achieve precise drag pressure effortlessly with a single click, streamlining the welding process and improving operational efficiency.
Pipe Fusion Machine V500 CNC20 Technical Parameters
| Product model | V500 CNC20 |
| Welding Range O.D. | 200-500mm |
Welding Range Inch | 8" - 20" IPS |
Heater Power | 7.3 KW |
Trimmer Power | 1.5 KW |
Pump Power | 1.5 KW |
Working Pressure Range | 0 - 120 BAR |
| Power supply | 380V±10%, 50/60HZ |
| Gross Weight | 510 KG |
Packing Material | Plywood Box |
Max. HeatingTemperature | 280°C |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
