Model
V355 CNC

Item specifics

Welding Range in mm
90-355mm
Welding Range in inch
3" - 14" IPS
Power Supply
220V±10%, 50/60HZ
Standard Applied
ISO21307, DVS2207 etc
Certificate
CE, ISO9001
Tempreture Range
MAX. 320 ºC
Working Pressure Range
0 - 80 BAR

Review

Description

Detail Information

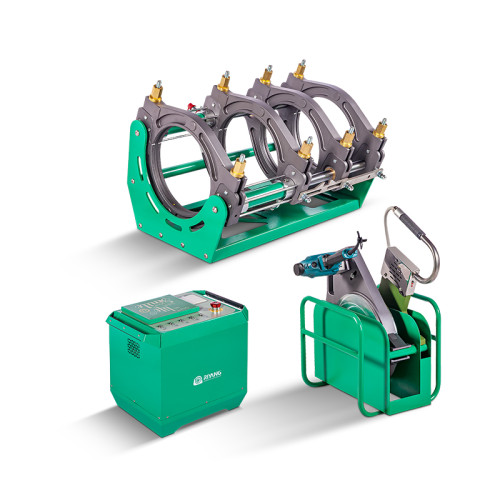

Pipe Fusion Machine V355 CNC Introduction
The RIYANG CNC2.0 is a high-precision automatic butt fusion machine powered by Siemens PLC, built to ISO 12176-1 and EU Machinery Directive 2006/42/EC standards. It supports major welding standards (DVS, ISO, ASTM) with customizable settings and stores up to 10,000 weld logs. Real-time alerts ensure welding accuracy by monitoring voltage, temperature, and pressure. Parameters can be adjusted based on material and environment, and weld data can be exported via USB or printed for traceability. Backed by a 2-year industry-leading warranty.

Pipe Fusion Machine V355 CNC Features

Enhanced Stability Frame Design

· Key hydraulic components, including seals and quick couplings, are sourced from renowned international brands to ensure long-lasting performance.

· Except for smaller models (160mm and 200mm), all machine frames adopt a 45-degree open structure, allowing easier pipe loading and release during setup.

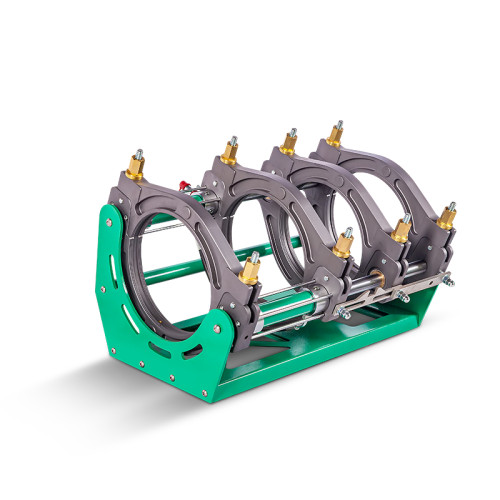

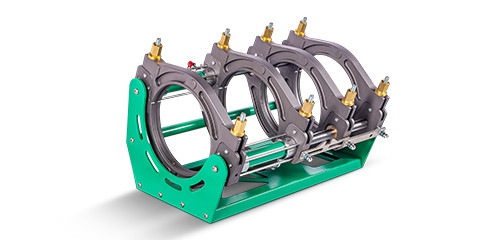

· The new-generation clamping system is made from reinforced aluminum alloy with enhanced hardness and deformation resistance.

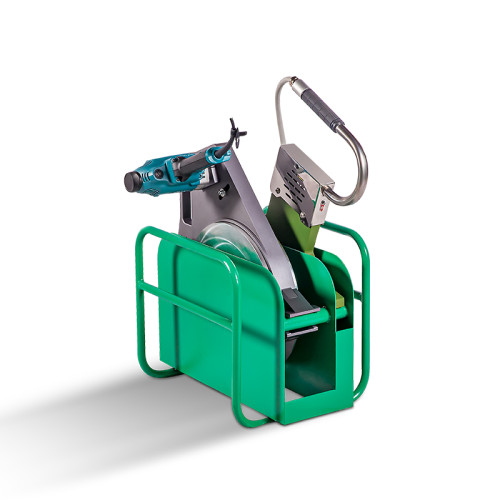

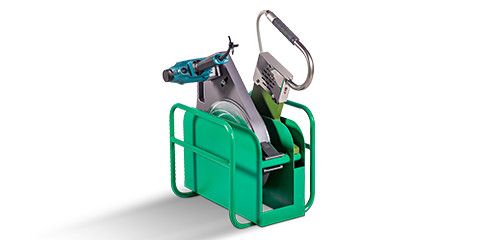

Premium Heating Plate & Safe Trimmer

· Plate temperature is precisely regulated within a ±3°C range, ensuring even heat distribution and consistent weld quality across the surface.

· A stainless steel protective shell guards against corrosion and increases durability, making it ideal for tough industrial environments.

· The next-generation facing tool delivers smoother, more consistent torque with improved lifespan, setting a new standard for performance in its class.

Multi-Model Compatibility

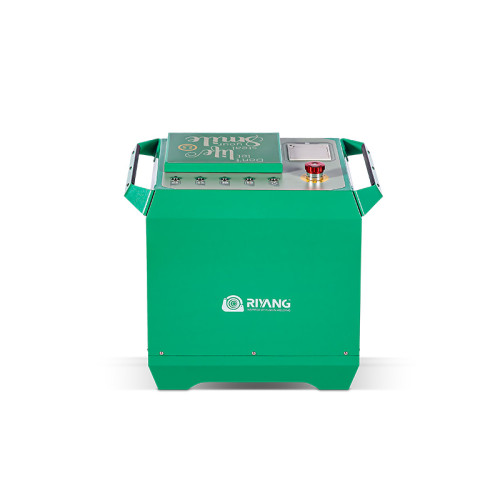

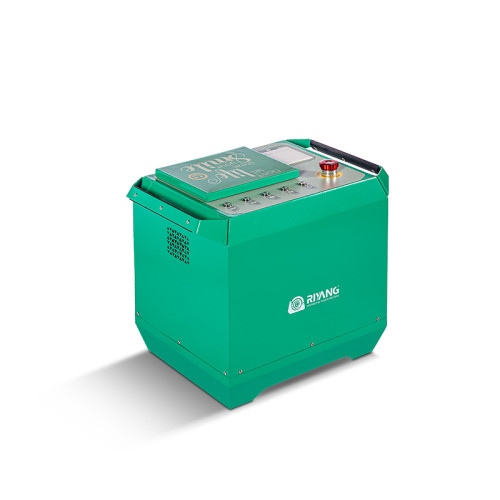

· A single control box supports all models from 160mm to 355mm, reducing the need for multiple units and streamlining both inventory and maintenance.

· The intuitive touchscreen interface delivers quick, accurate responses and is designed for easy, user-friendly operation.

· An integrated operator management system allows individual user accounts, ensuring full traceability and accountability for each welding task.

Pipe Fusion Machine V355 CNC Technical Parameters

Product model
V355 CNC
Welding Range O.D.
90-355mm
Welding Range Inch
3" - 14" IPS
Heater Power
3.0 KW
Trimmer Power
1.5 KW
Pump Power
0.75 KW
Working Pressure Range
0 - 80 BAR
Power supply
220V±10%, 50/60HZ
Gross Weight
259 KGS
Packing Material
Plywood Box
Max. HeatingTemperature
320°C
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.

File Downloads

For more product related parameter files, please contact us.
