Model
V160 CNC

Item specifics

Welding Range in mm
50-160mm
Welding Range in inch
2" - 6" IPS
Power Supply
220V±10%, 50/60HZ
Standard Applied
ISO21307, DVS2207/1, ASTM F2620 etc.
Certificate
CE, ISO9001
Tempreture Range
MAX. 280 ºC
Working Pressure Range
0 - 80 BAR

Review

Description

Detail Information

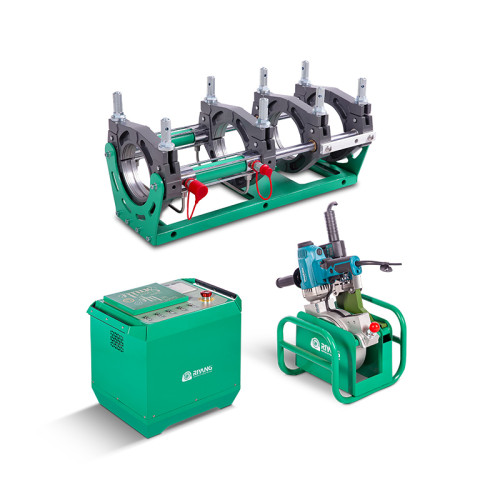

Pipe Fusion Machine V160 CNC Introduction
The RIYANG V160 CNC automatic hydraulic butt welding machine is designed for seamless joining of PE, PP, PPR, and PVDF pipes and molded fittings. Built with high-quality, long-lasting components, it ensures low maintenance requirements, reliable performance, and easy, user-friendly operation—making it ideal for demanding industrial applications.

Pipe Fusion Machine V160 CNC Features

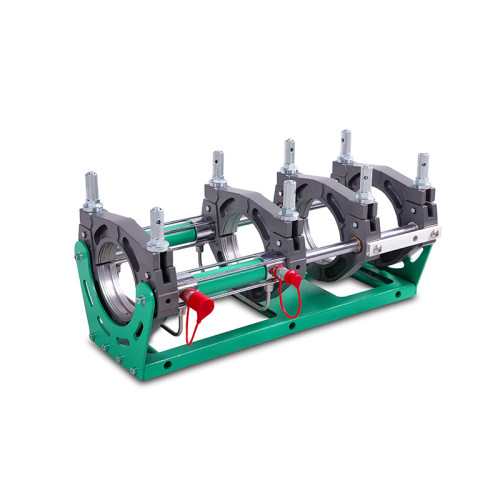

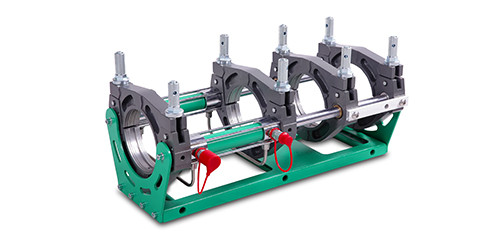

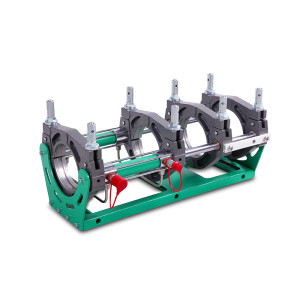

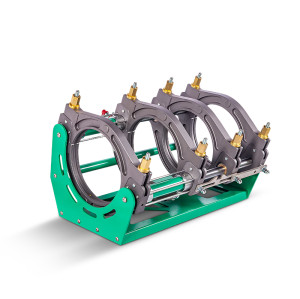

Reliable & Rigid Frame

· The clamping system is built from reinforced aluminum alloy, providing excellent strength, hardness, and resistance to deformation under heavy use.

· Shafts are precisely machined and treated with multi-layer surface plating to enhance structural stability and extend service life.

· Critical hydraulic components—such as seals and quick couplings—are sourced from trusted international brands to ensure consistent and reliable performance.

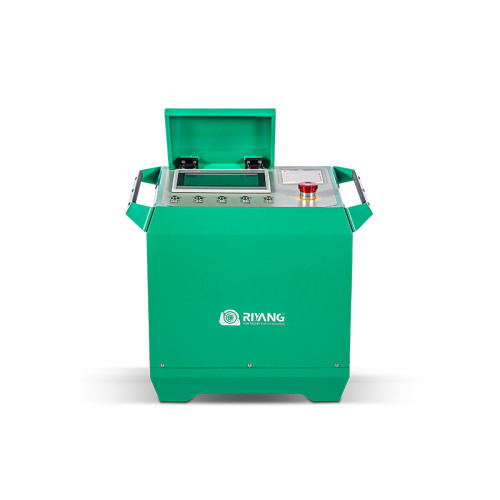

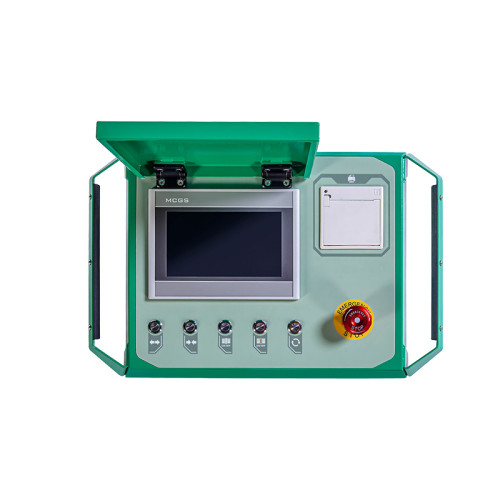

Compact & Smart Control

· Welding data can be exported via USB or printed directly, providing visual and auditable weld quality records.

· Supports remote diagnostics and firmware upgrades, allowing real-time technical support from the manufacturer and minimizing downtime.

· The control box is ergonomically designed, with an adjustable sunshade to reduce screen glare under direct sunlight.

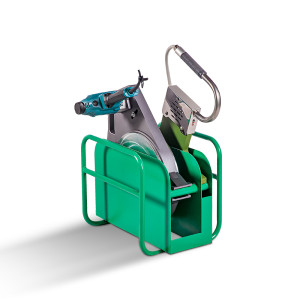

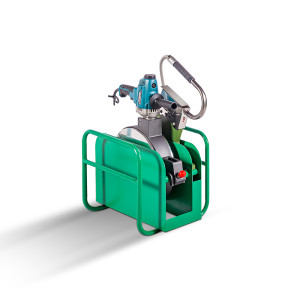

Precision Heating & Safe Trimming

· Temperature variation across the plate is controlled within ±3°C, ensuring uniform heat distribution for consistent weld quality.

· Stainless steel protective casing prevents corrosion and enhances durability in demanding work conditions.

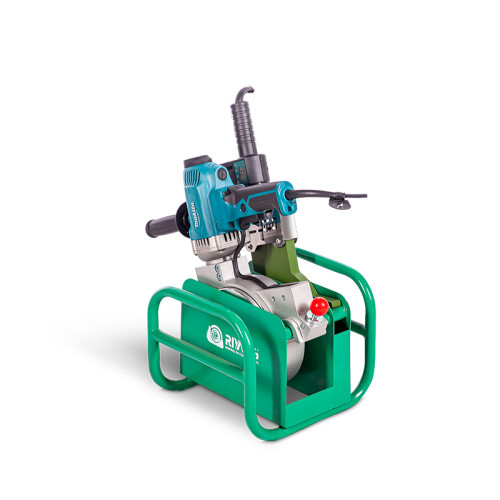

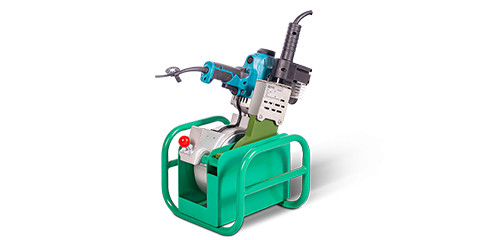

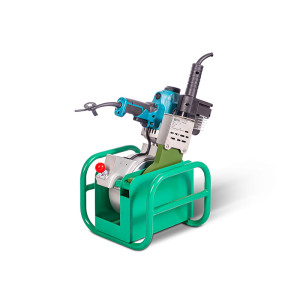

· The facing tool uses a globally recognized brand of power drill, making local replacement easy and minimizing after-sales delays.

Pipe Fusion Machine V160 CNC Technical Parameters

Product model
V160 CNC
Welding Range O.D.
50-160mm
Welding Range Inch
2" - 6" IPS
Heater Power
1.0 KW
Trimmer Power
0.75 KW
Pump Power
1.1 KW
Working Pressure Range
0 - 80 BAR
Power supply
220V±10%, 50/60HZ
Gross Weight
133 KGS
Packing Material
Plywood Box
Max. HeatingTemperature
280°C
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.

File Downloads

For more product related parameter files, please contact us.
