Pipe Fusion Machine V250 CNC
- Model
- V250 CNC
Item specifics
- Welding Range in mm
- (63）90-250mm
- Welding Range in inch
- (2") 3 - 6" IPS
- Power Supply
- 220V±10%, 50/60HZ
- Standard Applied
- ISO21307, DVS2207 etc
- Certificate
- CE, ISO9001
- Tempreture Range
- MAX. 320 ºC
- Working Pressure Range
- 0 - 80 BAR
Review
Description
Detail Information
Pipe Fusion Machine V250 CNC Introduction

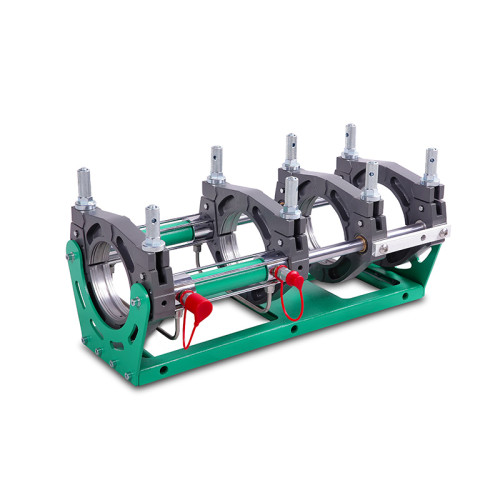

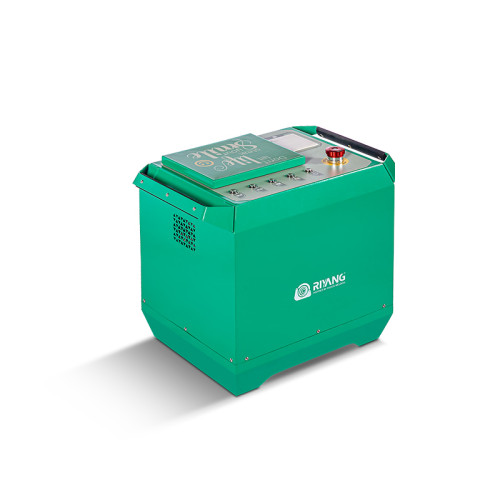

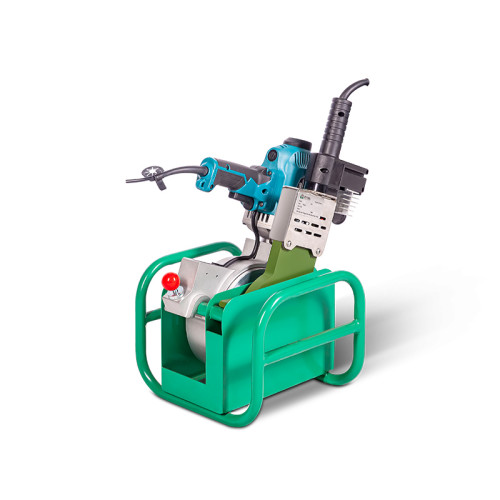

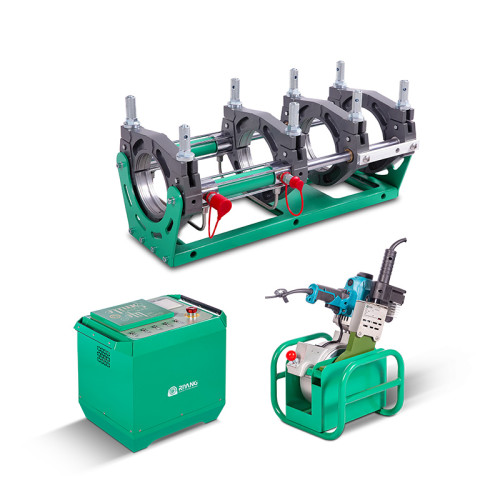

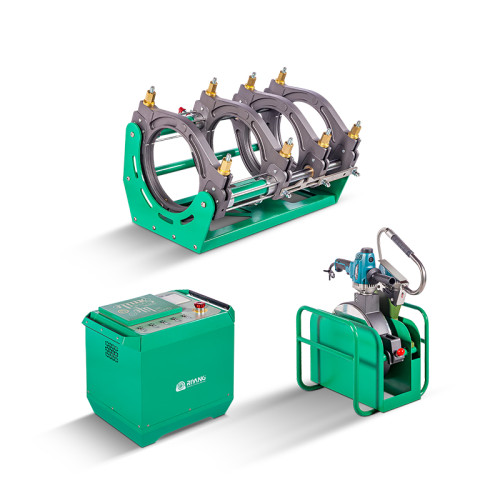

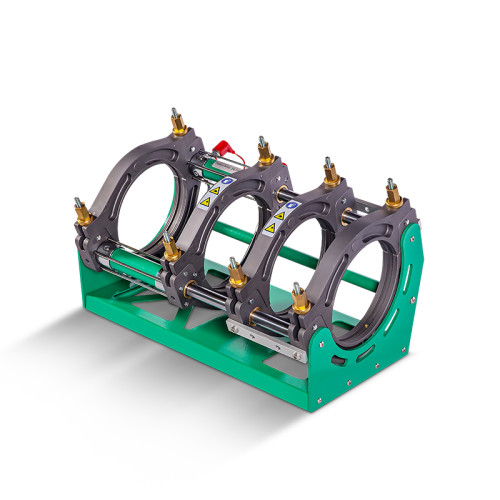

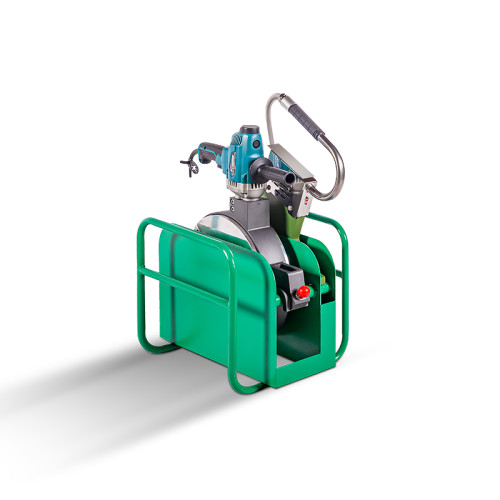

The RIYANG V250 CNC is an advanced automatic hydraulic butt welding machine designed for joining PE, PP, PPR, and PVDF pipes and molded fittings. Built with high-quality, long-life components, it ensures stable performance, reduced maintenance needs, and user-friendly operation. Its precision and reliability make it ideal for a wide range of thermoplastic piping applications.
Pipe Fusion Machine V250 CNC Features
Pipe Fusion Machine V250 CNC Technical Parameters
| Product model | V250 CNC |
| Welding Range O.D. | (63）90-250mm |
Welding Range Inch | 2" - 8" IPS |
Heater Power | 2.0 KW |
Trimmer Power | 1.5 KW |
Pump Power | 0.75 KW |
Working Pressure Range | 0 - 80 BAR |
| Power supply | 220V±10%, 50/60HZ |
| Gross Weight | 192 KGS |
Packing Material | Plywood Box |
Max. HeatingTemperature | 320°C |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
