Pipe Fusion Machine V200 CNC
- Model
- V200 CNC
Item specifics
- Welding Range in mm
- 63-200mm
- Welding Range in inch
- 2" - 6" IPS
- Power Supply
- 220V±10%, 50/60HZ
- Standard Applied
- ISO21307, DVS2207 etc
- Certificate
- CE, ISO9001
- Tempreture Range
- MAX. 320 ºC
- Working Pressure Range
- 0 - 80 BAR
Review
Description
Detail Information

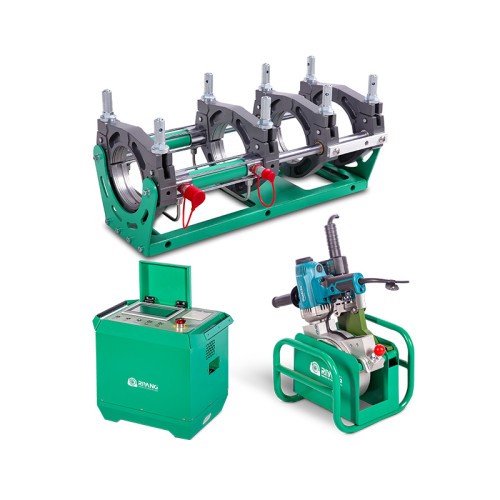

Pipe Fusion Machine V200 CNC Introduction
The RIYANG V200 CNC automatic hydraulic butt welding machine is specially designed for joining PE, PP, PPR, and PVDF pipes and molded fittings. It uses high-quality, durable components to ensure long service life, resulting in reliable performance with minimal maintenance. Its user-friendly design makes operation smooth and efficient, ideal for various industrial applications.
Pipe Fusion Machine V200 CNC Features
Pipe Fusion Machine V200 CNC Technical Parameters
| Product model | V200 CNC |
| Welding Range O.D. | 63-200mm |
Welding Range Inch | 2" - 6" IPS |
Heater Power | 1.5 KW |

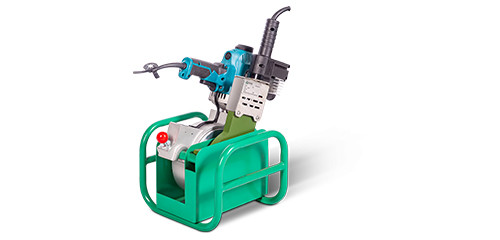

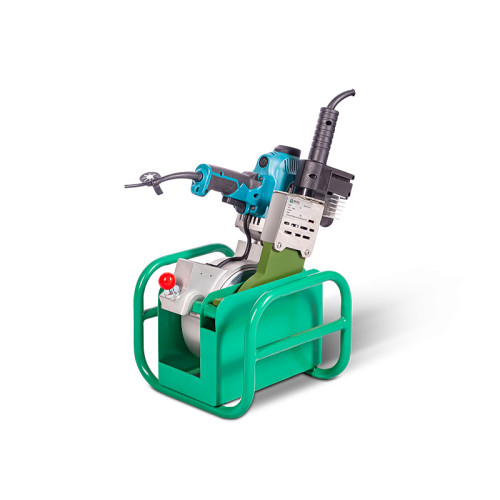

Trimmer Power | 0.75 KW |
Pump Power | 0.75 KW |
Working Pressure Range | 0 - 80 BAR |
| Power supply | 220V±10%, 50/60HZ |
| Gross Weight | 156 KGS |
Packing Material | Plywood Box |
Max. HeatingTemperature | 320°C |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
