Plastic Sheet Bending Machine RZW1500
- Model
- RZW1500
Item specifics
- Maximum Bending Width
- 1500 mm
- Maximum Bending Thickness
- 15 mm
- Bending Angle:
- 0-95°
- Standard Applied
- DVS2207
- Weldable Materials
- PE, PP, PVDF, PVC, ABS etc
- Certificate
- CE
- Welding Type
- Plastic Sheet Bending
Review
Description
Detail Information

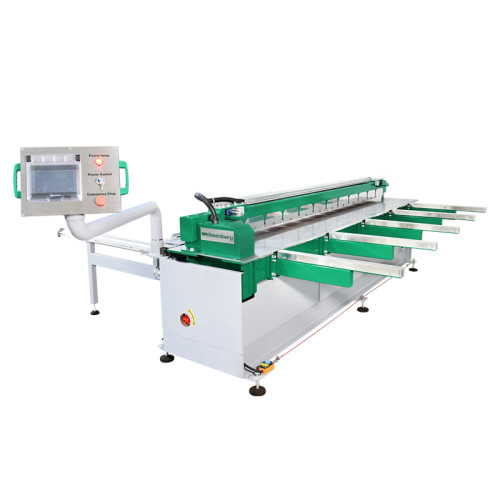

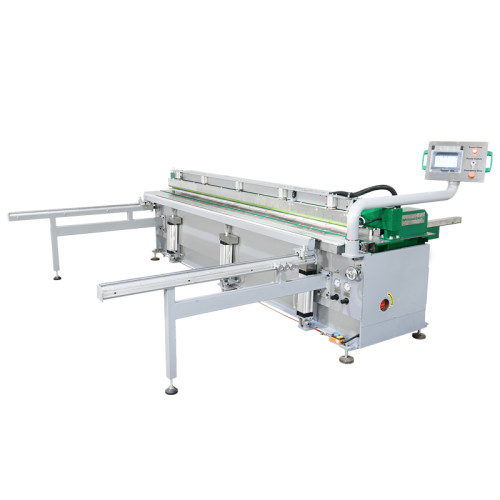

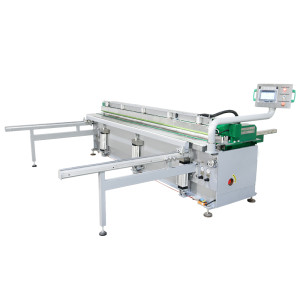

Plastic Sheet Bending Machine RZW1500 Introduction
The RZW1500 is a compact and efficient plastic sheet bending machine designed for thermoplastics like PP, PE, and PVC, featuring a 1500mm maximum bending width, precise digital temperature control, adjustable 0°–95° bending angles, and a sturdy frame to minimize vibration, ensuring high accuracy and durability; it is ideal for manufacturing plastic tanks, chemical containers, environmental equipment, and custom parts with ease of operation for all skill levels.
Plastic Sheet Bending Machine RZW1500 Features
Plastic Sheet Bending Machine RZW1500 Technical Parameters
| Product model | RZW1500 |
| Maximum Working width | 1,500mm |
Machine Length | 2,100mm |
Machine width | 2,800mm |
Machine height | 1,220mm |
Bending Angle | 0-95° |
Bending Thickness | 3-20mm |
| Power supply | 230V 50/60 Hz |
| Power consumption | 2*2KW |
Compressed Air Connection | 4-8bar |
Max. HeatingTemperature | 260°C |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
