Plastic Sheet Bending Machine RZW3000
- Model
- RZW3000
Item specifics
- Maximum Bending Width
- 3000 mm
- Maximum Bending Thickness
- 25 mm
- Bending Angle:
- 0-95°
- Standard Applied
- DVS2207
- Weldable Materials
- PE, PP, PVDF, PVC, ABS etc
- Certificate
- CE
- Welding Type
- Plastic Sheet Bending
Review
Description
Detail Information

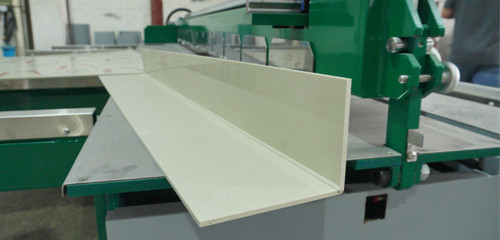

Plastic Sheet Bending Machine RZW3000 Introduction
The Weissenberg RZW3000 is designed for precise bending of thermoplastic sheets such as PP, PE, and PVC, with a maximum working width of 3000mm and a bending thickness range of 3–25mm. It features accurate ±5°C temperature control and a 0–95° adjustable bending angle, ensuring smooth and consistent folds. Ideal for medium-format sheet processing in chemical, plating, and ventilation applications.
Plastic Sheet Bending Machine RZW3000 Features
Plastic Sheet Bending Machine RZW3000 Technical Parameters
| Product model | RZW3000 |
| Maximum Working width | 3,000mm |
Machine Length | 3,700mm |
Machine width | 3,000mm |
Machine height | 1,150mm |
Bending Angle | 0-95° |
Bending Thickness | 3-25mm |
| Power supply | 230/400V 3/N/PE,50/60 Hz |
| Power consumption | 4.5*2KW |
Compressed Air Connection | 4-8bar |
Max. HeatingTemperature | 260°C |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
