Pipe Fusion Machine V1600

Model: V1600

Item specifics

Welding Range in mm: 1000-1600mm

Welding Range in inch: 42" - 63" IPS

Power Supply: 380V±10%, 50/60 HZ

Standard Applied: ISO21307, DVS2207/1, ASTM F2620 etc.

Certificate: CE, ISO9001

Tempreture Range: MAX. 320 ºC

Working Pressure Range: 0 - 160 BAR

Manufacturer & Logo: Riyang

Review

Description

Detail Information

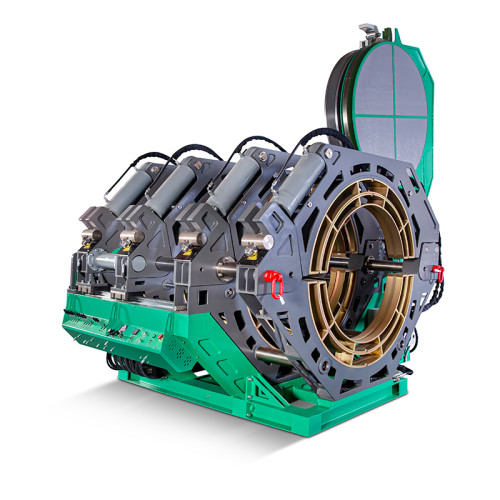

Pipe Fusion Machine V1600 Introduction

The RIYANG V1600 Butt Fusion Welding Machine offers precise, reliable performance across a wide range of demanding applications. It is ideal for water supply systems, gas distribution networks, industrial pipelines, and mining operations, ensuring strong, leak-free joints. With its robust design and consistent welding quality, the V1600 is built to perform in tough environments and meet the highest standards of reliability and efficiency.

Pipe Fusion Machine V1600 Features

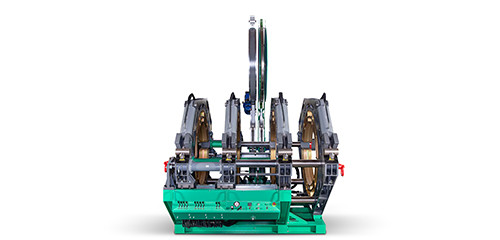

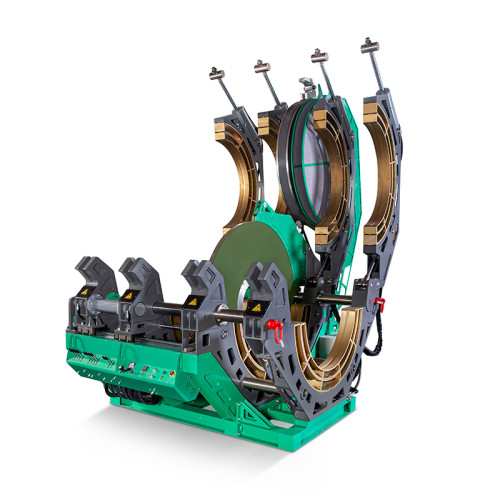

Frame Design

Adopting the innovative "3+1" design, the frame provides substantial assistance when welding short spigot fittings. The robust construction ensures stability during operation. Key hydraulic components, including oil seals, quick connectors, and pressure valves, are imported from top-notch suppliers in Japan, the United States, and Italy.

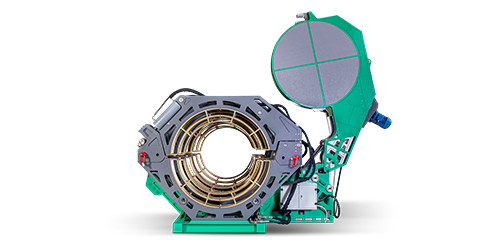

Heating Plate

The increased thickness of the heating plate guarantees minimal temperature differentials, contributing to uniform and reliable fusion. The use of industry-leading Teflon material reduces the adhesion of the heating plate to melted plastic, ensuring smooth operation.

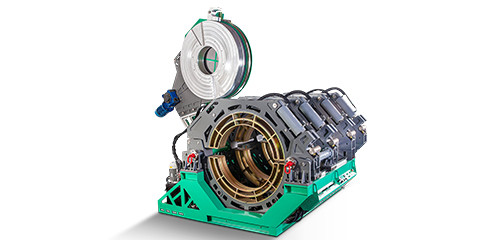

Milling Cutter

Equipped with a powerful milling cutter, featuring a single-sided double-blade design for enhanced efficiency in pipe milling. The design facilitates more effective and precise milling of pipes.

Pipe Fusion Machine V1600 Technical Parameters

Product model	V1600
Welding Range O.D.	1000-1600mm
Welding Range Inch	42" - 63" IPS
Heater Power	42.0 KW
Trimmer Power	7.5 KW
Pump Power	3.0 KW
Working Pressure Range	0 - 160 BAR

Power supply	380V±10%, 50/60 HZ
Gross Weight	7800 KG
Packing Material	Plywood Box
Max. HeatingTemperature	320°C

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
