Plastic Sheet Butt Welder WeiBond 7000
- Model
- WeiBond 7000
Item specifics
- Maximum Welding Width
- 7000 mm
- Maximum Welding Thickness
- 40 mm
- Standard Applied
- DVS2207
- Weldable Materials
- PE, PP, PVDF, PVC, ABS etc
- Welding Type
- Plastic Sheet Butt Welding
- Certificate
- CE
Review
Description
Detail Information

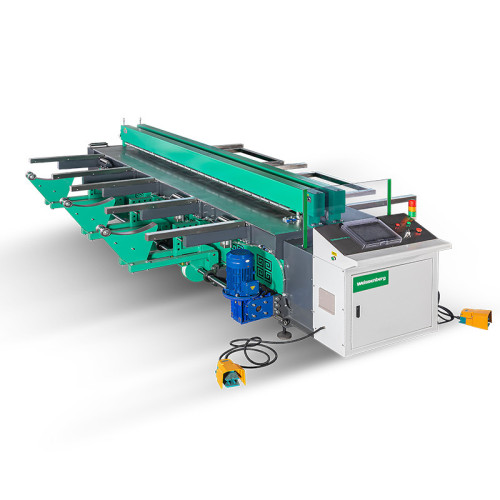

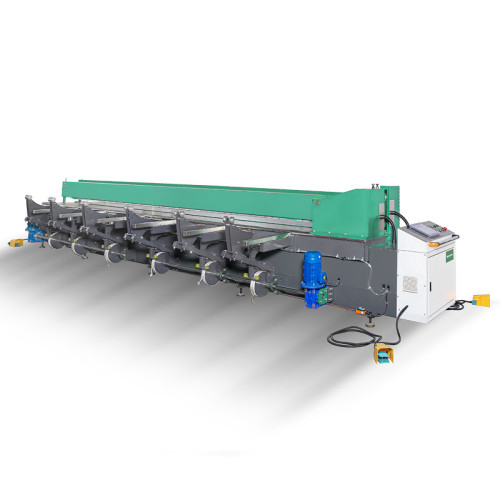

Plastic Sheet Butt Welder WeiBond 7000 Introduction
The Weissenberg WeiBond 7000 is built for large plastic sheet welding up to 7,000mm wide. It supports PP, PE, and other thermoplastics with precise temperature and pressure control. Featuring a sturdy frame and high-density clamps, it ensures stable, consistent welds. Key parts come from top international brands for durability and performance, ideal for chemical, environmental, and electroplating industries.
Plastic Sheet Butt Welder WeiBond 7000 Features
Plastic Sheet Butt Welder WeiBond 7000 Technical Parameters
|
Product model
|
WeiBond 7000
|
|
Maximum Working width
|
7,000mm
|
|
Machine Length
|
9,280mm
|
|
Machine width
|
2,850mm
|
|
Machine height
|
1,250mm
|
|
PE (0.15 N/mm²)
|
3-40
|
|
PP (0.10 N/mm²)
|
3-40
|
|
PVDF (0.10 N/mm²)
|
3-40
|
|
Power supply
|
230/400V
3/N/PE,50/60 Hz |
|
Power consumption
|
11KW
|
|
Compressed Air Connection
|
4-8bar
|
|
Max. Heating Temperature
|
260°C
|
|
Optional Auxiliary Tools
|
90° degree angle device
Rolling auxiliary device |
* Parameters are measured under standard operating conditions and may vary in actual use.
