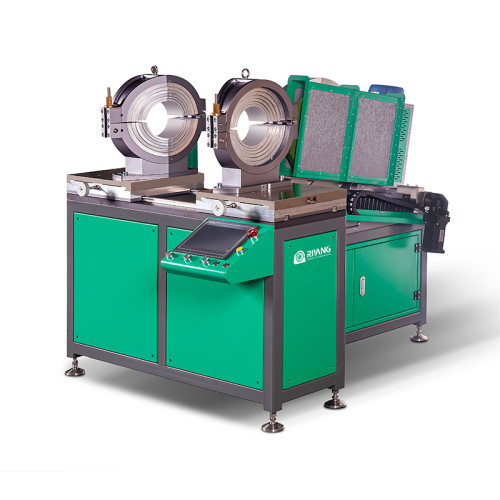

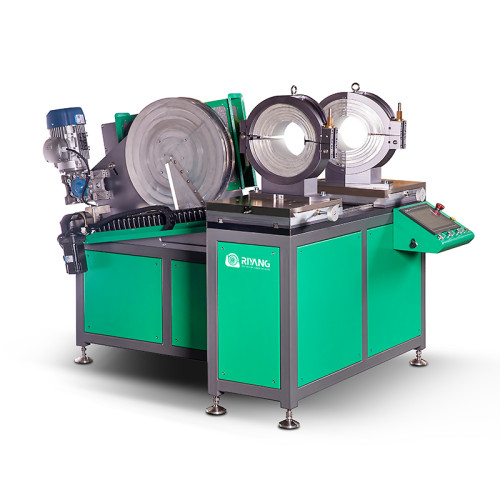

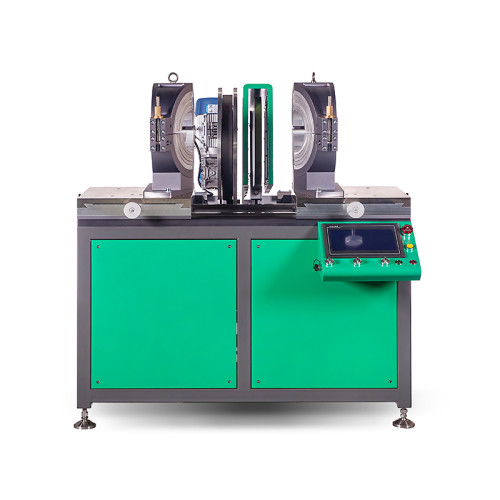

Fitting Fabrication Machine ATLA315 CNC
- Model
- ATLA315 CNC
Item specifics
- Working Range in mm
- 90- 315 mm
- Working Range in Inch
- 3" IPS - 12" IPS
- Fabricated Fitting Type
- Bend, Tee, Cross & Wye
- Fusion Welding Standard Applied
- ISO21307, DVS2207, ASTM F2620 etc.
- Certificate
- CE, ISO9001
- Materials
- HDPE - PP - PPR - PVDF
Review
Description
Detail Information
Fitting Fabrication Machine ATLA315 CNC Introduction
The ATLA315CNC is a high-performance CNC-controlled HDPE fitting fabrication machine, designed for precise and efficient production of small-diameter thermoplastic fittings ranging from 90mm to 315mm. Ideal for fabricating elbows, tees, crosses, and wyes, this versatile machine works with HDPE, PP, and PVDF materials. With advanced CNC control, the ATLA315CNC ensures high accuracy, consistent quality, and fast production, making it perfect for manufacturers in the HDPE and plastic piping industry who require reliable and efficient fitting fabrication solutions.
Fitting Fabrication Machine ATLA315 CNC Features
Fitting Fabrication Machine ATLA315 CNC Technical Parameters
| Product model | ATLA315 CNC |
| Welding Range in mm | 90-315mm |
Weldng Range in Inch | 3" IPS - 12" IPS |
Fabricated Fitting Type | Bend, Tee, Cross & Wye |
| Power Supply | 380VAC, 3 PHASE, 50/60HZ |
| Fittings Types Fabricated | 0°–90° (Elbow, Tee, Cross), 45°/60° (Wye) |
Control System | Automatic |
Total Power Consumption | 10.0 kW |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
