Weldy Extrusion Welder EX3 Plus
- Model
- Booster EX3 Plus
Item specifics
- Article
- 802.930
- Welding Rod
- ø 3–4 mm / 0.12–0.16 in
- Material output ø 3 mm
- 2.4 kg/h
- Material output ø 4 mm
- 3.4 kg/h
- Weight
- 7.2 kg
- Approvals
- CE; UKCA
Review
Description
Detail Information

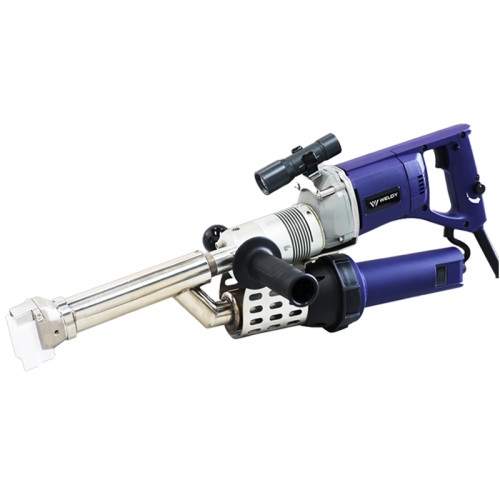

Weldy Extrusion Welder EX3 Plus Introduction
EX3 Plus is a new digital display welding gun with an extrusion rate of up to 3.4 kg/h. It is equipped with an LED light for easy observation when welding inside containers. The digital display allows real-time monitoring of the gun temperature for more controlled welding. Adjustable extrusion settings and compatible welding shoes make it suitable for a wider range of applications.
Weldy Extrusion Welder EX3 Plus Features
• Digital display for real-time temperature, stepless power adjustment
• Adjustable extrusion speed, suitable for various welding applications
• Built-in overload protection with automatic reset in 5 seconds
• Equipped with LED light for visible welding process
• Automatic cooling after shutdown to protect core components
• Pre-installed metal heat shield for enhanced operational safety
Weldy Extrusion Welder EX3 Plus Technical Parameters
| Article | 802.930 |
| Voltage | 230 V |
Frequency | 50/60 Hz |
Power | 3000 W |
Welding rod | ø 3–4 mm / 0.12–0.16 in |
Material output ø 3 mm | 2.4 kg/h |
Material output ø 4 mm | 3.4 kg/h |
| Welding materials | HDPE; LDPE; LLDPE; PP |
| Dimensions (L×W×H） | 600 × 100 × 220mm |
Weight | 7.2 kg |
Plug | EU, 2 poles, 16A |
Approvals | CE; UKCA |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
