Pipe Band Saw TPS400
- Model
- TPS400
Item specifics
- Cutting Range in mm
- 90 - 400 mm
- Rated Power
- 2.5KW
- Line Speed
- 0 - 255M/MIN
- Space Occupation
- 560CM * 560CM
- Certificate
- CE, ISO9001
- Materials
- HDPE - PP - PPR - PVDF - PVC
Review
Description
Detail Information
Pipe Band Saw TPS400 Introduction

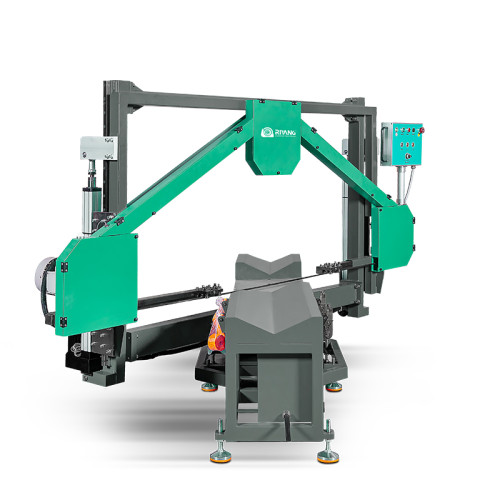

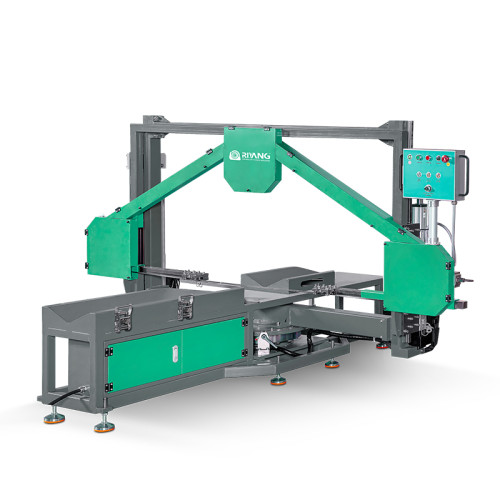

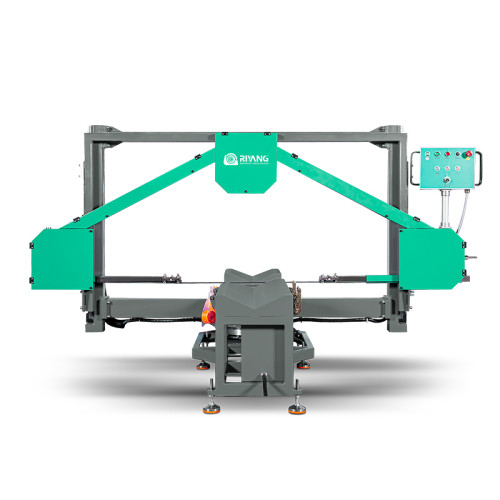

The TPS400 is a hydraulic workshop band saw for cutting HDPE, PP, PVDF, PPR, and PVC pipes from 90mm to 400mm in diameter. Featuring precise angle adjustment from -45° to 67.5° and a body mounted on slewing bearings for easy manual movement, it pairs perfectly with the ATLA400 fitting machine. A mobile control panel allows operators to safely manage saw movement and cutting speed, while heavy-duty tie-down straps ensure secure manual pipe clamping during cutting.
Pipe Band Saw TPS400 Features
Pipe Band Saw TPS400 Technical Parameters
| Product model | TPS400 |
| Cutting Range O.D. | 90-400mm |
Rated Power | 2.5KW |
Line Speed | 0 - 255M/MIN |
Space Occupation | 560CM * 560CM |
MAX. Cutting Angle | 67.5º |
| Power supply | 380VAC, 3 PHASE, 50/60HZ |
Packing Material | Plywood Box |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
