CNC Cutting Machine FlexCut 3000
- Model
- FlexCut 3000
Item specifics
- Max. Cutting Length
- 3,150 mm
- Max. Cutting Thickness
- 80 mm
- Main Motor Power
- 2.5 kw
- Cutting Angle
- 90°/45°(optional)
- Dimension L x W x H(mm)
- 3050x3150x1000
- Certificate
- CE
Review
Description
Detail Information

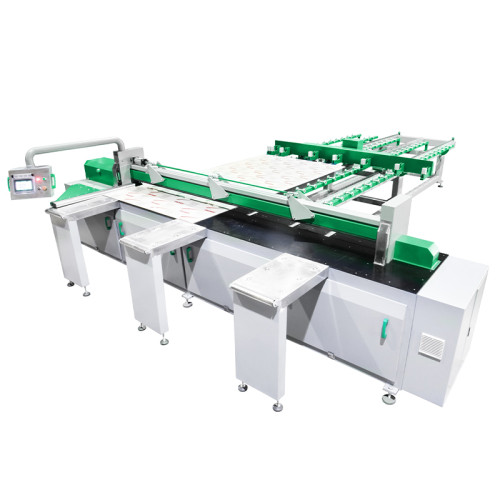

CNC Cutting Machine FlexCut 3000 Introduction
The Weissenberg CNC Cutting Machine FlexCut 3000 is designed specifically for precision cutting of plastic sheets up to 3000mm in width. Engineered for industrial use, it supports fully automatic continuous cutting, significantly boosting production efficiency while ensuring clean, accurate cuts. Ideal for large-format sheet processing, this machine combines reliability, speed, and user-friendly operation—making it a powerful solution for modern plastic fabrication workshops.
CNC Cutting Machine FlexCut 3000 Features
1. Extra-Wide Cutting Capacity – Designed to handle plastic sheets up to 3000mm in width, perfect for processing PP, PE, and PVC materials with ease.
2. High-Precision Performance – Fitted with industrial-grade linear guide rails to ensure smooth, accurate, and repeatable cutting results.
3. Adjustable Cutting Speed – Variable speed control allows fine-tuning based on material type and thickness, optimizing both quality and efficiency.
4. Low Maintenance Structure – Streamlined mechanical design enables quick blade replacement and easy cleaning, reducing downtime.
CNC Cutting Machine FlexCut 3000 Technical Parameters
| Product model | FlexCut 3000 |
| Spindle speed | 4000rpm |
Max. Cutting Length(mm） | 3,150 |
Max. Cutting Thickness (mm) | 80 |
Main Motor Power (kw) | 2.5 |
Cutting Angle | 90°/45°(optional) |
Dimension LxWxH (mm) | 5250*5500*1650 |
Power | 380V, 50/60HZ |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
