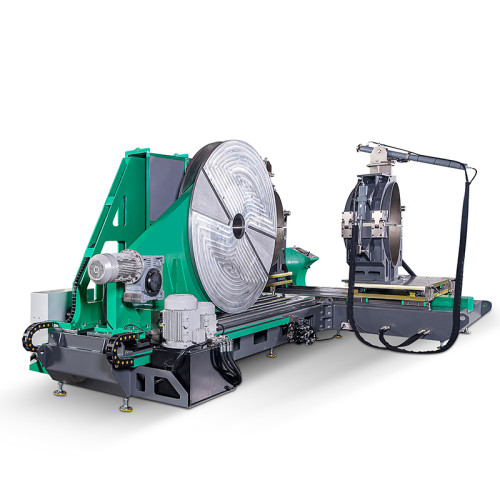

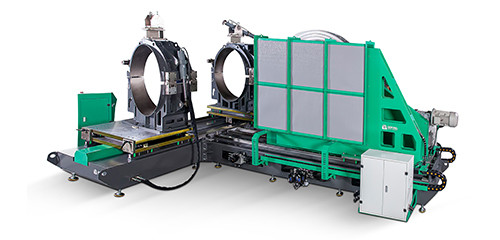

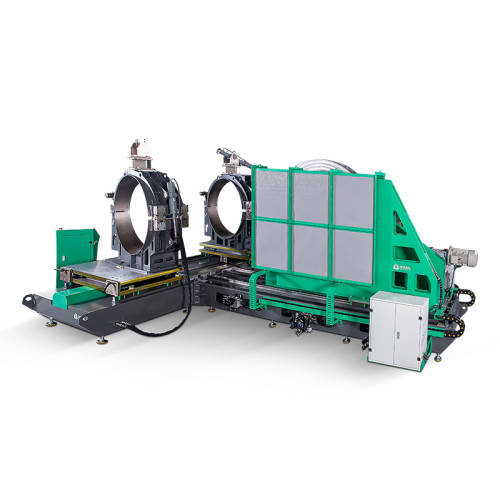

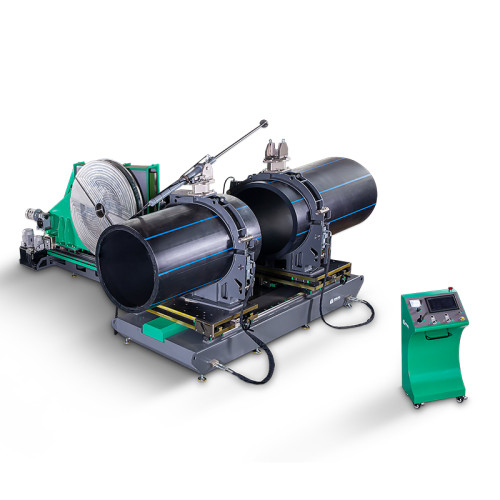

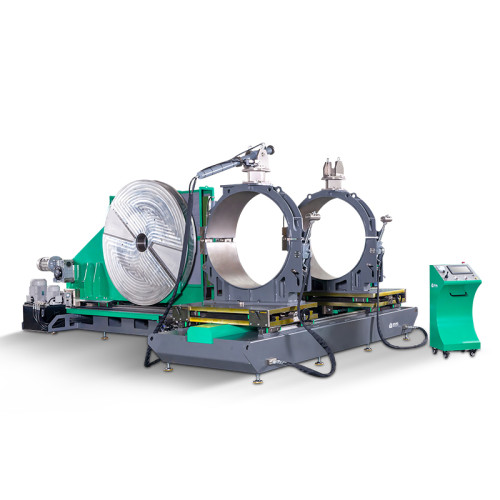

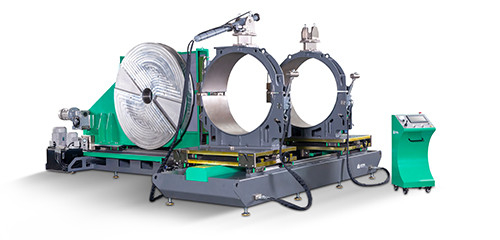

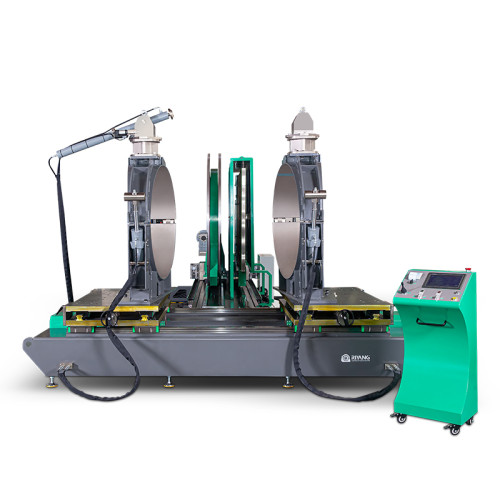

Fitting Fabrication Machine ATLA1200 CNC
- Model
- ATLA1200 CNC
Item specifics
- Working Range in mm
- 630 - 1200 mm
- Working Range in Inch
- 24" IPS - 48" IPS
- Fabricated Fitting Type
- Bend, Tee, Cross & Wye
- Fusion Welding Standard Applied
- ISO21307, DVS2207, ASTM F2620 etc.
- Certificate
- CE, ISO9001
- Materials
- HDPE, PP, PVDF etc.
Review
Description
Detail Information
Fitting Fabrication Machine ATLA1200 CNC Introduction
The ATLA1200 CNC is a high-performance fabrication machine for producing large-diameter plastic fittings—elbows, tees, crosses, and wyes—up to 1200mm. Compatible with HDPE, PP, and PVDF, it features interchangeable jaws for flexible size changes, making it ideal for precision work in industrial and workshop environments.
Fitting Fabrication Machine ATLA1200 CNC Features
Fitting Fabrication Machine ATLA1200 CNC Technical Parameters
| Product model | ATLA1200 CNC |
| Welding Range in mm | 630-1200mm |
Welding Range in inch | 24" IPS - 48" IPS |
Fittings Types Fabricated | 0°–90° (Elbow, Tee, Cross), 45°/60° (Wye) |
| Power Supply | 380VAC, 3 PHASE, 50/60HZ |
Applicable Materials | HDPE, PP, PVDF |
Control System | Manual or Automatic |
Total Power Consumption | 92 kW |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
File Downloads
For more product related parameter files, please contact us.
