Welding & Bending Machine WeiForm Pro 1500
- Model
- WeiForm Pro1500
Item specifics
- Maximum Working Width
- 1500 mm
- Welding Thickness
- 3-15 mm
- Bending Thickness
- 3-15 mm
- Bending Angle:
- 5°-95°
- Standard Applied
- DVS2207
- Weldable Materials
- PE, PP, PVDF, PVC, ABS etc
- Certificate
- CE
Review
Description
Detail Information

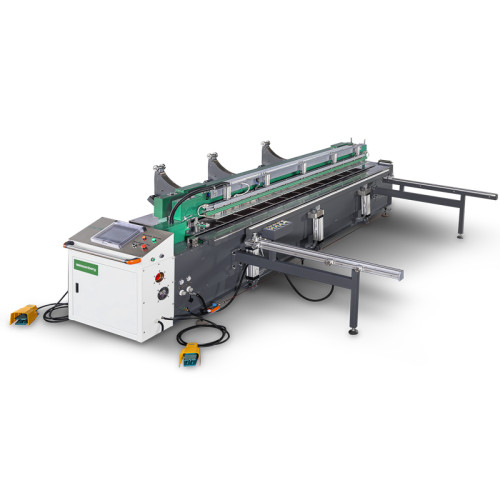

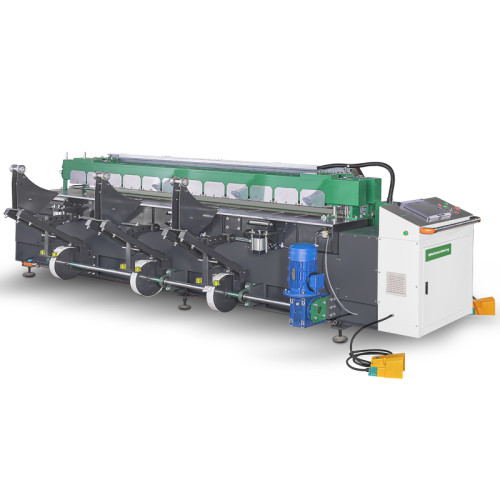

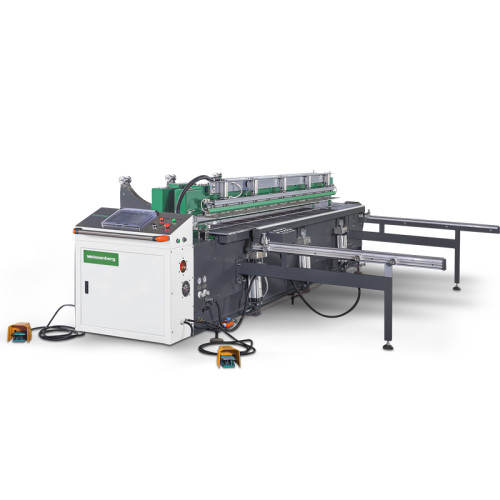

Welding & Bending Machine WeiForm Pro 1500 Introduction
WeiForm Pro1500 is designed for precise and efficient fabrication of thermoplastic sheets up to 1500 mm wide. Combining flat welding, 5°–95° bending, and roll bending in a single system, it is ideal for producing tanks, ducts, and structural components in compact spaces. Equipped with a Mitsubishi PLC and digital temperature control, it ensures smooth operation and consistent results for PP, PE, and PVDF materials.
Welding & Bending Machine WeiForm Pro 1500 Features
Welding & Bending Machine WeiForm Pro 1500 Technical Parameters
| Product model | WeiForm Pro1500 |
| Maximum Working width | 1,500mm |
Machine Length | 2,150mm |
Machine width | 1,350mm |
Machine height | 1,200mm |
Welding Thickness | 3-15mm |
Bending Thickness | 3-15mm |
Bending Angle | 5°-95° |
| Power supply | 230V 50/60 Hz |
| Power consumption | 3+2.2*2KW |
Compressed Air Connection | 4-8bar |
Max. HeatingTemperature | 260°C |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
