Pipe Band Saw TPS630

Model: TPS630

Item specifics

Cutting Range in mm: 200- 630 mm

Rated Power: 3.7KW

Line Speed: 0 - 255M/MIN

Space Occupation: 560CM * 560CM

Certificate: CE, ISO9001

Materials: HDPE - PP - PPR - PVDF - PVC

Review

Description

Detail Information

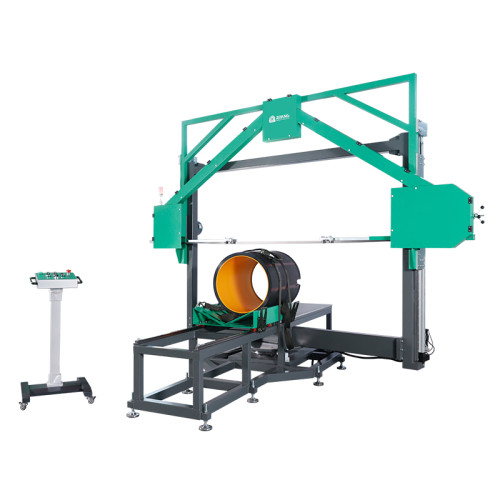

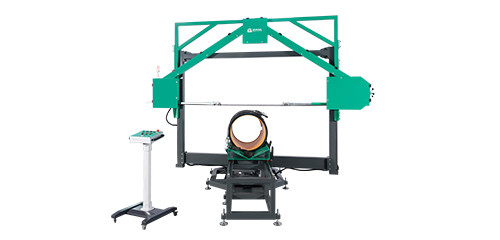

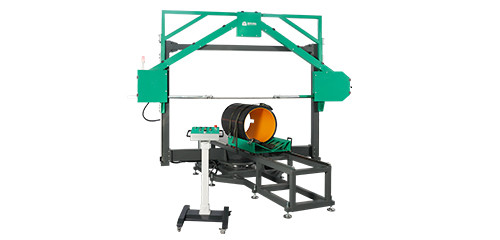

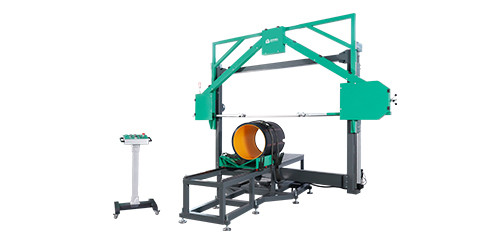

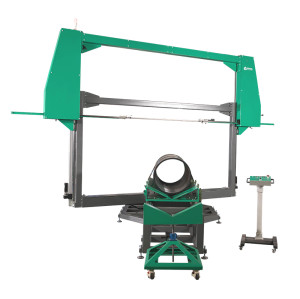

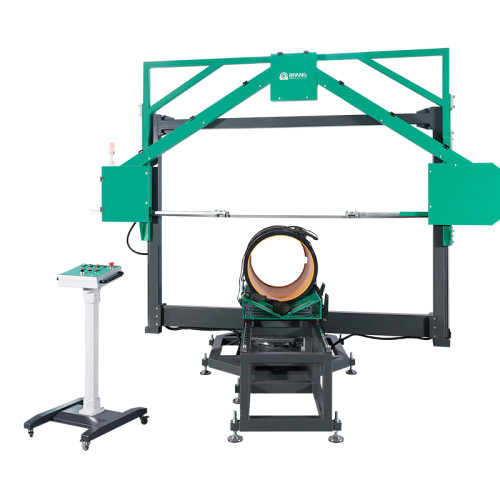

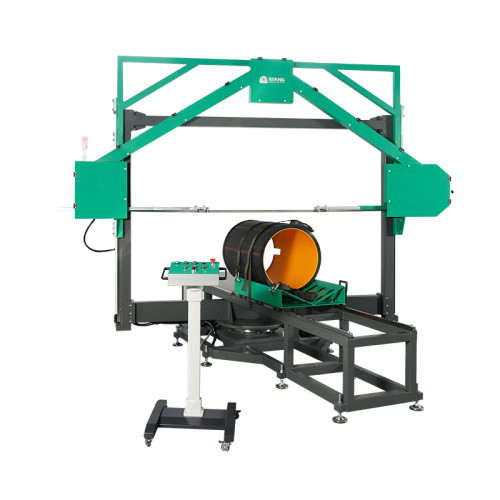

Pipe Band Saw TPS630 Introduction

The TPS630 is a hydraulic workshop band saw for cutting thermoplastic pipes (HDPE, PP, PVDF, PPR, PVC) from 200mm to 630mm, featuring a manually rotatable body with adjustable cutting angles (0°–67.5°), automatic saw movement with speed control via a mobile control panel, and secure pipe clamping using heavy-duty tie-down straps—ideal for pairing with the ATLA fitting fabrication machine.

Pipe Band Saw TPS630 Features

Adjustable & Versatile Cutting

Supports 200–630mm thermoplastic pipes with precise angle adjustment from 0° to 67.5°, ideal for various fitting fabrication needs.

Safe & User-Friendly Control

Mobile control panel enables remote operation, allowing users to adjust saw movement and cutting speed while staying safely away from the cutting area.

Stable & Slip-Free Clamping

Manual clamping with heavy-duty tie-down straps ensures firm, slip-free fixation during cutting for greater stability and accuracy.

Pipe Band Saw TPS630 Technical Parameters

Product model	TPS630
Cutting Range O.D.	200-630mm
Rated Power	3.7KW
Line Speed	0 - 255M/MIN
Space Occupation	560CM * 560CM
MAX. Cutting Angle	67.5º

Power supply	380VAC, 3 PHASE, 50/60HZ
Packing Material	Plywood Box

* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.

File Downloads

For more product related parameter files, please contact us.
