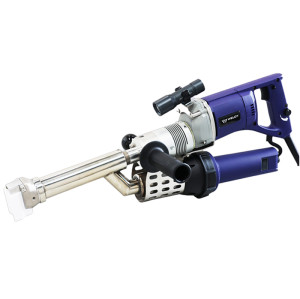

Weldy Extrusion Welder EX2
- Model
- Booster EX2
Item specifics
- Article
- 146.738
- Welding Rod
- 0 3-4mm/0.12-0.16 in
- Material output ø 3 mm
- 1.5 kg/h
- Material output ø 4 mm
- 2.2 kg/h
- Weldable sheet/membrane thickness
- 10 - 15 mm
- Weight
- 6.4 kg
- Approvals
- CE; UKCA
Review
Description
Detail Information

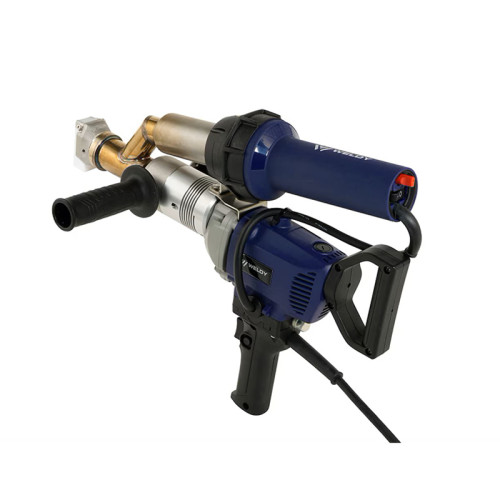

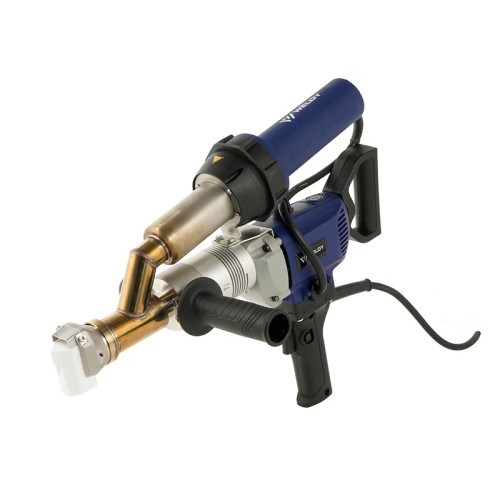

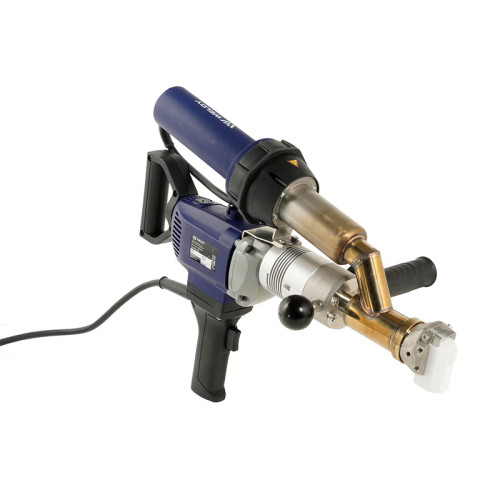

Weldy Extrusion Welder EX2 Introduction

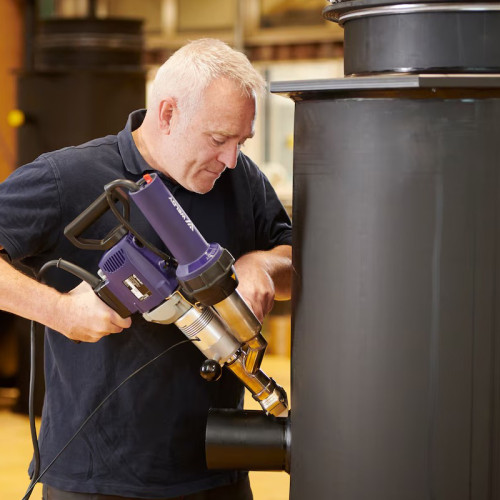

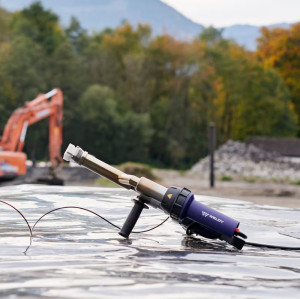

The Weldy Booster EX2 is a compact, lightweight extrusion welder designed for plastic fabrication and repairs. Suitable for materials like PE and PP, it offers excellent performance in tight spaces and on-site jobs. With its brushless blower motor and ergonomic design, the EX2 provides stable output, low noise, and easy handling, making it ideal for tanks, containers, and plastic piping work.
Weldy Extrusion Welder EX2 Features

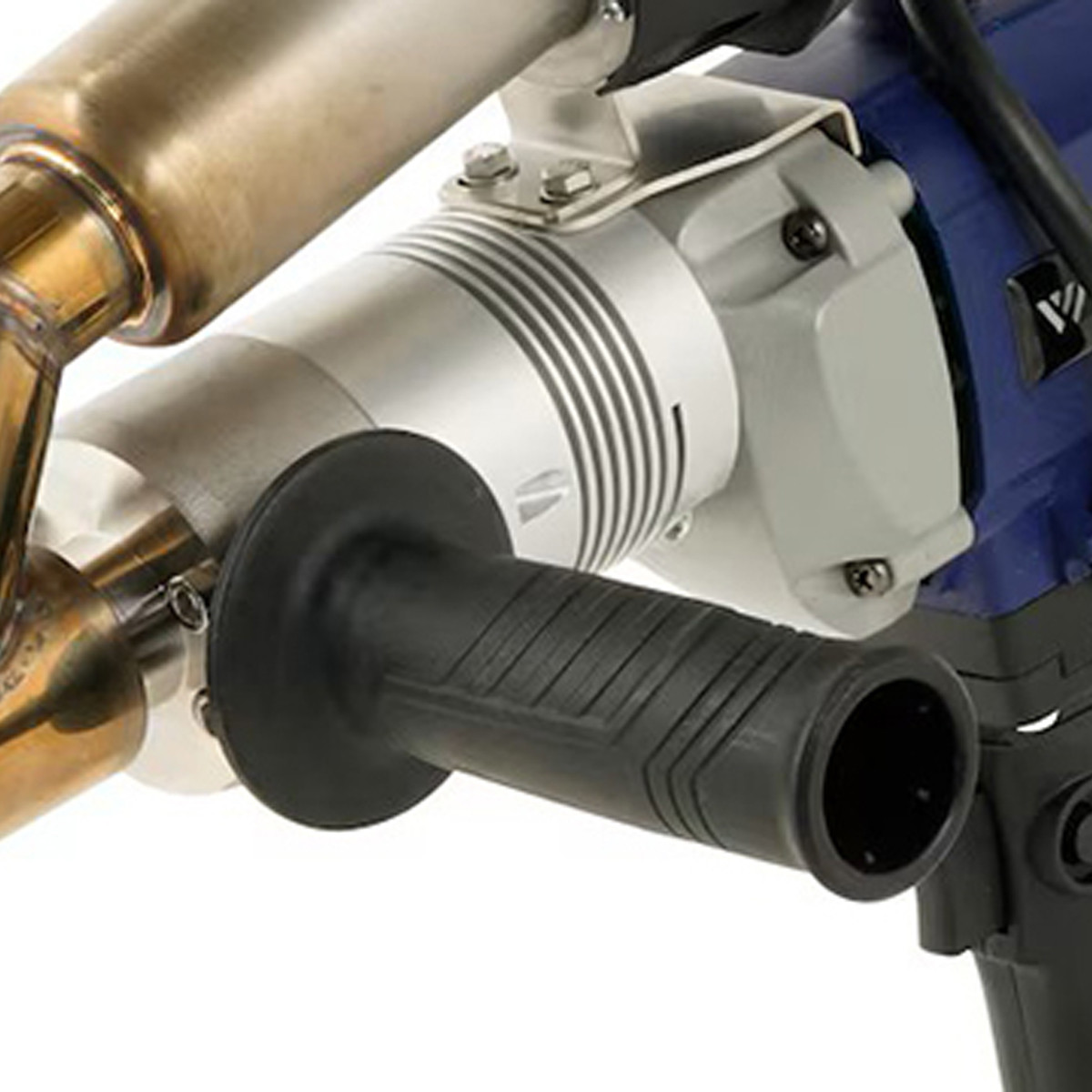

An additional handle that fits on the side
This extrusion welding gun features an additional handle on the side, offering extra support, reducing fatigue, and enhancing stability and welding precision for extended and precise operations.

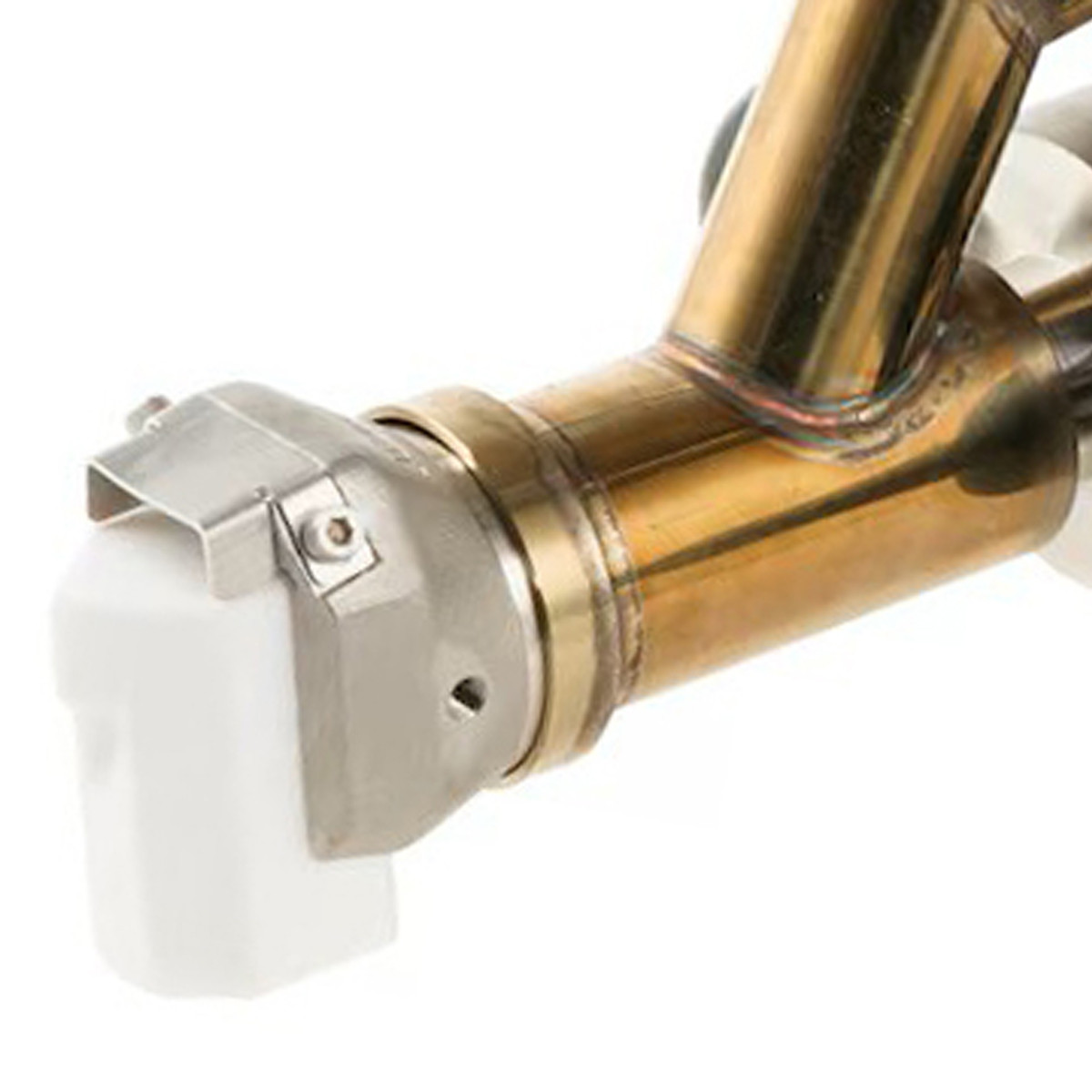

360° rotating welding shoes
This extrusion welding gun features a 360° rotating weldingshoe, offering more flexible operation and allowing users to adjust angles as needed,enhancing welding precision and efficiency.
Weldy Extrusion Welder EX2 Technical Parameters
| Article | 146.738 |
| Voltage | 230 V |
Frequency | 50/60 Hz |
Power | 3000 W |
Welding rod | ø 3–4 mm / 0.12–0.16 in |
Material output ø 3 mm | 1.5 kg/h |
Material output ø 4 mm | 2.2 kg/h |
| Welding materials | HDPE; LDPE; LLDPE; PP |
| Weldable sheet/membrane thickness | 10 - 15 mm |
Weight | 6.4 kg |
Plug | EU, 2 poles, 16A |
Approvals | CE; UKCA |
* Parameters are measured under standard operating conditions and may vary in actual use.
* If you notice any issues or need help adjusting the parameters, feel free to contact us.
