HDPE Water Pipe Butt Fusion: Key Advantages & Benefits

This paper systematically discusses the technical advantages of butt fusion technology in joining HDPE potable water pipelines (DN63-DN1200). Through comparative experimental data and engineering case studies, it is demonstrated that this technology can significantly improve the sealing performance, durability, and cost-effectiveness of pipeline systems, fully meeting the stringent requirements of modern water supply systems.

Technical Principles and Process Characteristics

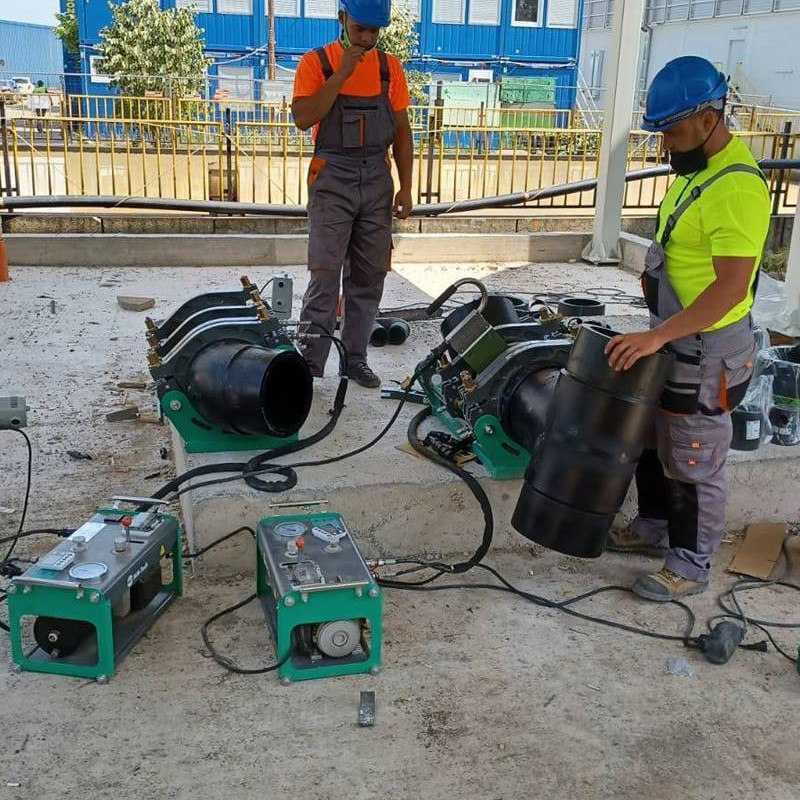

[caption id="attachment_19953" align="alignnone" width="1440"] butt fusion machine[/caption]

Butt fusion employs heated plate technology, achieving complete molecular chain diffusion and recrystallization through precise control of heating plate temperature (210±5°C), fusion pressure (0.02-0.15N/mm²), and changeover time (≤5s). The process features:

• Homogeneous weld formation with tensile strength reaching 92-98% of base material (ASTM D638)
• Weld crystallinity deviation <5% from base material (DSC test results)
• Controlled oxidation layer thickness at 0.1-0.3μm

Key Performance Advantages

1 Structural Integrity

• Burst tests indicate failure consistently occurs in the base material (EN 12814-2)
• No fatigue cracks observed after 10,000 pressure cycles (0-1.6MPa)
• Weld zone impact toughness retention >85% (Charpy test, 23°C)

2 Sanitary Safety

• Microbial adhesion tests show 2 orders of magnitude lower bacterial growth vs mechanical joints
• VOC emission <0.1μg/L (GB/T 17219)
• No production of harmful byproducts like BPA

Engineering Adaptability Innovations

1 Special Condition Solutions

• Arctic regions: Preheating + stepped cooling (-30°C capability)
• Underwater: Dual-seal welding chamber (10m max depth)
• Non-standard pipes: Adaptive hydraulic system for SDR7.4-SDR26

2 Smart Technology Integration

• 4th Generation Machines feature:
  • IR thermal imaging QC system
  • AI parameter optimization
  • 5G remote diagnostics

Standards Compliance

Certified to:

• ISO 21307:2017 Plastics piping systems
• NSF/ANSI 61 Drinking water components
• GB/T 13663.2-2018 PE water supply standards

Conclusion

With superior sealing performance, excellent sanitary standards and significant economic benefits, butt fusion has become the preferred joining method for modern HDPE water supply systems. Continued smart technology development will further advance pipeline engineering quality.

References
[1] Plastics Pipe Institute. Handbook of Polyethylene Pipe[M]. 2018.
[2] ISO 21307:2017, Plastics piping systems...[S].
[3] China Municipal Engineering Association. Plastic Pipeline Construction Code[T]. 2020.
